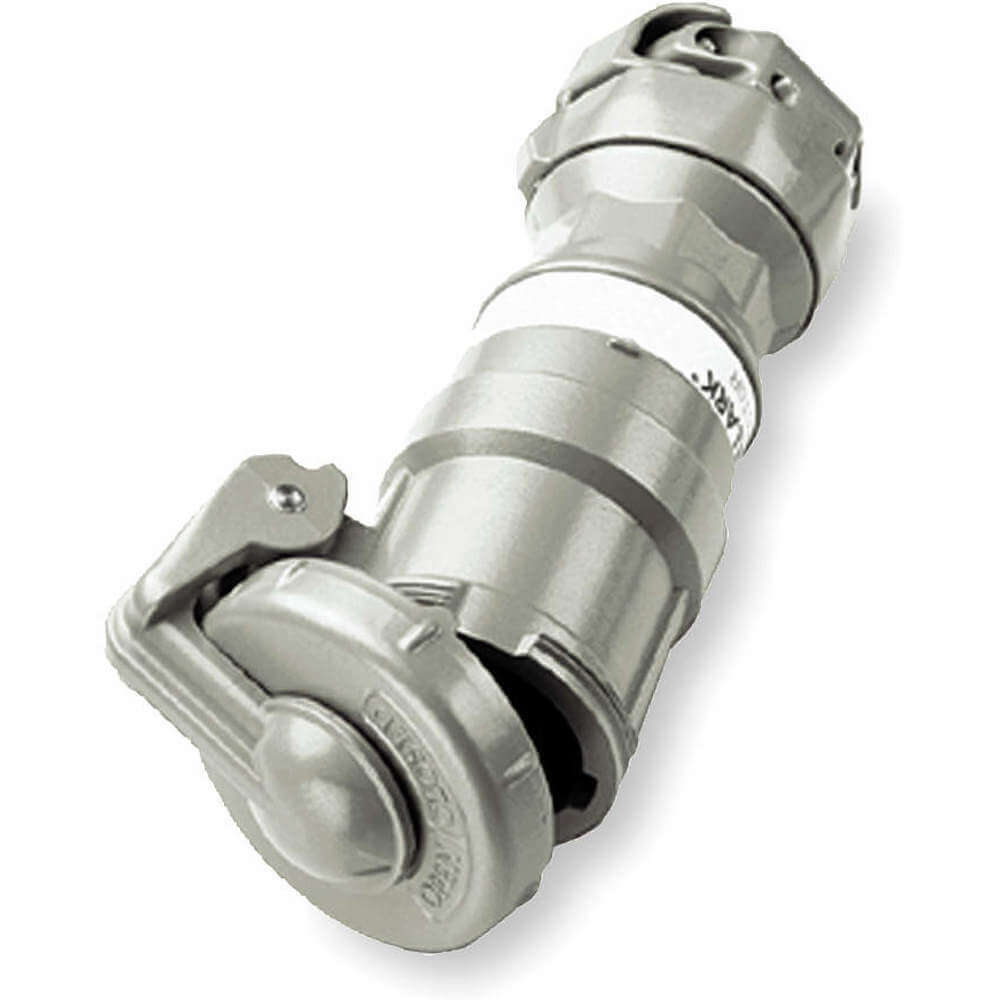

KILLARK VPR10467 Pin Sleeve Connector 100A 4P 3W 600VAC/250VDC
Item: AH2PXUModel: VPR10467Cross Ref: 2NVU2
7 In Stock
Ships within 2 days via
13.00% off
€1,243.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pin and Sleeve Connector |
| Amps | 100A |
| Cap Type | Flip Up, Screw On Cap |
| Compatible With Series | Versamate |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Features | Increased Safety Type Box Terminals With Gripper Ribs Securely Clamp Conductors, Octagonal Body Style, Suitable For Type P Marine Cable |
| Finish | Epoxy Coating |
| For Environment | Cold, Corrosive, Hazardous Location, Washdown, Wet |
| For Location | Indoor, Outdoor |
| For Max. Cable Dia. | 1.68" |
| For Min. Cable Dia. | 0.88" |
| Grounding | Grounded |
| Grounding Style | Style 2 |
| Hazardous Location Specification | Class I, Div 1 And 2, Group B, C, D, Class Ii, Div 1 And 2, Group F, G, Class Iii, Div 1 And 2 |
| Housing Color | Gray |
| Housing Material | Copper Free Aluminum |
| Housing Material Finish | Baked Powder Epoxy Coated, Polyester Finish |
| Market | Industrial |
| Material | Copper Free Aluminum |
| Max. Wire Size | 2 AWG |
| Min. Wire Size | 4 AWG |
| Nema Enclosure Rating | NEMA 3, NEMA 4, NEMA 4X |
| No. Of Poles | 4 |
| No. Of Wires | 3 |
| Outside Dia. | 4.56" |
| Overall Length | 11.66" |
| Power Indicating Light | No |
| Product Datasheet | killark-vp6385.pdf |
| Resistance Properties | Corrosion Resistant |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| Voltage | 600V AC/250V DC |
| Wire Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 2.36 |
| Ship height (cm) | 11.58 |
| Ship length (cm) | 29.59 |
| Ship width (cm) | 11.58 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | No. Of Poles | Voltage | No. Of Wires | Grounding Style | Amps | Material | Housing Material | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

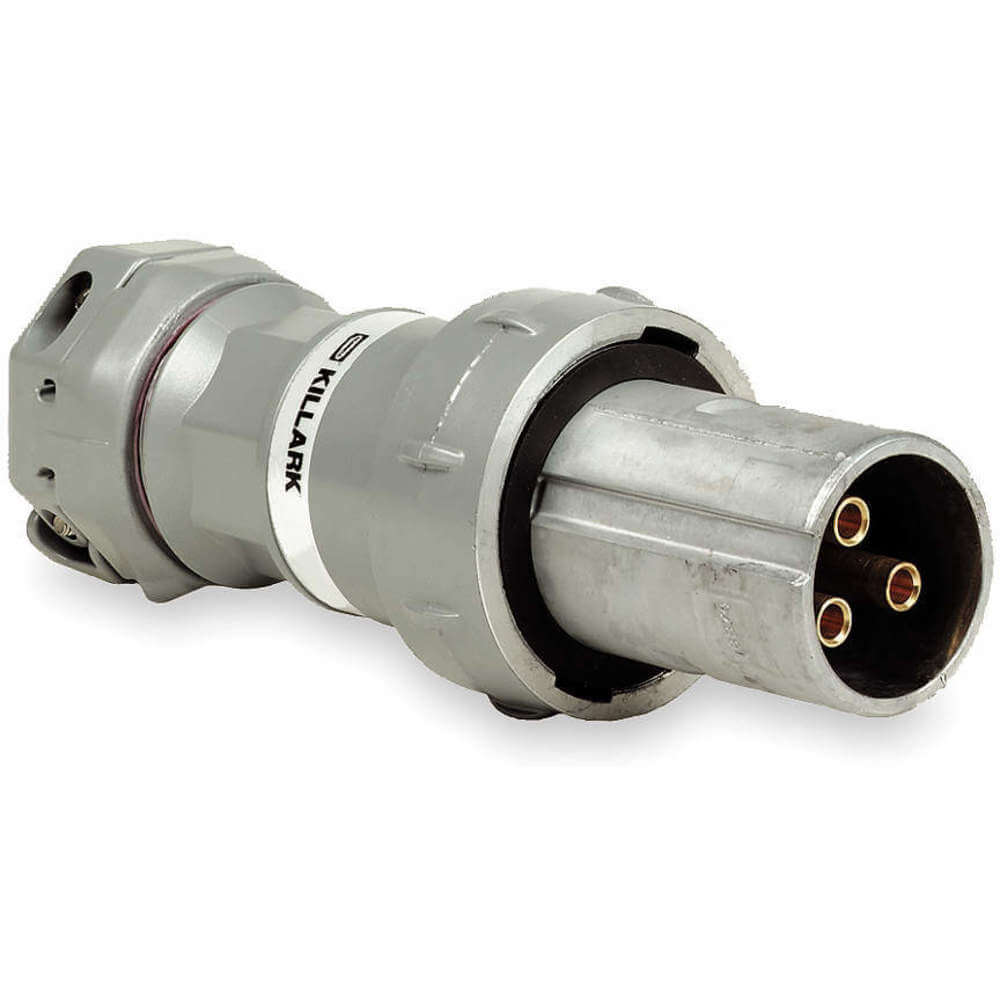

| VP10387 | 3 | 250V DC/600V AC | 2 | Style 2 | 100A | Copper Free Aluminum | Copper Free Aluminum | Epoxy Coating | €1,085.09 | |
| VPR10367 | 3 | - | 2 | - | 100A | Copper Free Aluminum | - | Epoxy Coating | €1,267.34 | |
| VPR10357 | 3 | 600V AC/250V DC | 3 | Style 1 | 100A | Copper Free Aluminum | Copper Free Aluminum | Epoxy Coating | €1,191.72 | |
| VPR10457 | 4 | 600V AC/250V DC | 4 | Style 1 | 100A | Copper Free Aluminum | Copper Free Aluminum | Epoxy Coating | €1,356.92 |
