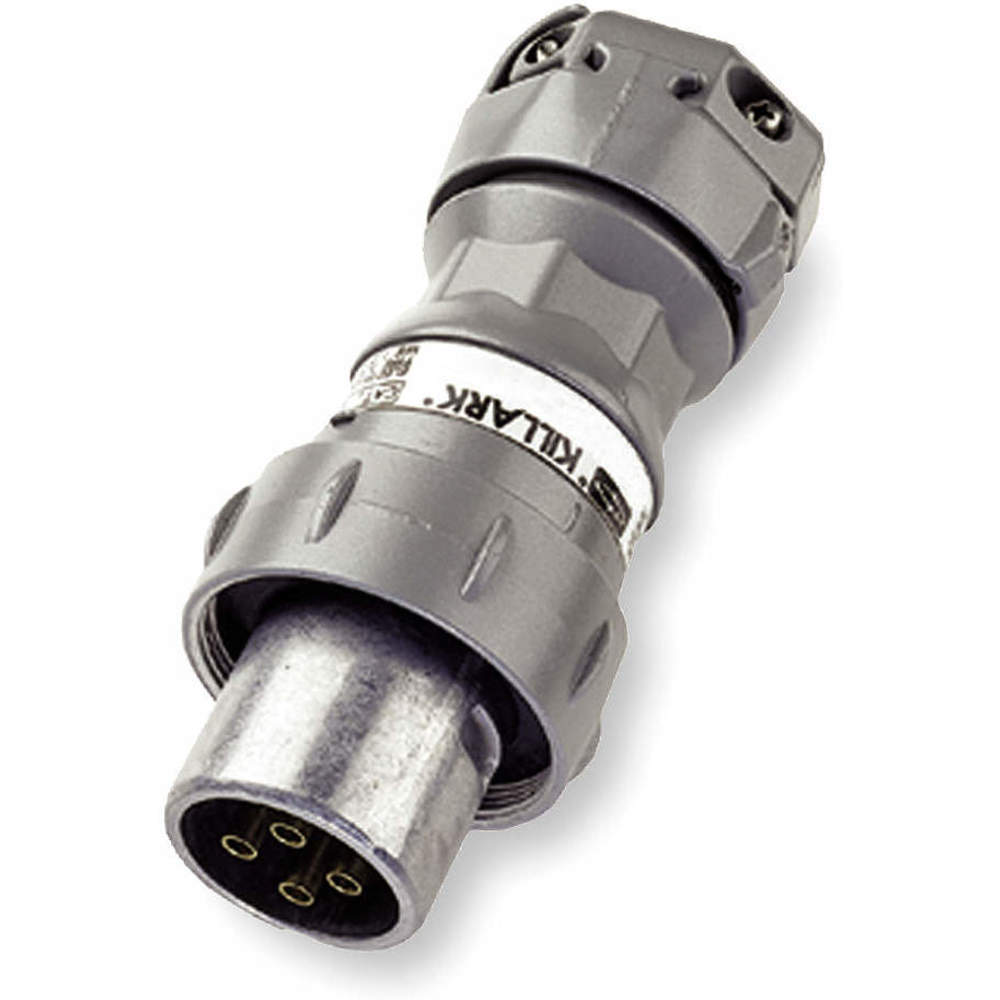

KILLARK VP6475 Pin Sleeve Plug 60A 4P 4W 600VAC/250VDC
Item: AH2PXAModel: VP6475Cross Ref: 2NVR1
7 In Stock
Ships within 2 days via
13.00% off
€711.82 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pin and Sleeve Plug |
| Amps | 60A |
| Connection Orientation | Straight |
| Face Dia. | 2.531" |
| Features | Box Terminals With Gripper Ribs Securely Clamp Conductors, Octagonal Body Style, Suitable For Type P Marine Cable |
| Finish | Epoxy Coating |
| Grounding | Grounded |
| Grounding Style | Style 1 |
| Hazardous Location Specification | Class I, Div 1 And 2, Group A, B, C, D |
| Housing Color | Gray |
| Housing Material | Copper Free Aluminum |
| Housing Material Finish | Baked Powder Epoxy, Polyester Coated |
| Ip Rating | Not Rated |
| Material | Copper Free Aluminum |
| Max. Wire Size | 2 AWG |
| Min. Wire Size | 6 AWG |
| No. Of Poles | 4 |
| No. Of Wires | 4 |
| Outside Dia. | 3.688" |
| Overall Length | 8.813" |
| Phase | 3 |
| Power Indicating Light | No |
| Product Datasheet | killark-vp6375.pdf |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| Voltage | 250V DC/600V AC |
| Wire Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 1.51 |
| Ship height (cm) | 9.35 |
| Ship length (cm) | 22.38 |
| Ship width (cm) | 9.35 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Amps | No. Of Poles | Phase | Max. Wire Size | Min. Wire Size | No. Of Wires | Grounding Style | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
VP3375 | 30A | 3 | 3 | 6 AWG | 10 AWG | 3 | Style 1 | Epoxy Polyester | €640.39 | |
 |
VP10377 | 100A | 3 | 3 | 2 AWG | 4 AWG | 3 | Style 1 | Epoxy Coating | €960.98 | |
|
VP10487 | 100A | 4 | 3 | 2 AWG | 4 AWG | 3 | Style 2 | Epoxy Coating | €1,182.70 | |
|
VP10477 | 100A | 4 | 3 | 2 AWG | 4 AWG | 4 | Style 1 | Epoxy Coating | €1,173.49 | |
 |

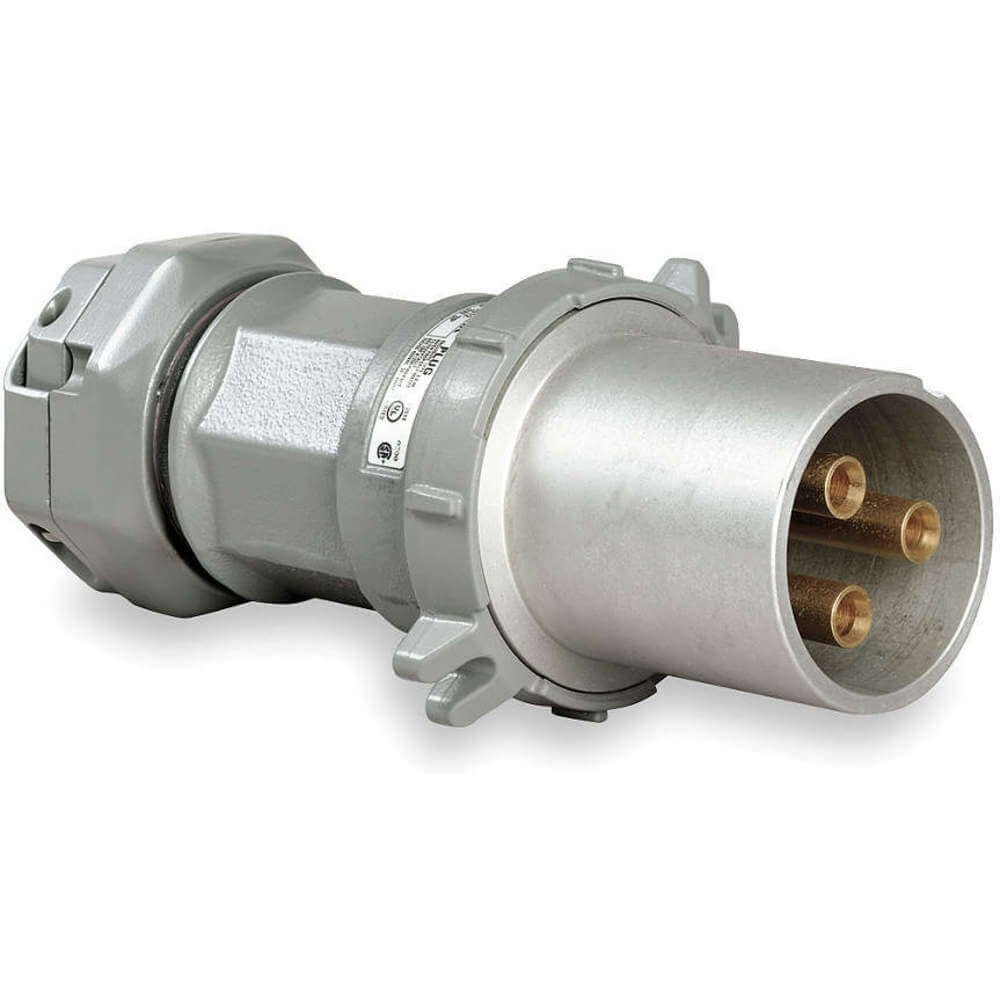

VP203612 | 200A | 3 | 1 | 1 AWG | 1 AWG | 2 | Style 2 | Epoxy Coating | €1,911.30 | |
|
VP204513 | 200A | 4 | 3 | 1 AWG | 1 AWG | 4 | Style 1 | Epoxy Coating | €1,722.86 | |
|
VP3485 | 30A | 4 | 3 | 6 AWG | 10 AWG | 3 | Style 2 | Epoxy Polyester | €656.57 |
