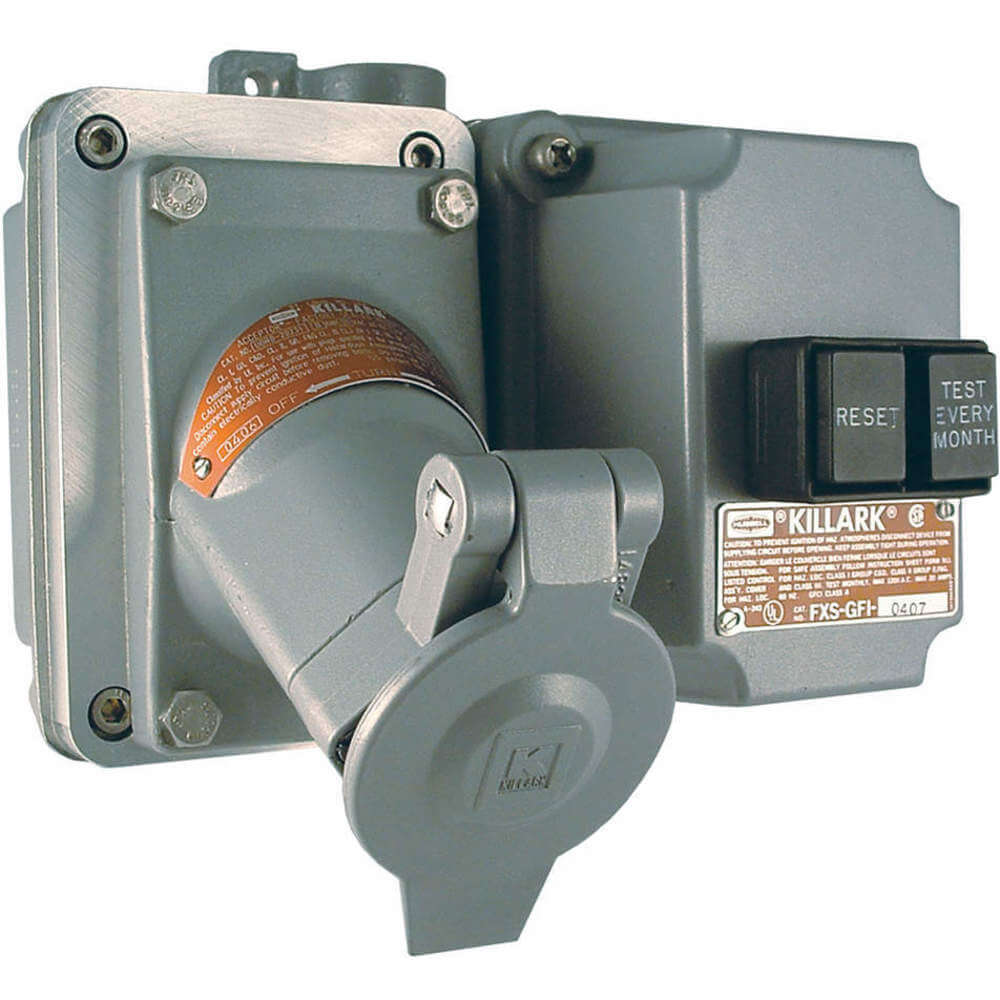

KILLARK UGRGF111 Hazardous Location Gfci Recept 120v 5-20r Feed Thru
Item: AA2JZHModel: UGRGF111Cross Ref: 10N035
7 In Stock
Ships within 2 days via
€2,614.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hazardous Location GFCI Receptacle |
| Amps | 20A |
| Circuit Breaker | Yes |
| Finish | Epoxy Polyester |
| Gfci | Yes |
| Hazardous Location Specification | Class I, Div 1 And 2, Group C, D, Class II, Div 1 And 2, Group F, G, Class III, Div 1 And 2 |
| Housing Material | Copper Free Aluminum |
| Hub Dia. | 3/4" |
| Hub Type | Feed Through |
| Material | Copper Free Aluminum |
| Nema Enclosure Rating | NEMA 3, NEMA 7CD, NEMA 9FG |
| Nema Rating | NEMA 3, NEMA 7C, NEMA 7D, NEMA 9E, NEMA 9F, NEMA 9G |
| Nema Receptacle Configuration | NEMA 5-20R |
| Nema Type | NEMA 5-20R |
| Nema Type | 5-20R |
| No. Of Gangs | 2 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Product Datasheet | killark-ugrgf111.pdf |
| Resistance Properties | Weather Resistant |
| Screws | Stainless Steel |
| Standards | Ul 943 |
| Voltage | 125V AC |
Shipping Info:
| Ship weight (kg) | 3.38 |
| Ship height (cm) | 24.46 |
| Ship length (cm) | 47.63 |
| Ship width (cm) | 18.42 |
| HS code | 8536698000 |
| Country of Origin | US |
Product Details:
- Feed-Thru Hub (In.) (3/4)
Documentation:
Product Variants
| Product | Model | Amps | Voltage | Nema Type | Screws | Hub Dia. | Price | |
|---|---|---|---|---|---|---|---|---|
 |

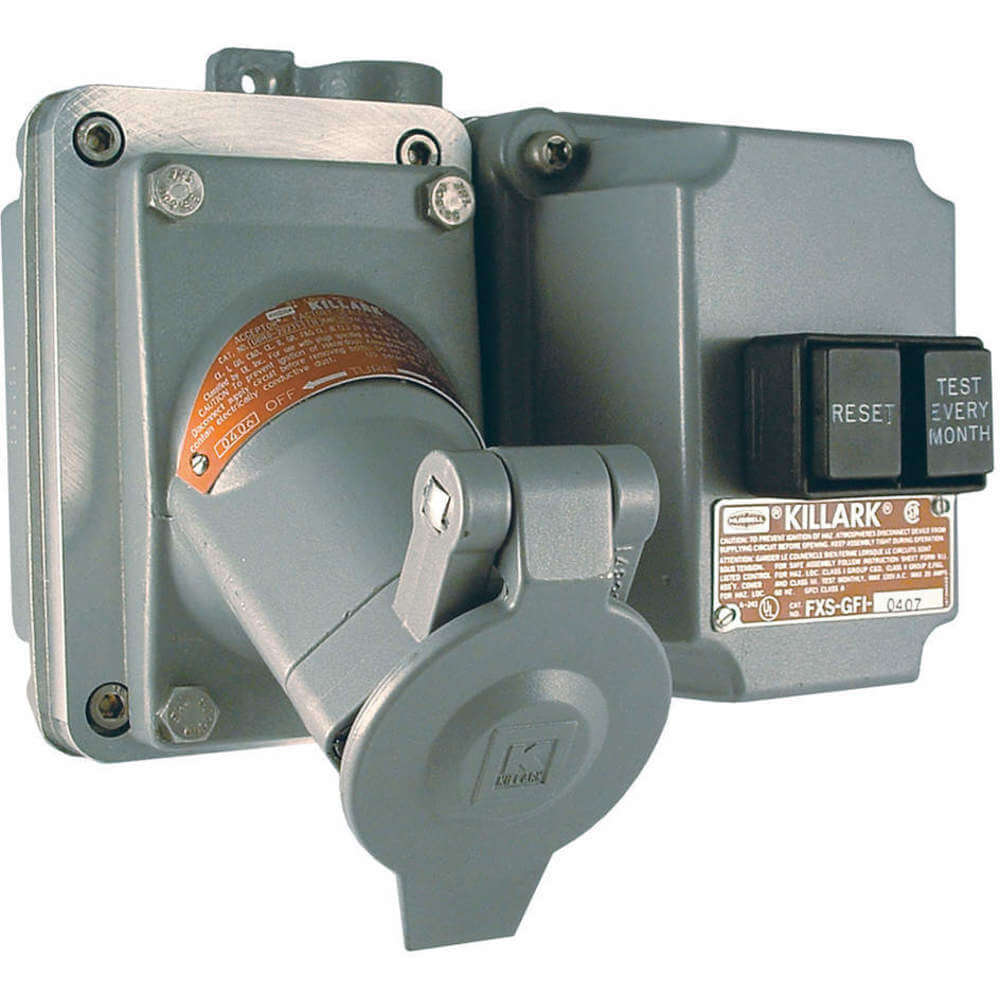

UGRGF108WW | 20A | 125V AC | NEMA 5-20R | Stainless Steel | 3/4" | €2,552.85 |
