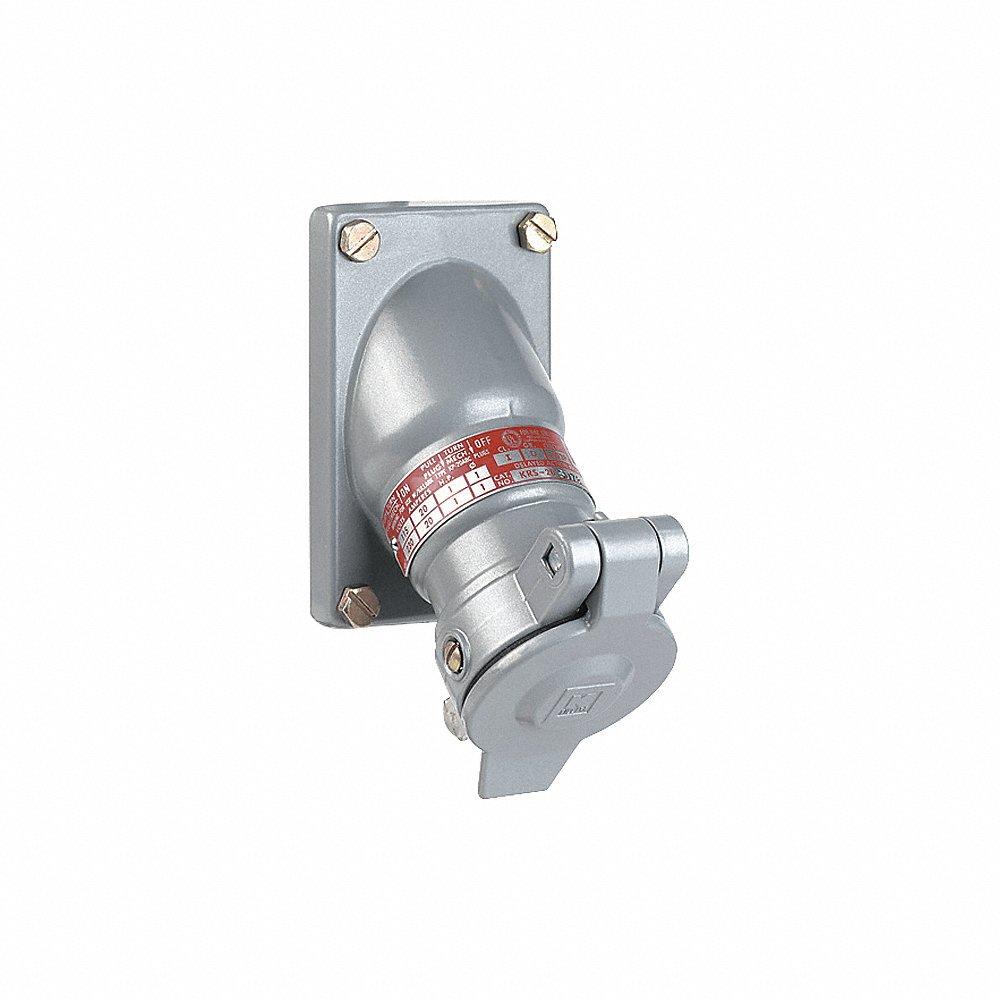

KILLARK KRS-20 Pin And Sleeve Receptacle, 20A, 2 Poles, 3 Wires, Copper Free Aluminum
Item: CJ3AABModel: KRS-20Cross Ref: 54DG49
7 In Stock
Ships within 2 days via
13.00% off
€1,124.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pin and Sleeve Receptacle |
| Amps | 20A |
| Cap Type | Flip Up Cap |
| Connection Orientation | Straight |
| Features | Delayed Action Contacts, Wire Leads For Termination |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | Style 2 |
| Hazardous Location Specification | Class I, Div 1 And 2, Group C, D |
| Housing Color | Gray |
| Housing Material | Copper Free Aluminum |
| Housing Material Finish | Powder Coated |
| Hub Dia. | 3/4" |
| Included Mounting Hardware | Yes |
| Ip Rating | Not Rated |
| Mounting Box Entry | Feed Through |
| Nema Enclosure Rating | NEMA 3, NEMA 4, NEMA 4X, NEMA 7BCD, NEMA 9FG |
| No. Of Gangs | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Phase | 1 |
| Power Indicating Light | No |
| Product Datasheet | killark-krs-20.pdf |
| Reverse Service | No |
| Shrouded | Yes |
| Voltage | 115/230V AC |
| Wire Connection Type | Wire Lead |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Documentation:
Product Variants
| Model | Voltage | No. Of Poles | No. Of Wires | Hub Dia. | Mounting Box Entry | Amps | Housing Material | Case Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| KRS-215-120 | 115/230V AC | 3 | 2 | - | - | 20A | Copper Free Aluminum | - | €1,598.74 | |
| KRS-218-220 | 115/230V AC | 3 | 2 | 3/4" | Dead End | 20A | Copper Free Aluminum | - | €1,563.82 | |
| KRS-218-320 | 115/230V | 3 | - | - | - | - | - | Metallic | €1,584.39 | |
| KRS-215-320 | 115/230V AC | 3 | 2 | 1" | Dead End | 20A | Copper Free Aluminum | - | €1,583.08 | |
| KRS-215-220 | 115/230V AC | 3 | 2 | 1" | Dead End | 20A | Copper Free Aluminum | - | €1,561.61 |
