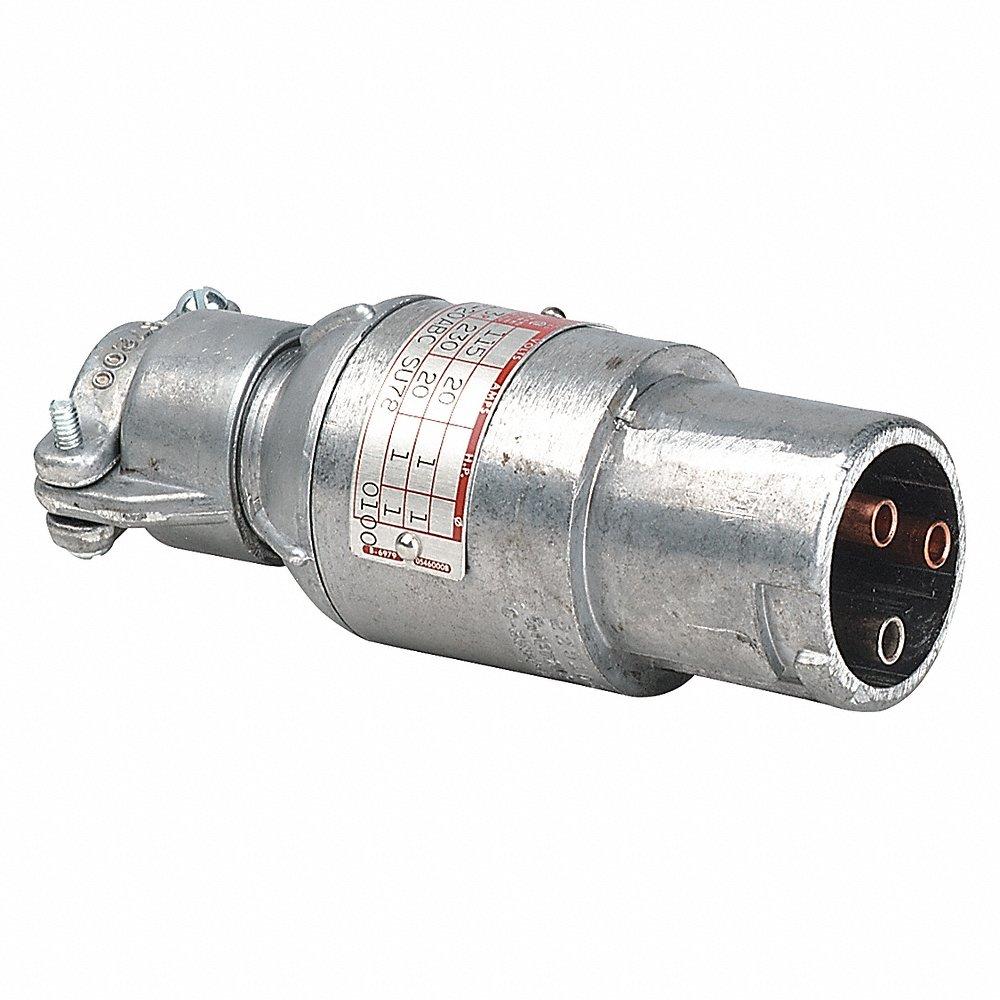

KILLARK KP-20ABC Pin And Sleeve Plug, 20A, 2 Poles, 3 Wires, Copper-Free Aluminum, 120/240V AC
Item: CJ2ZZVModel: KP-20ABCCross Ref: 36D191
7 In Stock
Ships within 2 days via
10.00% off
€931.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pin and Sleeve Plug |
| Connection Orientation | Straight |
| Current Rating | 20A |
| Features | Kp Series Plugs Are Suitable:" Hazardous Locations Due To The Presence Of Flammable Vapors Or Gases |
| For Maximum Cable Diameter | 0.625" |
| For Minimum Cable Diameter | 1/4" |
| Grounding | Grounded |
| Grounding Style | Style 2 |
| Hazardous Location Specification | Class I, Div 1 And 2, Group C, D |
| Horsepower Rating | 1 hp |
| Housing Color | Gray |
| Housing Material | Copper Free Aluminum |
| Housing Material Finish | Unfinished |
| Ip Rating | Not Rated |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 14 AWG |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outside Diameter | 1.875" |
| Overall Length | 6.375" |
| Phase | Single |
| Power Indicating Light | No |
| Reverse Service | No |
| Shrouded | Yes |
| Standards | Csa Certified Lr14667, Ul E23572 |
| Switch Rated | No |
| Voltage Rating | 115/230V AC |
Shipping Info:
| Ship weight (kg) | 0.39 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Wires | Number Of Poles | Amps | Voltage | Current Rating | Phase | Hub Size | Nema Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

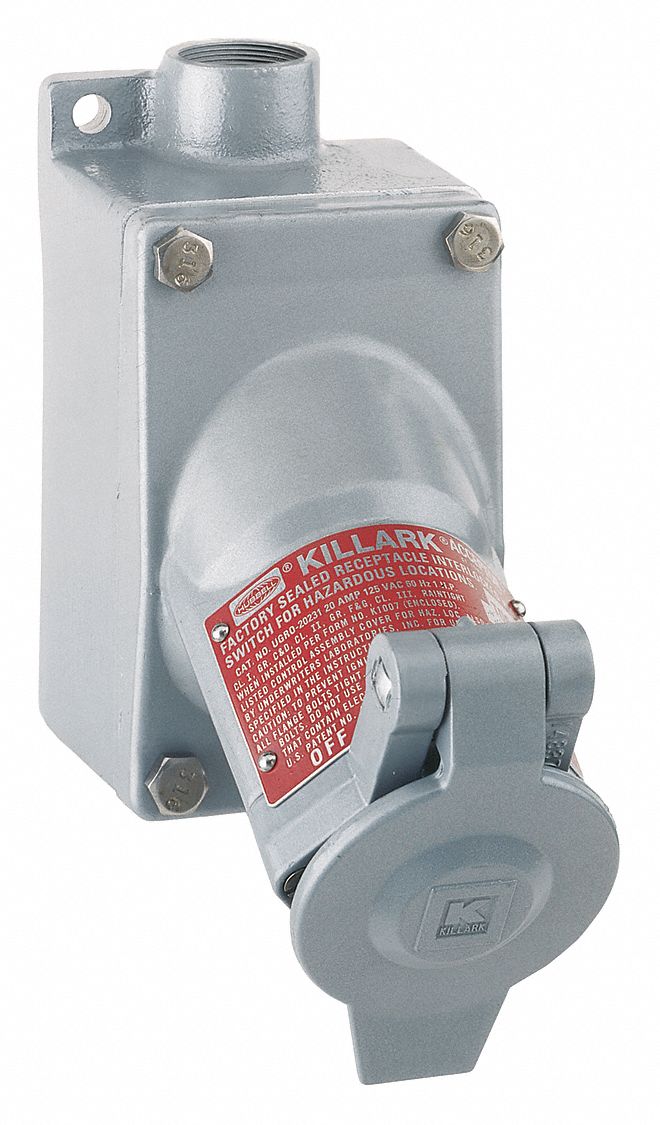

UGR4-20232QW | 3 | 2 | 20A | 250V AC | 20A | Single | 1/2" | NEMA 6-20R | €930.91 |
