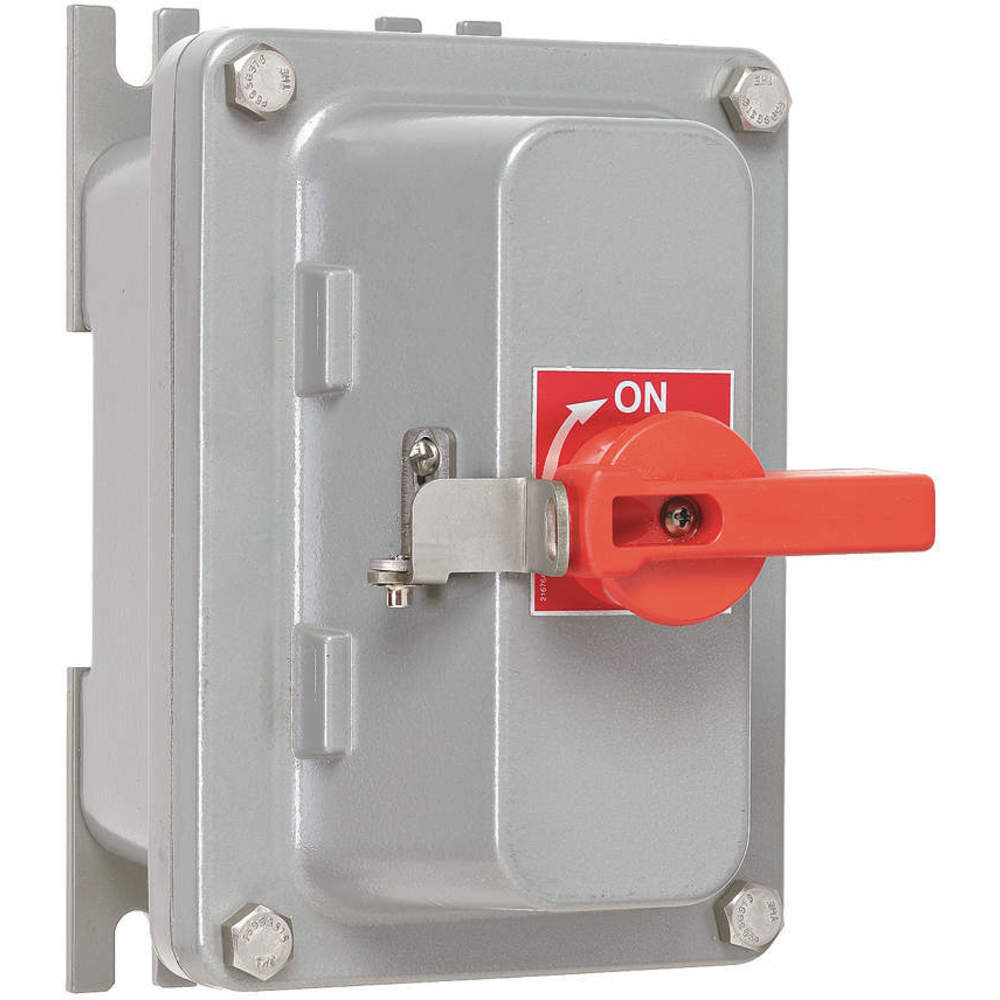

KILLARK B7NFD13A Hazardous Location Safety Switch 600VAC
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€3,724.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Safety Switch |
| Contact Form | 3PST |
| Current Rating | 30A |
| Depth | 6 1/4" |
| Duty | Heavy Duty |
| Environment | Indoor/Outdoor |
| Features | 316 Stainless Steel Cover Bolts, Gasketed Flange With Silicone O-Ring, Gray Powder Polyester Painted Exterior, Rotary Handle Operating Mechanism With Lockout |
| For Fuse Class | Not Applicable |
| Fusible / Nonfusible | Nonfusible |
| Height | 8" |
| Horsepower @ 480v Ac | 20 hp |
| Horsepower @ 600v Ac | 30 hp |
| Housing Material | Aluminum |
| Hp @ 240v Ac | 10 hp |
| Includes | Adder, Cutler Hammer Disconnect Switch |
| Includes Neutral Assembly | No |
| Material | Aluminum |
| Maximum Enclosure Depth | 5.06" |
| Nec 500 Hazardous Location Classifications | Class I, Division 1 & 2, Groups B, C, D, Class II, Division 1 & 2, Groups E, F, G, Class III, Division 1 & 2 |
| Nec 505/iec Hazardous Location Classifications | Class I, Zone 1 And 2, Groups Iib+H2, Iia |
| Nema Enclosure Rating | NEMA 3, NEMA 4, NEMA 4X, NEMA 7, NEMA 9 |
| Nema Rating | NEMA 3, NEMA 4, NEMA 4X |
| Neutral Assembly | Not Available |
| Neutral Assembly Included | No |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Phase | 3 |
| Protection Method | Non Fusible |
| Series | B7NFD Series |
| Standard Conduit Size | 1 1/2" |
| Voltage | 600V AC |
| Voltage Rating | 600V AC |
| Width | 5 3/4" |
Shipping Info:
| Ship weight (kg) | 5 |
| Ship height (cm) | 26.16 |
| Ship length (cm) | 26.42 |
| Ship width (cm) | 20.32 |
| Country of Origin | US |
Product Details:
- Fusible / Nonfusible : Nonfusible
- Neutral Assembly : Not Available
