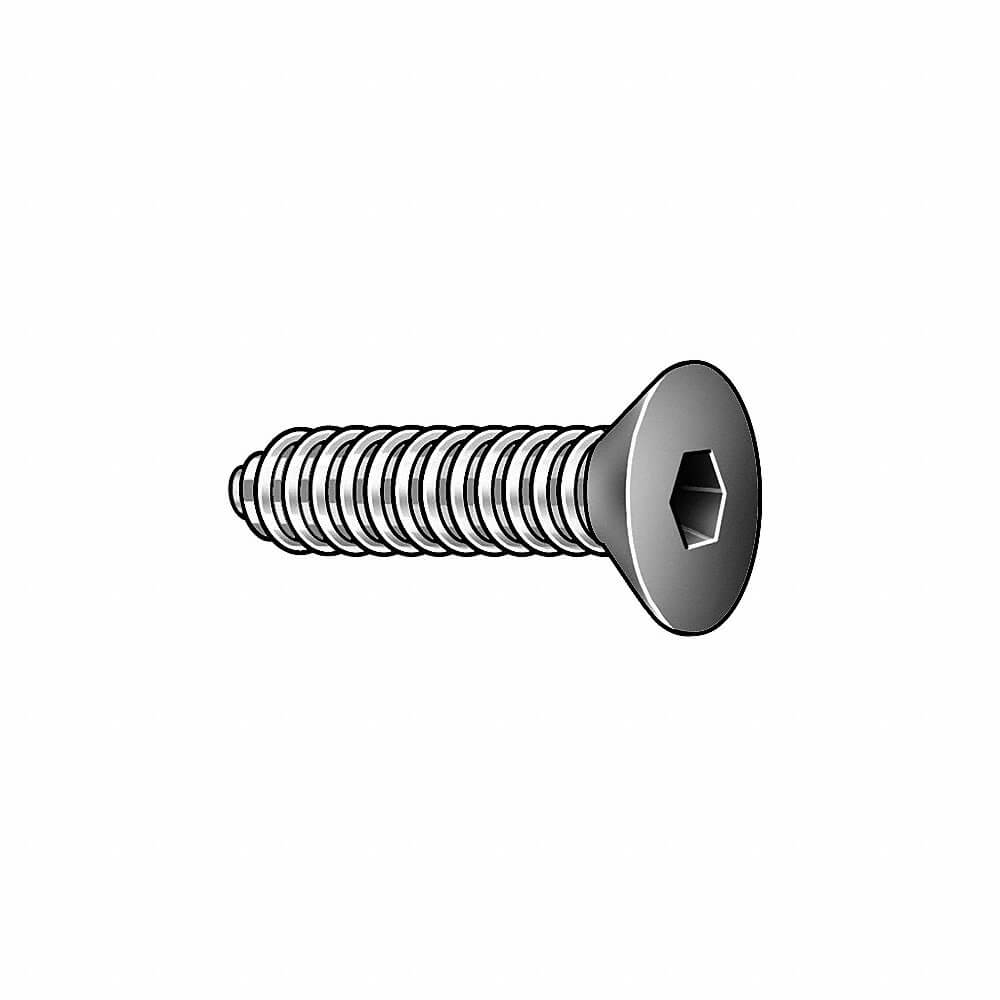

KERR LAKESIDE 5C75KFC Socket Head Cap Screw, 5-40 Thread Size, Flat, 3/4 In Lg., 0.09 In Head Ht., Steel
Item: AE4QTYModel: 5C75KFCCross Ref: 5MJP3
7 In Stock
Ships within 2 days via
10.00% off
€21.09 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Material & Grade | Grade Alloy Steel |
| Countersink Angle | 82° |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 100 |
| Drive Size | 5/64" |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C38-C43 |
| Head Dia. | 0.281" |
| Head Height | 0.09" |
| Head Type | Flat |
| Length | 3/4" |
| Material | Alloy Steel |
| Material Quality Standards | Astm A574 |
| Material Type | Steel |
| Maximum Temperature | 400°F |
| Min. Tensile Strength | 180000 psi |
| Minimum Temperature | -20°F |
| Minimum Thread Length | 3/4" |
| Screw Length | 3/4" |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +400°F |
| Tensile Strength | 180000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Length | 3/4" |
| Thread Size | #5-40 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.29 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 3.3 |
| HS code | 7318156040 |
| Country of Origin | US |
