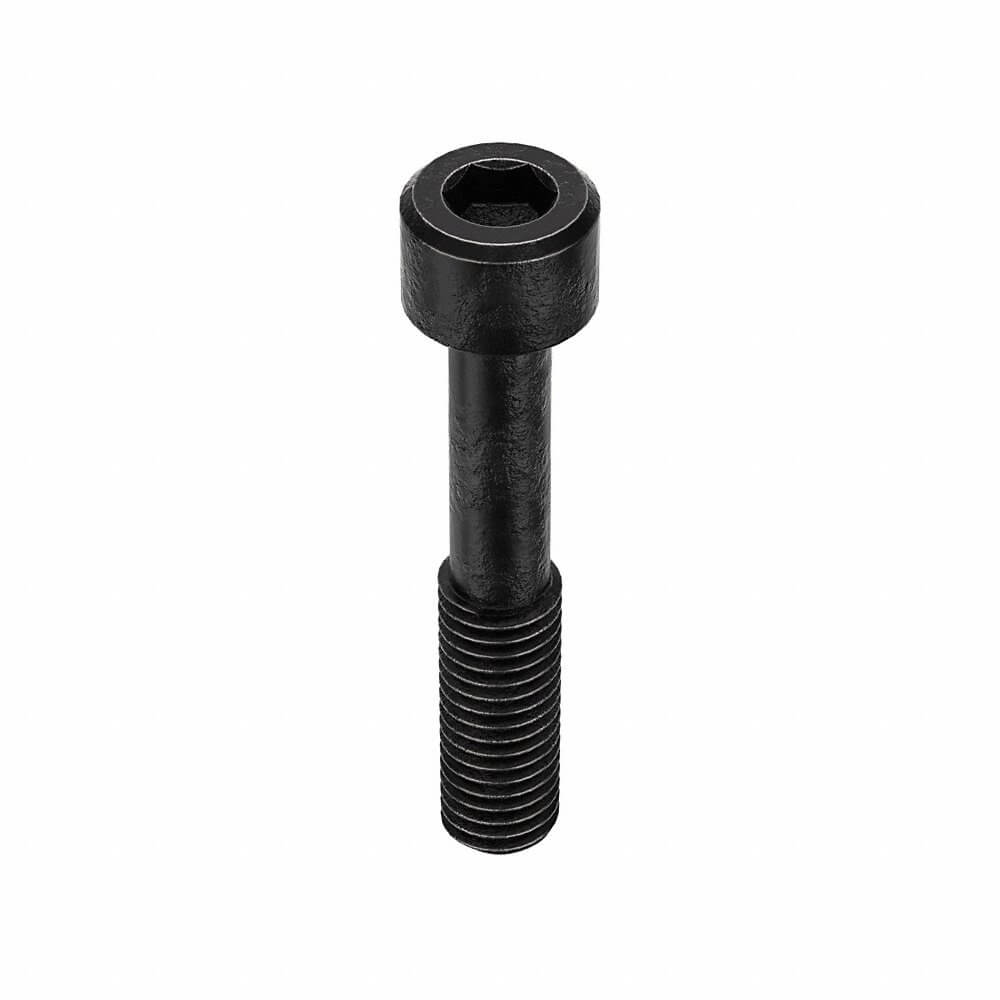

KERR LAKESIDE 50C275KCS Socket Head Cap Screw, 1/2 In - 13 Thread Size, Socket, 2 3/4 In Lg., 1/2 In Head Ht., Steel
Item: AE4QRDModel: 50C275KCSCross Ref: 5MJH1
7 In Stock
Ships within 2 days via
10.00% off
€69.42 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Material & Grade | Grade Alloy Steel |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 25 |
| Drive Size | 3/8" |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C38-C43 |
| Head Dia. | 3/4" |
| Head Height | 1/2" |
| Head Type | Standard |
| Length | 2 3/4" |
| Material | Alloy Steel |
| Material Quality Standards | Astm A574 |
| Material Type | Steel |
| Maximum Temperature | 400°F |
| Min. Tensile Strength | 180000 psi |
| Minimum Temperature | -20°F |
| Minimum Thread Length | 1 1/2" |
| Screw Length | 2 3/4" |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +400°F |
| Tensile Strength | 180000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Length | 1 1/2" |
| Thread Size | 1/2"-13 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 1.99 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 17.78 |
| HS code | 7318158045 |
| Country of Origin | US |
