FREE delivery on orders over €150

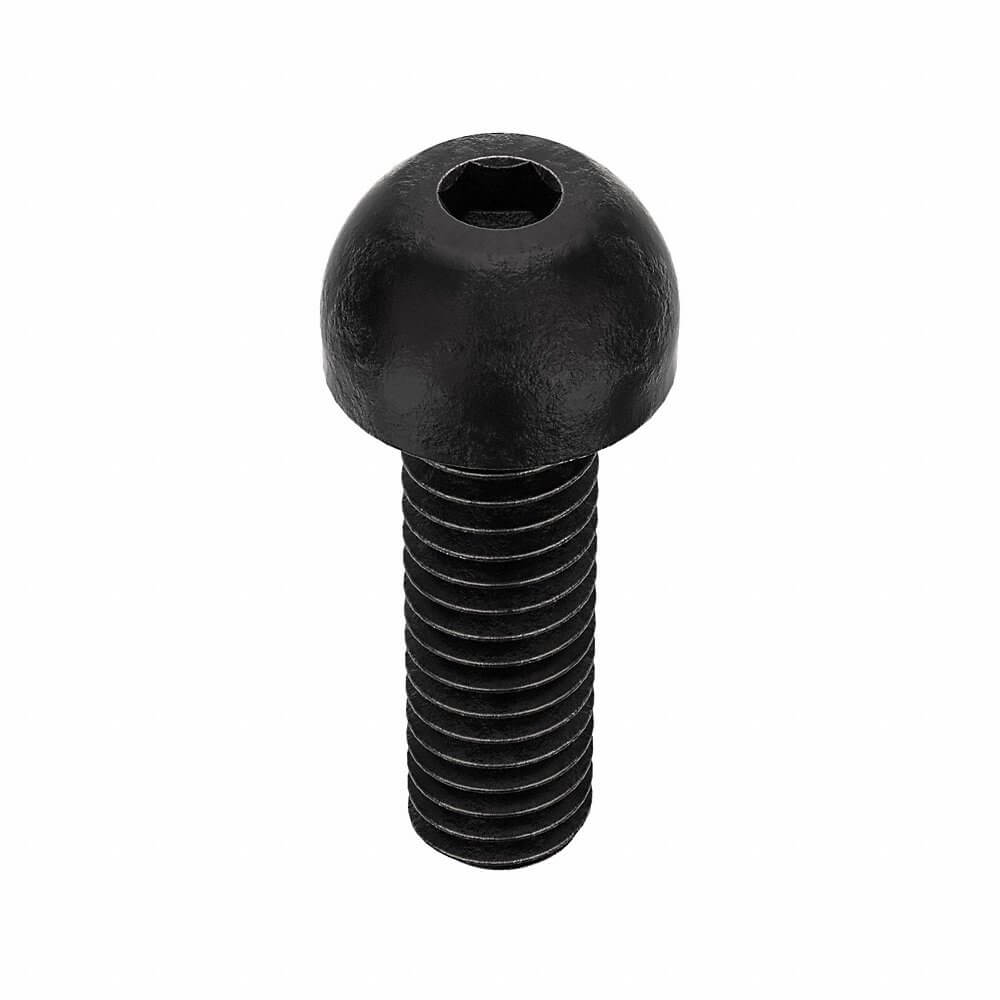

KERR LAKESIDE 31C100KBC Socket Head Cap Screw, 5/16 In - 18 Thread Size, Button, 1 In Lg., 0.166 In Head Ht., Steel, Blk Oxide
Item: AE4QXGModel: 31C100KBCCross Ref: 5MJZ1
7 In Stock
Ships within 2 days via
13.00% off
€39.76 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Material & Grade | Grade Alloy Steel |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 100 |
| Drive Size | 3/16" |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C38-C43 |
| Head Dia. | 0.547" |
| Head Height | 0.166" |
| Head Type | Button |
| Length | 1" |
| Material | Alloy, Steel |
| Material Quality Standards | Astm A574 |
| Material Type | Steel |
| Max. Temp. | 400°F |
| Min. Temp. | -20°F |
| Min. Tensile Strength | 180000 psi |
| Min. Thread Length | 1" |
| Screw Length | 1" |
| System Of Measurement | Imperial |
| Temp. | -20°F to +400°F |
| Tensile Strength | 180000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Length | 1" |
| Thread Size | 5/16"-18 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 11.43 |
| HS code | 7318158066 |
| Country of Origin | US |
Product Variants
| Product | Model | Head Dia. | Drive Size | Head Height | Min. Thread Length | Combined Material & Grade | Thread Length | Temp. | Material Quality Standards | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BHSIA0-60012-050P | 1/4" | 5/64" | 0.073" | 1/8" | Grade Steel | 1/8" | -65°F to +300°F | Astm F835 | 50 | €24.89 | |
 |
8C37KBC | 5/16" | 3/32" | 0.078" | 3/8" | Grade Alloy Steel | 3/8" | -20°F to +400°F | Astm A574 | 100 | €24.13 | |
 |
8C50KBC | 5/16" | 3/32" | 0.078" | 1/2" | Grade Alloy Steel | 1/2" | -20°F to +400°F | Astm A574 | 100 | €21.47 | |
 |
8C62KBC | 5/16" | 3/32" | 0.078" | 5/8" | Grade Alloy Steel | 5/8" | -20°F to +400°F | Astm A574 | 100 | €24.00 | |
 |
8C75KBC | 5/16" | 3/32" | 0.078" | 3/4" | Grade Alloy Steel | 3/4" | -20°F to +400°F | Astm A574 | 100 | €30.61 | |
 |
10C50KBC | 0.361" | 1/8" | 0.101" | 1/2" | Grade Alloy Steel | 1/2" | -20°F to +400°F | Astm A574 | 100 | €26.50 | |
 |
10C62KBC | 0.361" | 1/8" | 0.101" | 5/8" | Grade Alloy Steel | 5/8" | -20°F to +400°F | Astm A574 | 100 | €25.67 |
