FREE delivery on orders over €150

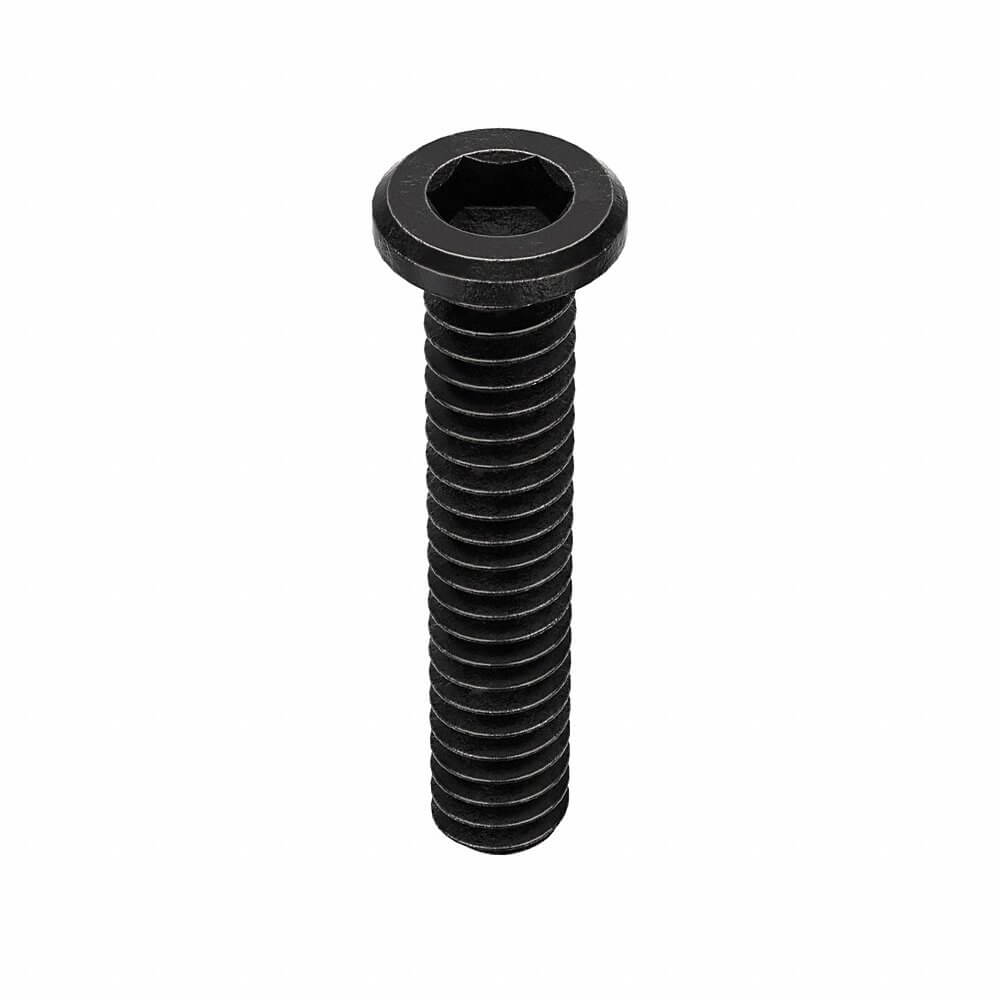

KERR LAKESIDE 10C100KCS Socket Head Cap Screw, 10-24 Thread Size, Socket, 1 In Lg., 0.19 In Head Ht., Steel
Item: AE4QNTModel: 10C100KCSCross Ref: 5MJA5
7 In Stock
Ships within 2 days via
13.00% off
€26.39 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Material & Grade | Grade Alloy Steel |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 100 |
| Drive Size | 5/32" |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C38-C43 |
| Head Dia. | 0.303" to 0.312" |
| Head Height | 0.19" |
| Head Type | Standard |
| Length | 1" |
| Material | Alloy, Steel |
| Material Quality Standards | Astm A574 |
| Material Type | Steel |
| Max. Temp. | 400°F |
| Min. Temp. | -20°F |
| Min. Tensile Strength | 180000 psi |
| Min. Thread Length | 1" |
| Screw Length | 1" |
| System Of Measurement | Imperial |
| Temp. | -20°F to +400°F |
| Tensile Strength | 180000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Length | 1" |
| Thread Size | #10-24 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.4 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 6.35 |
| HS code | 7318156040 |
| Country of Origin | US |
Product Variants
| Product | Model | Head Dia. | Drive Size | Head Height | Thread Style | Min. Thread Length | Combined Material & Grade | Thread Length | Temp. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
43F100KCS | 0.656" | 3/8" | 0.437" | Fully Threaded | 1" | Grade Alloy Steel | 1" | 0°F to +250°F | 100 | €118.42 | |
 |
M07000.060.0008 | 10 mm | 5 mm | 6 mm | Fully Threaded | 8 mm | Class 12.9 Steel | 8 mm | - | 100 | €32.15 | |
 |
M07000.060.0014 | 10 mm | 5 mm | 6 mm | Fully Threaded | 14 mm | Class 12.9 Steel | 14 mm | - | 100 | €22.12 | |
 |
U07000.007.0018 | 1/8" | 1/16" | 0.073" | Fully Threaded | 3/16" | Grade Steel | 3/16" | -58°F to +302°F | 1 | €44.54 | |
 |
U07000.007.0025 | 1/8" | 1/16" | 0.073" | Fully Threaded | 1/4" | Grade Steel | 1/4" | -58°F to +302°F | 100 | €45.50 | |
 |
U07000.007.0031 | 1/8" | 1/16" | 0.073" | Fully Threaded | 5/16" | Grade Steel | 5/16" | -58°F to +302°F | 100 | €43.83 | |
|
U07000.007.0037 | 1/8" | 1/16" | 0.073" | Fully Threaded | 3/8" | Grade Steel | 3/8" | -58°F to +302°F | 100 | €46.66 |
