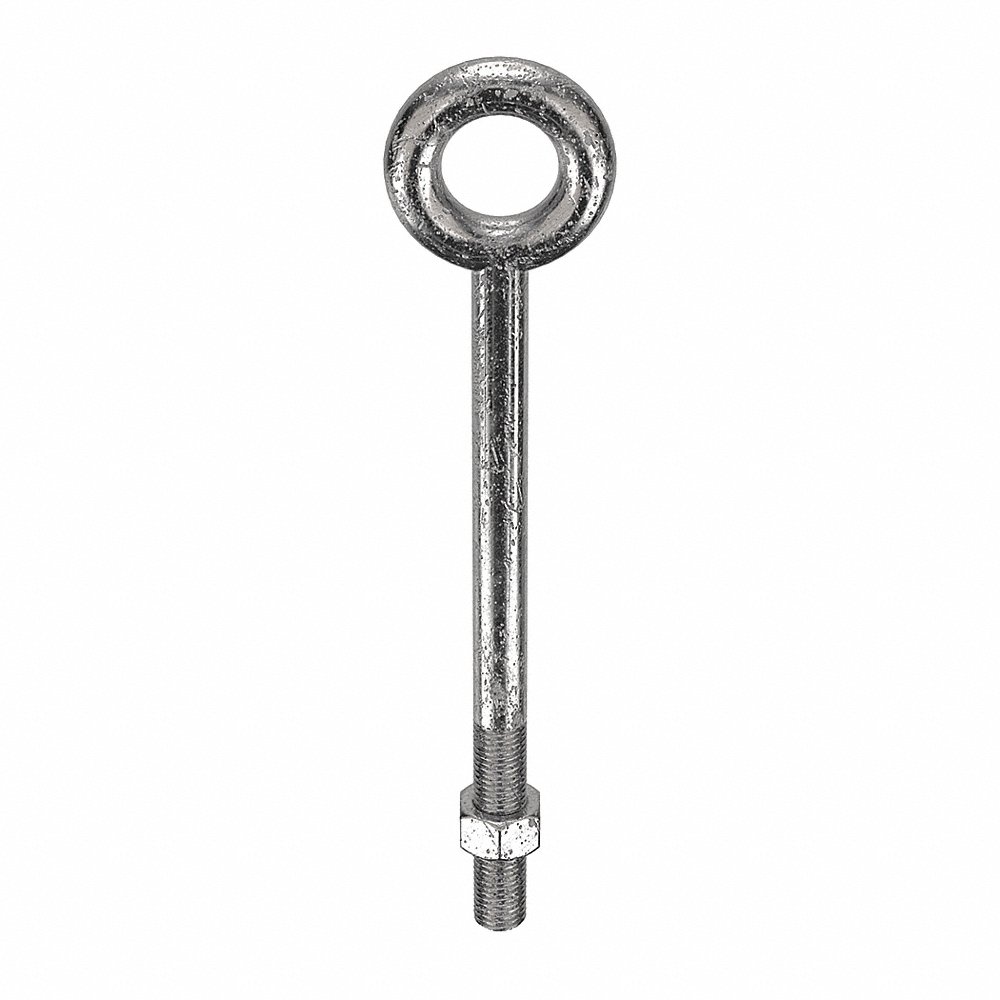

KEN FORGING N2009-316SS-12 Eye Bolt, 7/8 In - 9 Thread Size, Lift W/O Shoulder, 7200 lbs. Working Load Limit
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€128.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Eyebolt |
| Eye Closure | Closed |
| Eye Inside Dia. | 1 3/4" |
| Eye Outside Dia. | 3 1/2" |
| Finish | Plain |
| Length | 15.53" |
| Material | Stainless Steel |
| Shank Dia. | 7/8" |
| Shank Length | 12" |
| Shoulder Style | Without Shoulder |
| System Of Measurement | Imperial |
| Thread Length | 4" |
| Thread Size | 7/8"-9 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
| Type | Lift Without Shoulder |
| Working Load Limit | 7200 lbs. |
Shipping Info:
| Ship weight (kg) | 1.62 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Details:
- Includes: (1) Stainless Steel Hex Nut
Product Variants
| Product | Model | Thread Size | Shank Length | Eye Inside Dia. | Thread Length | Eye Outside Dia. | Working Load Limit | Shank Dia. | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
N2001-SS-6 | 1/4"-20 | 6" | 1/2" | 3" | 1" | 500 lbs. | 1/4" | Grade 304 | €35.67 | |
 |
N2002-SS-3-1/4 | 5/16"-18 | 3 1/4" | 5/8" | 1 1/2" | 1 1/4" | 800 lbs. | 5/16" | Grade 304 | €42.14 | |
 |
N2002-SS-6 | 5/16"-18 | 6" | 5/8" | 3" | 1 1/4" | 800 lbs. | 5/16" | - | €40.16 | |
 |
N2003-SS-6 | 3/8"-16 | 6" | 3/4" | 3" | 1 1/2" | 1200 lbs. | 3/8" | - | €47.19 | |
 |
N2005-SS-4-1/2 | 1/2"-13 | 4 1/2" | 1" | 3" | 2" | 2200 lbs. | 1/2" | Grade 304 | €56.66 | |
 |
N2005-SS-12 | 1/2"-13 | - | 1" | 4" | 2" | 2200 lbs. | 1/2" | - | €73.33 | |
 |
N2007-SS-6 | 5/8"-11 | 6" | 1 3/8" | 3" | 2 1/2" | 3500 lbs. | 5/8" | Grade 304 | €80.15 |
