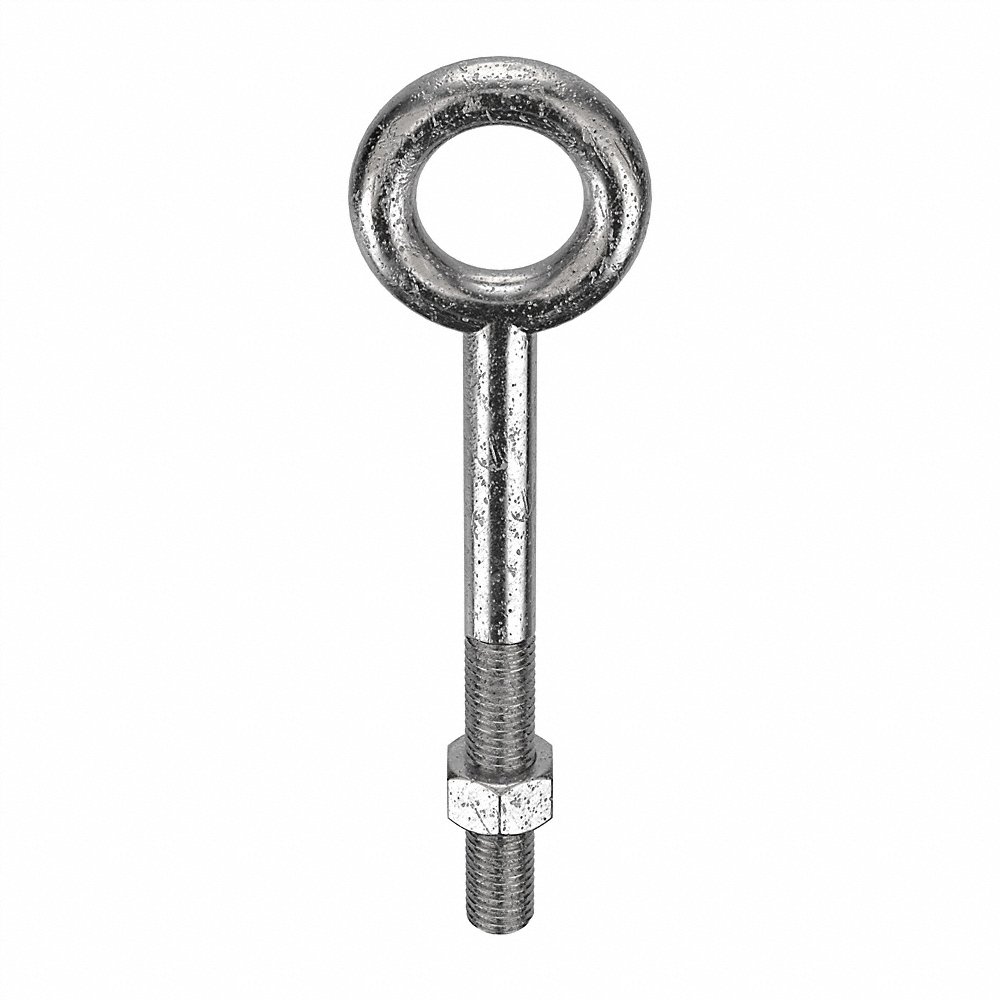

KEN FORGING N2007-316SS-6 Eye Bolt, 5/8 In - 11 Thread Size, Lift W/O Shoulder, 3500 lbs. Work Load Limit, Plain
Item: CG8WMWModel: N2007-316SS-6Cross Ref: 19L178
7 In Stock
Ships within 2 days via
13.00% off
€66.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Eyebolt |
| Application | Lifting |
| Eye Closure | Closed |
| Eye Inside Dia. | 1 3/8" |
| Eye Outside Dia. | 2 1/2" |
| Finish | Plain |
| Included Nut | Nut Included |
| Length | 8 1/2" |
| Made In North America | Made In North America |
| Material | Stainless Steel |
| Material Grade/class | 316 |
| Max. Working Load | 3500 lbs. |
| Overall Length | 8 1/2" |
| Screw Size | 5/8" |
| Shank Dia. | 5/8" |
| Shank Length | 6" |
| Shoulder Style | Without Shoulder |
| System Of Measurement | Imperial |
| Thread Length | 3" |
| Thread Size | 5/8"-11 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
| Type | Machinery Eye Bolt |
| Working Load Limit | 3500 lbs. |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Details:
- Includes: (1) Stainless Steel Hex Nut
Product Variants
| Product | Model | Eye Inside Dia. | Eye Outside Dia. | Shank Dia. | Shank Length | Thread Style | Thread Length | Screw Size | Material Grade/class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
N2001-SS-6 | 1/2" | 1" | 1/4" | 6" | Partially Threaded | 3" | 1/4" | Grade 304 | €35.15 | |
 |
N2002-SS-3-1/4 | 5/8" | 1 1/4" | 5/16" | 3 1/4" | Partially Threaded | 1 1/2" | 5/16" | Grade 304 | €36.95 | |
 |
N2002-SS-6 | 5/8" | 1 1/4" | 5/16" | 6" | Partially Threaded | 3" | 5/16" | Grade 304 | €39.59 | |
 |
N2003-SS-6 | 3/4" | 1 1/2" | 3/8" | 6" | Partially Threaded | 3" | 3/8" | Grade 304 | €44.07 | |
 |
N2005-SS-4-1/2 | 1" | 2" | 1/2" | 4 1/2" | Partially Threaded | 3" | 1/2" | Grade 304 | €55.85 | |
 |
N2005-SS-12 | 1" | 2" | 1/2" | - | Partially Threaded | 4" | 1/2" | Grade 304 | €68.53 | |
 |
N2007-SS-6 | 1 3/8" | 2 1/2" | 5/8" | 6" | Partially Threaded | 3" | 5/8" | Grade 304 | €79.00 |
