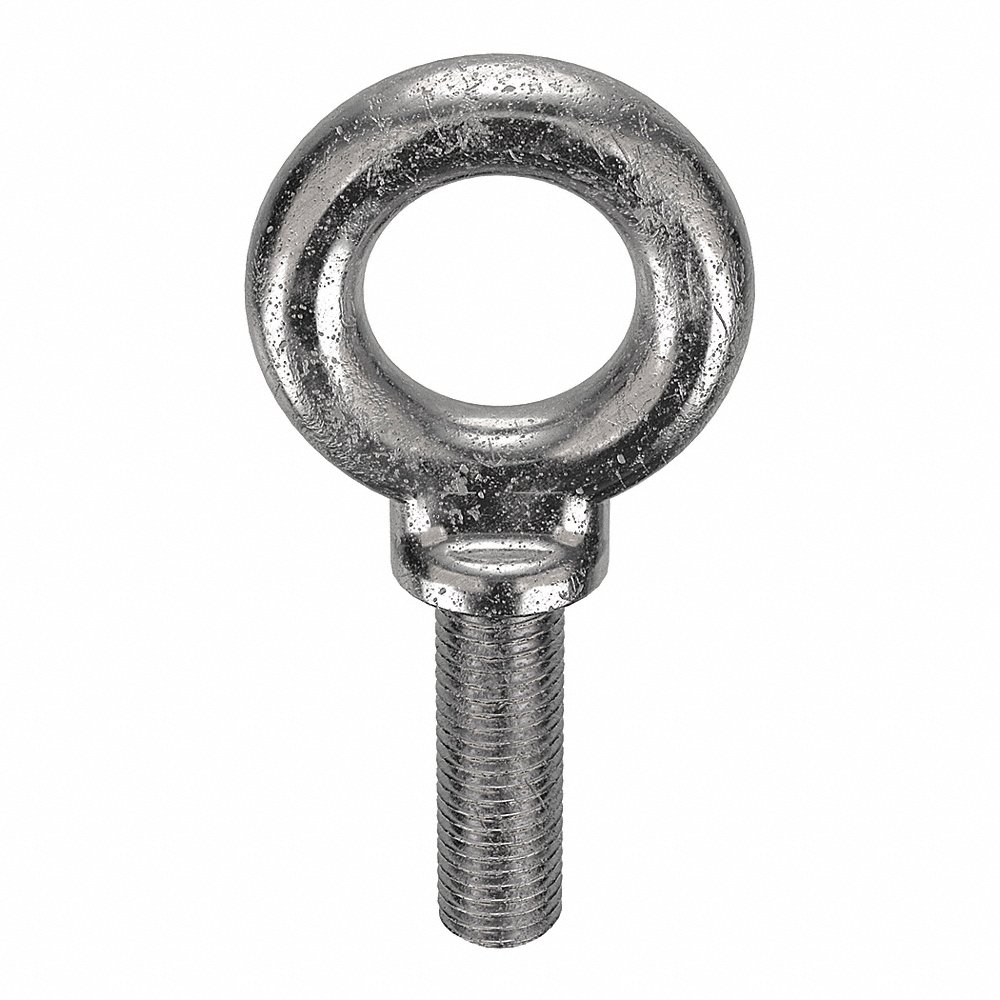

KEN FORGING K2028-2-1/2-SS Eye Bolt, 3/4 In - 10 Thread Size, Lift With Shoulder, 5000 lbs. Working Load Limit
Item: CG8WLAModel: K2028-2-1/2-SSCross Ref: 19L154
7 In Stock
Ships within 2 days via
€109.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Eyebolt |
| Application | Lifting |
| Eye Closure | Closed |
| Eye Inside Dia. | 1 1/2" |
| Eye Outside Dia. | 2 13/16" |
| Finish | Plain |
| Grade | Grade 304 , Stainless Steel |
| Included Nut | Nut Not Included |
| Length | 5.89" |
| Made In North America | Made In North America |
| Material Grade/class | Grade 304 |
| Max. Working Load | 5000 lbs. |
| Min. Tensile Strength | 75000 psi |
| Overall Length | 5 57/64" |
| Screw Size | 3/4" |
| Shank Dia. | 3/4" |
| Shank Length | 2 1/2" |
| Shoulder Dia. | 1 3/16" |
| Shoulder Length | 9/32" |
| Shoulder Style | With Shoulder |
| System Of Measurement | Imperial |
| Tensile Strength | 75000 psi |
| Thread Length | 2 1/2" |
| Thread Size | 3/4"-10 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Type | Machinery Eye Bolt |
| Working Load Limit | 5000 lbs. |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Eye Inside Dia. | Eye Outside Dia. | Shank Dia. | Shank Length | Thread Style | Thread Length | Screw Size | Shoulder Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RB580X10-001P2 | 25 mm | 45 mm | 10 mm | 17 mm | Fully Threaded | 17 mm | M10 | 25 mm | 1 | €47.82 | |
 |
RB580X12-001P2 | 30 mm | 54 mm | 12 mm | 20.5 mm | Fully Threaded | 20.5 mm | M12 | 30 mm | 1 | €56.16 | |
 |
RB580X16-001P2 | 35 mm | 63 mm | 16 mm | 27 mm | Fully Threaded | 27 mm | M16 | 35 mm | 1 | €106.32 | |
 |
RB580X20-001P2 | 40 mm | 72 mm | 20 mm | - | Fully Threaded | 30 mm | M20 | 40 mm | 1 | €126.81 | |
 |
M51940.080.0001 | 20 mm | 36 mm | 8 mm | 13 mm | Fully Threaded | 13 mm | M8 | 20 mm | 1 | €11.29 | |
 |
M51940.120.0001 | 30 mm | 54 mm | 12 mm | 20.5 mm | Fully Threaded | 20.5 mm | M12 | 30 mm | 1 | €55.91 | |
 |
K2021-316SS-BLANK | 3/4" | 1 3/16" | 1/4" | 1" | Unthreaded | - | - | 17/32" | 1 | €25.36 |
