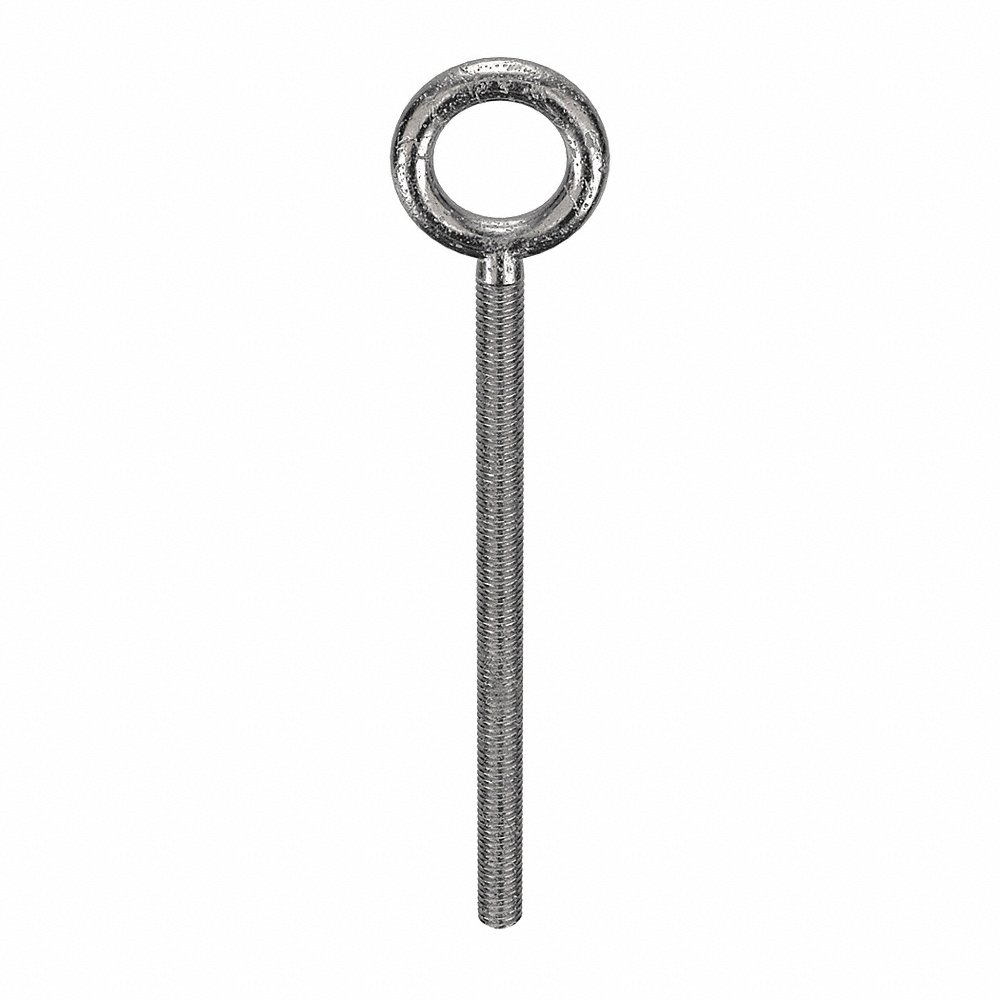

KEN FORGING K2003-6-SS Eye Bolt, 3/8 In - 16 Thread Size, Lift W/O Shoulder, 1300 lbs. Work Load Limit, Pln, 6 In Shank Lg.
Item: CG8WGGModel: K2003-6-SSCross Ref: 19L158
7 In Stock
Ships within 2 days via
10.00% off
€60.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Eyebolt |
| Application | Lifting |
| Eye Closure | Closed |
| Eye Inside Dia. | 1" |
| Eye Outside Dia. | 1 21/32" |
| Finish | Plain |
| Grade | Grade 304 , Stainless Steel |
| Includes Nut | Nut Not Included |
| Length | 7 4/5" |
| Made In North America | Made In North America |
| Material Grade/class | Grade 304 |
| Max Working Load | 1300 lbs. |
| Min. Tensile Strength | 75000 psi |
| Overall Length | 7 13/16" |
| Screw Size | 3/8" |
| Shank Dia. | 3/8" |
| Shank Length | 6" |
| Shoulder Style | Without Shoulder |
| System Of Measurement | Imperial |
| Tensile Strength | 75000 psi |
| Thread Length | 6" |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Type | Machinery Eye Bolt |
| Working Load Limit | 1300 lbs. |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Shank Length | Eye Inside Dia. | Thread Length | Eye Outside Dia. | Working Load Limit | Shank Dia. | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
N2001-SS-6 | 1/4"-20 | 6" | 1/2" | 3" | 1" | 500 lbs. | 1/4" | Grade 304 | €35.67 | |
 |
N2002-SS-3-1/4 | 5/16"-18 | 3 1/4" | 5/8" | 1 1/2" | 1 1/4" | 800 lbs. | 5/16" | Grade 304 | €42.14 | |
 |
N2002-SS-6 | 5/16"-18 | 6" | 5/8" | 3" | 1 1/4" | 800 lbs. | 5/16" | - | €40.16 | |
 |
N2003-SS-6 | 3/8"-16 | 6" | 3/4" | 3" | 1 1/2" | 1200 lbs. | 3/8" | - | €47.19 | |
 |
N2005-SS-4-1/2 | 1/2"-13 | 4 1/2" | 1" | 3" | 2" | 2200 lbs. | 1/2" | Grade 304 | €56.66 | |
 |
N2005-SS-12 | 1/2"-13 | - | 1" | 4" | 2" | 2200 lbs. | 1/2" | - | €73.33 | |
 |
N2007-SS-6 | 5/8"-11 | 6" | 1 3/8" | 3" | 2 1/2" | 3500 lbs. | 5/8" | Grade 304 | €80.15 |
