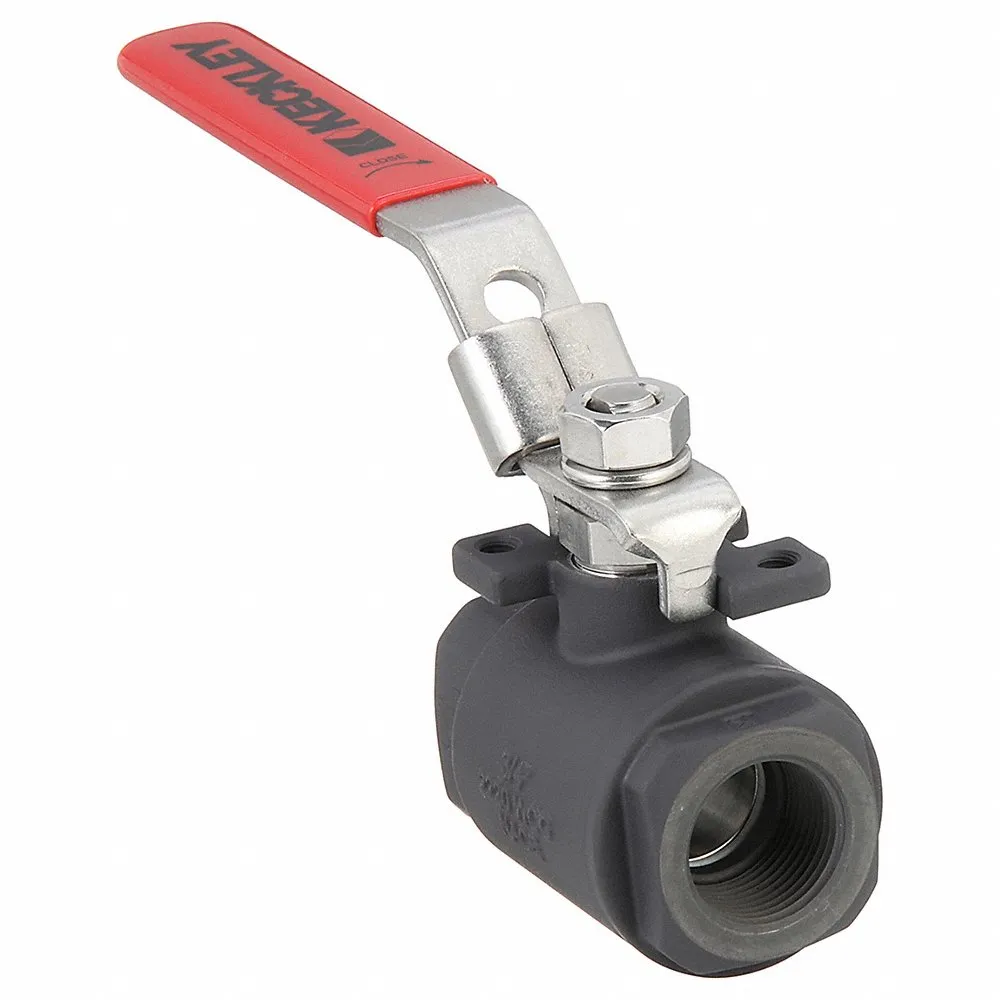

KECKLEY BVS2THFCSRGSL-075 Ball Valve, 3/4 Inch Pipe, 2, 220 PSI CWP, -20-450 Deg F
Item: CR6JAHModel: BVS2THFCSRGSL-075Cross Ref: 52RU90
7 In Stock
Ships within 2 days via
13.00% off
€84.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Material | Stainless Steel |
| Ball Material Grade | Grade 316 |
| Ball Opening Size | 0.81" |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Carbon Steel |
| Body Seal Material | Graphite |
| Body Style | Inline |
| Coefficient Of Volume | 32 |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 3/4" |
| Connection Size-side 2 | 3/4" |
| Connection Type | FNPT x FNPT |
| Connection Type-side 1 | NPT |
| Connection Type-side 2 | NPT |
| For Media | Combustible Gases |
| Handle | Locking Lever |
| Handle Color | Red |
| Handle Height | 2 4/5" |
| Handle Length | 5.7" |
| Handle Material | Stainless Steel |
| Handle Material Grade | Grade 300 |
| Handle Type | Locking Lever |
| Handle-locking | Locking |
| Included Mounting | Actuator Mounting Pad |
| Max. Pressure | 2220 psi |
| Max. Pressure (cwp) | 2220 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Max. Pressure-steam | 200 psi |
| Max. Steam Pressure | 200 psi WSP |
| Media Temp. | -20°F to +450°F |
| Nominal Valve Size | 3/4" |
| Overall Length | 2.9" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 3/4" |
| Port | Full |
| Seal Material | Graphite |
| Seat Material | RPTFE |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. | -20°F to +450°F |
| Vacuum Service Rating | -29.912 in. hg |
| Valve Body Style | Straight |
| Valve Construction | One-Piece |
| Valve Series | BVS2 Series |
| Valve Structure | Seal Welded |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.81 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Max. Pressure | Seat Material | Temp. | Ball Port Style | Port | Ball Opening Size | Nominal Valve Size | Connection Size-side 2 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BVM3THRSSRGSL-150 | 1920 psi | RPTFE | -50°F to +500°F | Standard Port | Standard | 1 1/4" | 1 1/2" | 1 1/2" | €530.36 | |
| BVM3THFSSRGSL-150 | 1920 psi | RPTFE | -50°F to +500°F | Full Port | Full | 1 1/2" | 1 1/2" | 1 1/2" | €718.74 | |
| BVM3SWFSSRGSL-150 | 1920 psi | RPTFE | -50°F to +500°F | Full Port | Full | 1 1/2" | 1 1/2" | 1 1/2" | €697.48 | |
| BVM3SWRSSRGSL-150 | 1920 psi | RPTFE | -50°F to +500°F | Standard Port | Standard | 1 1/4" | 1 1/2" | 1 1/2" | €533.97 | |
| BVM3THFCSRGSL-150 | 1973 psi | RPTFE | -20°F to +450°F | Full Port | Full | 1 1/2" | 1 1/2" | 1 1/2" | €529.47 | |
| BVM3THRCSRGSL-150 | 1973 psi | RPTFE | -20°F to +450°F | Standard Port | Standard | 1 1/4" | 1 1/2" | 1 1/2" | €361.72 | |
| BVM3SWRCSRGSL-150 | 1973 psi | RPTFE | -20°F to +450°F | Standard Port | Standard | 1 1/4" | 1 1/2" | 1 1/2" | €346.66 |
