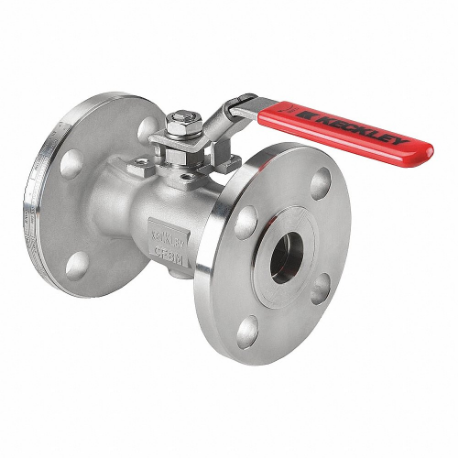

KECKLEY BVF1RF4RSSRGSL-100 Ball Valve, 1 Inch Pipe, 720 PSI CWP, -50-500 Deg F, Flanged | CR6HVH 45AL49

KECKLEY BVF1RF4RSSRGSL-100 Ball Valve, 1 Inch Pipe, 720 PSI CWP, -50-500 Deg F, Flanged

Item: CR6HVHModel: BVF1RF4RSSRGSL-100Cross Ref: 45AL49
7 In Stock

Ships within 2 days via

€648.45
10.00% off
€583.61 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Ball Valve
3-a Compliance Not Rated
Agency Compliance Not Rated
Ansi Flange Class Class 300
Average Surface Roughness Not Applicable
Ball Material Stainless Steel
Ball Material Grade Grade 316
Ball Opening Size 0.81"
Ball Port Style Standard Port
Ball Valve Product Group Manual
Body Material Stainless Steel
Body Seal Material Graphite
Body Style Inline
Coefficient Of Volume 42
Connection Gender - Side 1 Not Applicable
Connection Gender Side 2 Not Applicable
Connection Size - Side 1 1"
Connection Size - Side 2 1"
Connection Type Flanged x Flanged
Connection Type - Side 1 Flange
Connection Type - Side 2 Flange
Features ISO Mounting Pad
For Media Combustible Gases
Handle Locking Lever
Handle - Locking Locking
Handle Color Red
Handle Height 2.98"
Handle Length 5.63"
Handle Material Stainless Steel
Handle Material Grade Grade 300
Handle Type Locking Lever
Included Mounting Actuator Mounting Pad
Max. Pressure 720 psi
Max. Pressure (cwp) 720 psi
Max. Pressure (steam) 250 psi
Max. Pressure For Combustible Gas Not Rated
Max. Steam Pressure 250 psi WSP
Media Temperature Range -50°F to +500°F
Nominal Valve Size 1"
Overall Length 6.5"
Pipe Schedule Compatibility Not Applicable
Pipe Size 1"
Port Standard
Seal Material Graphite
Seat Material PTFE
Stem Grade Grade 316
Stem Material Stainless Steel
Stem Type Blowout Resistant
Temp. Range -50°F to +500°F
Vacuum Service Rating -29.912 in. hg
Valve Body Style Straight
Valve Construction One-Piece
Valve Series BVF1 Series
Valve Structure One Piece
Vented Ball Valve Non Vented

Shipping Info:

Ship weight (kg) 3.65
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelBody MaterialConnection TypeMax. PressureSeat MaterialOverall LengthMax. Steam PressureCoefficient Of VolumePortPrice
KECKLEY BVM3THRSSRGSL-150 Ball Valve, 1 1/2 Inch Pipe, 1, 920 PSI CWP, -50-500 Deg F | CR6HTH 52RV40 BVM3THRSSRGSL-150Stainless SteelFNPT x FNPT1920 psiRPTFE4.5"250 psi WSP-Standard€680.53
KECKLEY BVM3THFSSRGSL-150 Ball Valve, 1 1/2 Inch Pipe, 1, 920 PSI CWP, -50-500 Deg F | CR6HTJ 52RV56 BVM3THFSSRGSL-150Stainless SteelFNPT x FNPT1920 psiRPTFE4.8"250 psi WSP-Full€922.69
KECKLEY BVM3SWFSSRGSL-150 Ball Valve, 1 1/2 Inch Pipe, 1, 920 PSI CWP, -50-500 Deg F, Socket | CR6HTK 52RV62 BVM3SWFSSRGSL-150Stainless SteelSocket x Socket1920 psiRPTFE4.8"250 psi WSP-Full€895.41
KECKLEY BVM3SWRSSRGSL-150 Ball Valve, 1 1/2 Inch Pipe, 1, 920 PSI CWP, -50-500 Deg F, Socket | CR6HTL 52RV47 BVM3SWRSSRGSL-150Stainless SteelSocket x Socket1920 psiRPTFE4.5"250 psi WSP-Standard€685.15
KECKLEY BVM3THFCSRGSL-150 Ball Valve, 1 1/2 Inch Pipe, 1, 973 PSI CWP, -20-450 Deg F | CR6HTM 52RV14 BVM3THFCSRGSL-150Carbon SteelFNPT x FNPT1973 psiRPTFE4.8"250 psi WSP-Full€689.73
KECKLEY BVM3THRCSRGSL-150 Ball Valve, 1 1/2 Inch Pipe, 1, 973 PSI CWP, -20-450 Deg F | CR6HTN 52RV33 BVM3THRCSRGSL-150Carbon SteelFNPT x FNPT1973 psiRPTFE4.5"250 psi WSP-Standard€471.18
KECKLEY BVM3SWRCSRGSL-150 Ball Valve, 1 1/2 Inch Pipe, 1, 973 PSI CWP, -20-450 Deg F, Socket | CR6HTP 52RV26 BVM3SWRCSRGSL-150Carbon SteelSocket x Socket1973 psiRPTFE4.5"--Standard€451.57
