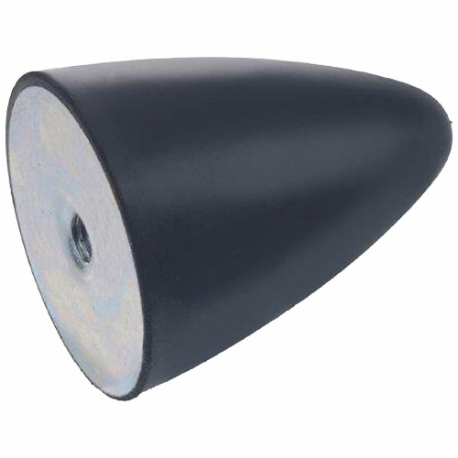

J.W. WINCO 353-50-68-M10-E-40 Vibration/Shock Absorption Mount, Conical, Tapped, M10, Steel, 1.97 Inch Dia
Get it by Monday, Aug 31
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€11.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mount |
| Body Height | 68 mm |
| Durometer | 40A |
| Height | 2 17/25" |
| Isolator Body Material | Natural Rubber |
| Isolator Material | Natural Rubber |
| Max. Load Downward Compression | 200 lbf. , 890N |
| Max. Load Sideways Shear | 52N |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | -40°F |
| Mounting | Conveyor |
| Overall Dia. | 1.97" , 50 mm |
| Resistant To | Abrasion, Wear |
| Shape | Conical |
| Stud Or Tap Material | Steel |
| Style | One Tapped Hole |
| Tap Depth | 10 mm |
| Thread Material | Zinc Plated Steel |
| Thread Size | M10 |
| Vibration Isolator Style | Female x Non Threaded |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Overall Dia. | Stud Or Tap Material | Isolator Material | Thread Material | Isolator Body Material | Body Height | Max. Load Sideways Shear | Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 453.1-19-25-1/4-55 | 3/4" | Stainless Steel | Natural Rubber | Stainless Steel | Natural Rubber | 0.98" | 90.96 lbf. | One Threaded Stud | €11.36 | |
| 254-25-1/4X20-25.4-55 | 0.98" | Stainless Steel | Natural Rubber | Stainless Steel | Buna-N | 0.81" | 468 lbf. | One Threaded Stud | €9.14 | |
| 254-25-1/4X20-12.7-55 | 0.98" | - | Natural Rubber | Stainless Steel | Buna-N | 0.81" | 468 lbf. | One Threaded Stud | €9.14 | |
| 453.1-45-51-3/8-55 | 1.77" | Stainless Steel | Natural Rubber | Stainless Steel | Natural Rubber | 2.01" | 284 lbf. | One Threaded Stud | €68.41 | |
| 254-50-3/8X16-31.8-55 | 1.97" | Stainless Steel | Natural Rubber | Stainless Steel | Buna-N | 1.69" | 885 lbf. | One Threaded Stud | €29.87 | |
| 453.1-51-57-3/8-55 | 2.01" | Stainless Steel | Natural Rubber | Stainless Steel | Natural Rubber | 2.24" | 285 lbf. | One Threaded Stud | €87.43 | |
| 453.1-32-38-5/16-55 | 1.26" | Stainless Steel | Natural Rubber | Stainless Steel | Natural Rubber | 1.5" | 155 lbf. | One Threaded Stud | €18.63 |
