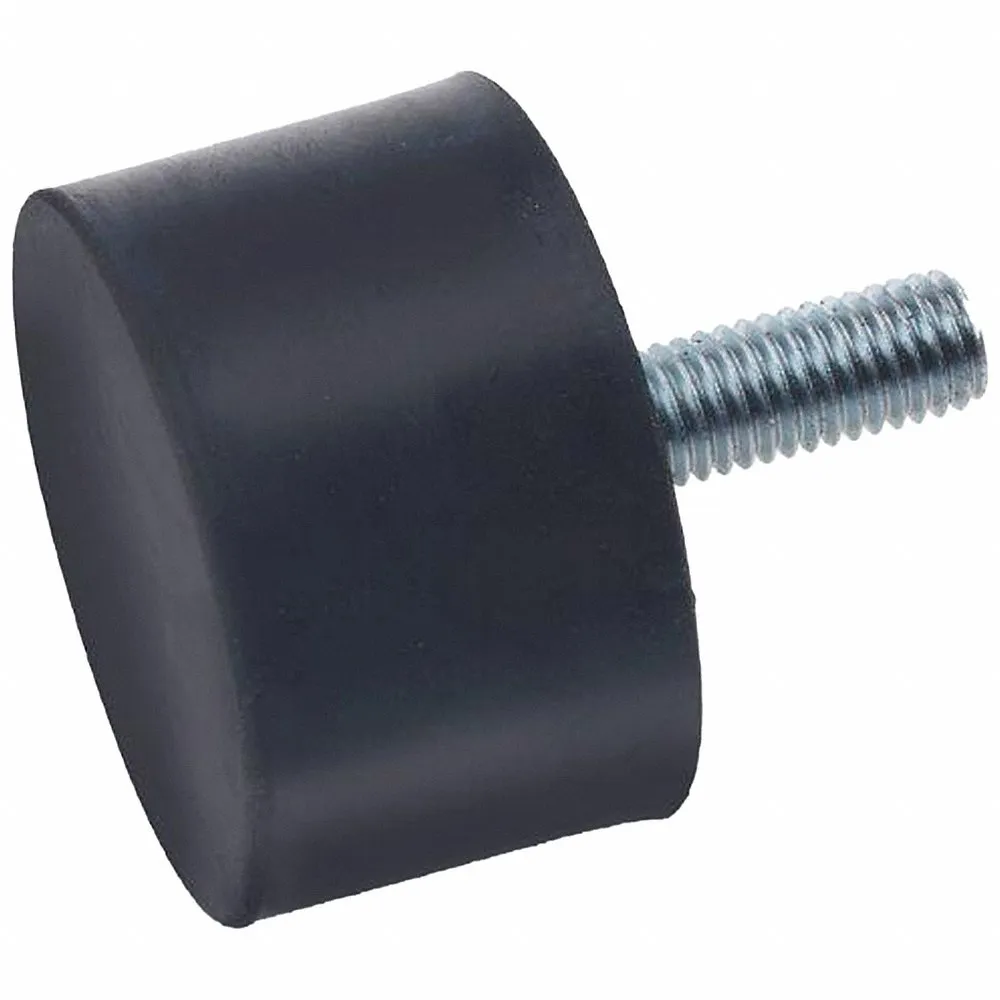

J.W. WINCO 352-50-40-M10-S-40 Vibration/Shock Absorption Mount, Cylindrical, Stud, M10, Steel, 1.97 Inch Dia
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€10.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mount |
| Body Height | 40 mm |
| Durometer | 40A |
| Height | 1.57" |
| Isolator Body Material | Natural Rubber |
| Isolator Material | Natural Rubber |
| Max Load Downward Compression | 1427.88N |
| Max. Load Downward Compression | 321 lbf. |
| Max. Operating Temp. | 176°F |
| Maximum Load Sideways Shear | 828 lbf. |
| Mounting | Conveyor |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -40°F |
| Overall Dia. | 1.97" |
| Overall Diameter | 50 mm |
| Resistant To | Abrasion, Wear |
| Shape | Cylindrical |
| Stud Length | 28 mm |
| Stud Or Tap Material | Steel |
| Style | One Threaded Stud |
| Thread Material | Zinc Plated Steel |
| Thread Size | M10 |
| Vibration Isolator Style | Male x Non Threaded |
Shipping Info:
| Ship weight (kg) | 0.12 |
Product Variants
| Model | Isolator Material | Thread Size | Height | Stud Or Tap Material | Style | Max. Load Downward Compression | Shape | Maximum Load Sideways Shear | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 453.1-19-25-1/4-55 | Natural Rubber | 1/4"-20 | 0.98" | Stainless Steel | One Threaded Stud | 22 lbf. | Conical | 90.96 lbf. | €13.22 | |
| 254-25-1/4X20-25.4-55 | Natural Rubber | 1/4"-20 | 0.81" | Stainless Steel | One Threaded Stud | 96.67 lbf. | Conical | 468 lbf. | €11.80 | |
| 254-25-1/4X20-12.7-55 | Natural Rubber | 1/4"-20 | 0.81" | - | One Threaded Stud | 96.67 lbf. | Conical | 468 lbf. | €13.28 | |
| 453.1-45-51-3/8-55 | Natural Rubber | 3/8"-16 | 2.01" | Stainless Steel | One Threaded Stud | 168 lbf. | Conical | 284 lbf. | €87.22 | |
| 254-50-3/8X16-31.8-55 | Natural Rubber | 3/8"-16 | 1.69" | Stainless Steel | One Threaded Stud | 364 lbf. | Conical | 885 lbf. | €48.01 | |
| 453.1-51-57-3/8-55 | Natural Rubber | 3/8"-16 | 2 6/25" | Stainless Steel | One Threaded Stud | 191 lbf. | Conical | 285 lbf. | €112.51 | |
| 453.1-32-38-5/16-55 | Natural Rubber | 5/16"-18 | 1 1/2" | Stainless Steel | One Threaded Stud | 45 lbf. | Conical | 155 lbf. | €30.02 |
