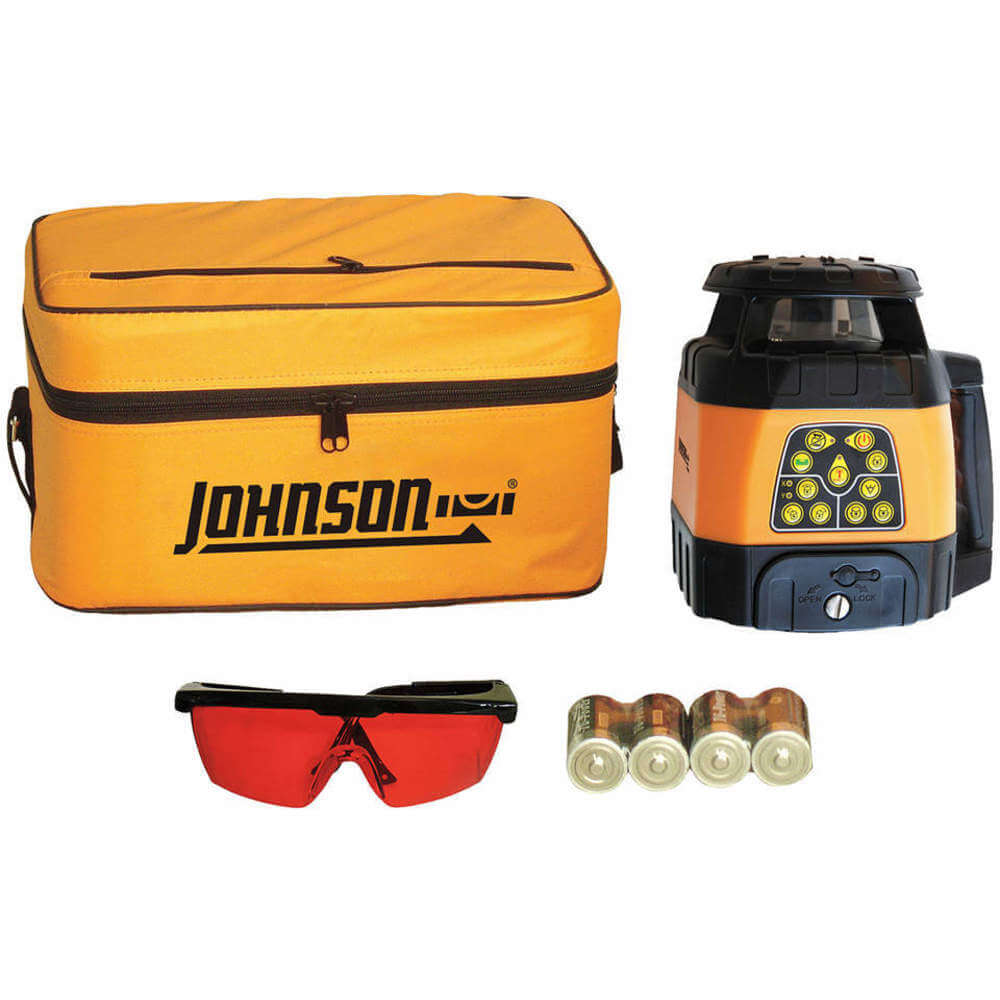

JOHNSON 40-6526 Rotary Laser Level 1500 Feet Diameter Red
Item: AF2TXWModel: 40-6526Cross Ref: 6XUR4
7 In Stock
Ships within 2 days via
10.00% off
€1,245.93 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rotary Laser Level |
| Accuracy | +/-1/8" @ 100 ft. |
| Auto Leveling Range | -5°F to +5°F |
| Auto Leveling Range | +/-5 Degrees F |
| Auto Shutoff | No |
| Battery Type | C Alkaline |
| Bluetooth | Not Bluetooth Compatible |
| Features | Height Of Instrument/Tilt Alarm Function Ensures Product Accuracy |
| Grade/slope | +/- 5 |
| Height | 8 1/2" |
| Includes | Case, Laser Glasses |
| Includes Batteries | Batteries Included |
| Indoor Range (maximum) | 200 ft. |
| Laser Beam Color | Red |
| Laser Class | IIIa |
| Laser Class | Class 3A |
| Laser Output | Less Then Equal to 5 mW |
| Laser Projection | Horizontal, Vertical |
| Length | 8" |
| Leveling Type | Self-Leveling |
| Leveling Type | Electronic Self Leveling |
| Max. Output | Less Than 5mW |
| Max. Output | Less Than 5 mW |
| Modes | Scanning Modes: 0, 30, 60 Deg, Dot, 2 Adjustable Line Lengths |
| Modes | Scanning Modes: 0, 30, 60°, Dot, 2 Adjustable Line Lengths |
| Mount Type | Tripod |
| Number Of Beams | 2 |
| Number Of Dots | 1 |
| Number Of Level Vials | 0 |
| Number Of Lines | 2 |
| Number Of Plumb Vials | 0 |
| Operating Temp. | +14°F to +113°F |
| Outdoor Range (maximum) | 1500 ft. |
| Overall Depth | 6 5/16" |
| Overall Height | 7 1/4" |
| Overall Width | 8 5/8" |
| Power Source | 4"C" Alkaline Batteries |
| Range W/detector | 1500 ft. |
| Range W/o Detector | 200 ft. |
| Rotating Speed | 120 And 500 RPM |
| Self-leveling Range | -5° to +5° |
| Thread Size | 5/8"-11 |
| Total Number Of Vials | 0 |
| Tripod Thread Size | 5/8"-11 |
| Type | Horizontal And Vertical |
| Visual/audible Indicators | Yes |
| Wavelength | 635 N-m |
| Wavelength | 635 |
| Width | 6 1/4" |
| Working Range With Receiver (maximum) | 1500 ft. |
| Working Range Without Receiver (maximum) | 200 ft. |
Shipping Info:
| Ship weight (kg) | 2.54 |
| Ship height (cm) | 22.61 |
| Ship length (cm) | 24.38 |
| Ship width (cm) | 24.64 |
| HS code | 9031808085 |
| Country of Origin | CN |
Product Details:
- Beam Color (Red)
- Plumb Down (No)
- Plumb Up (Yes)
Product Variants
| Product | Model | Number Of Lines | Range W/detector | Range W/o Detector | Accuracy | Leveling Type | Number Of Dots | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |

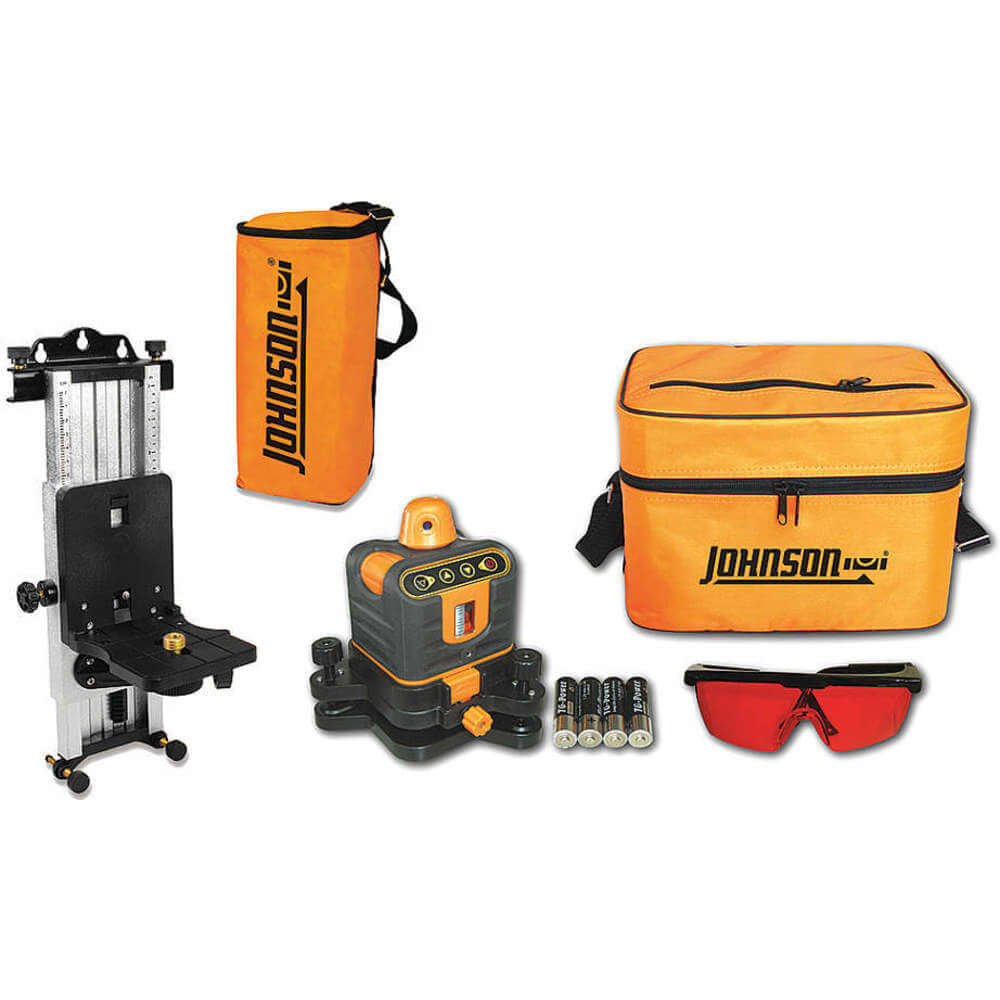

40-6507 | - | 800 ft. | 200 ft. | +/-1/4" @ 100 ft. | Manual Leveling | 1 | - | RFQ
|
 |

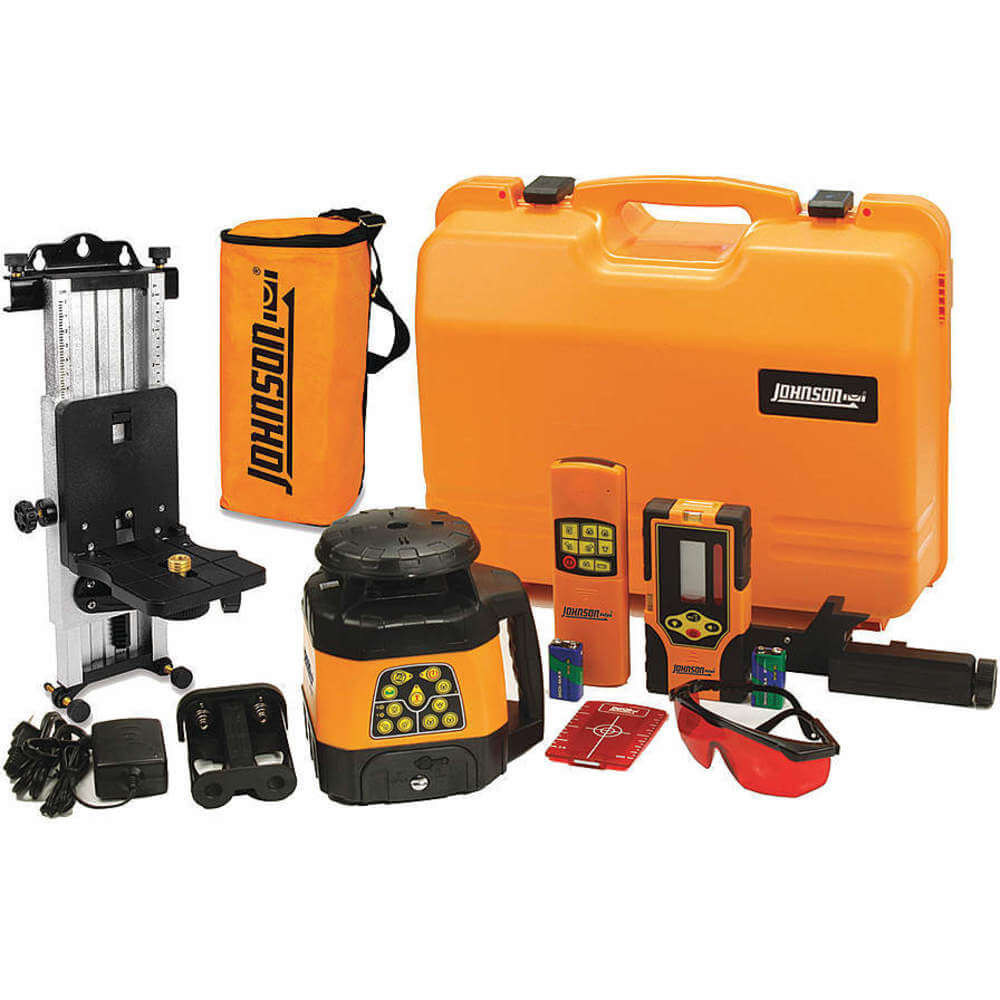

40-6534 | 2 | 1500 ft. | 200 ft. | +/-1/8" @ 100 ft. | Electronic Self Leveling | 1 | €1,857.32 | |
 |

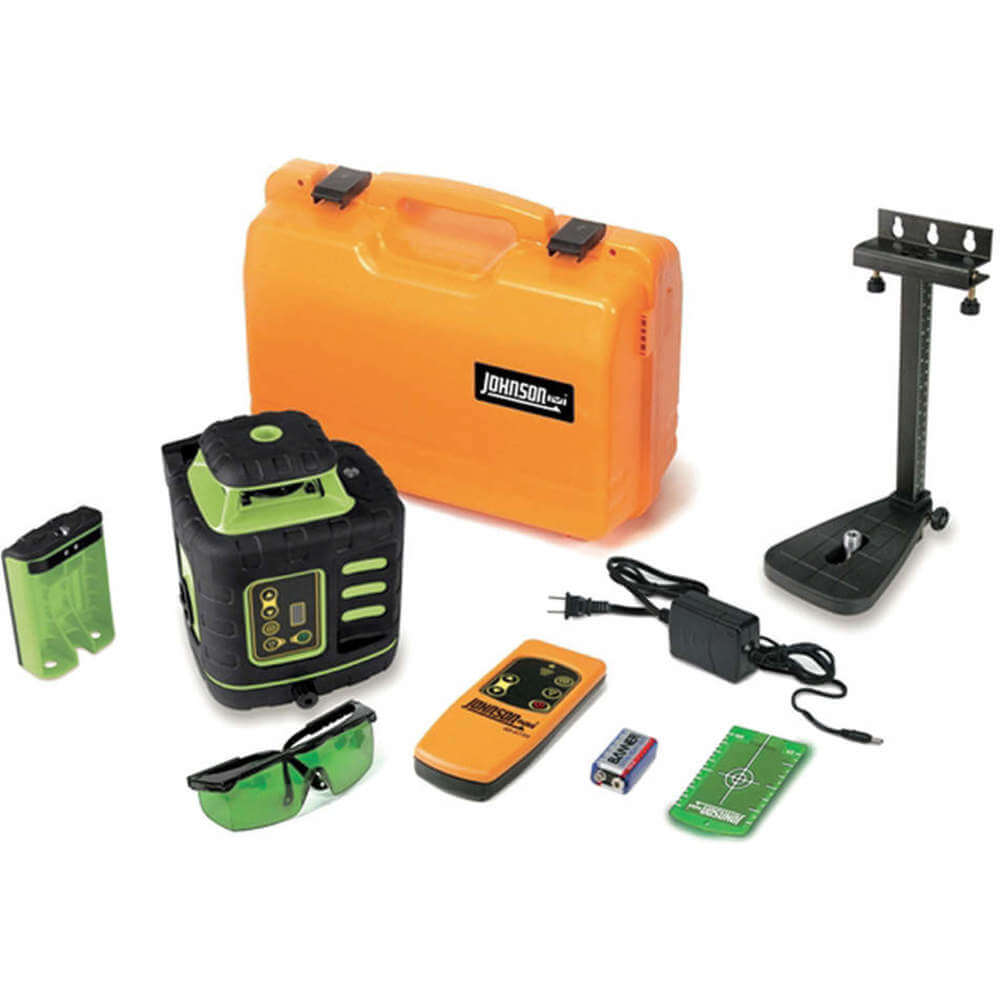

40-6543 | 2 | 1200 ft. | 400 ft. | ±3/16" @ 100 Ft. | Pendulum Self Leveling | 1 | - | RFQ
|
 |

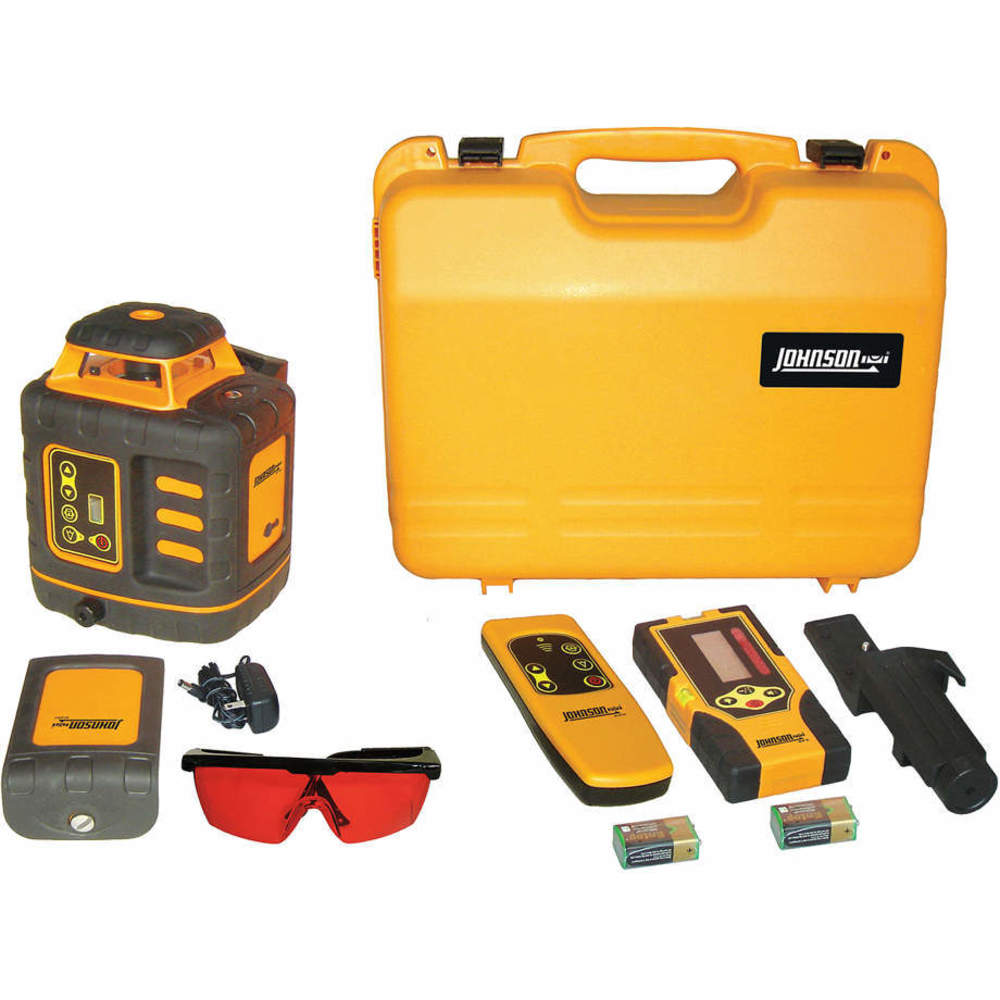

40-6532 | 2 | 2000 ft. | 200 ft. | ±3/16" @ 100 Ft. | Pendulum Self Leveling | 1 | - | RFQ
|
 |

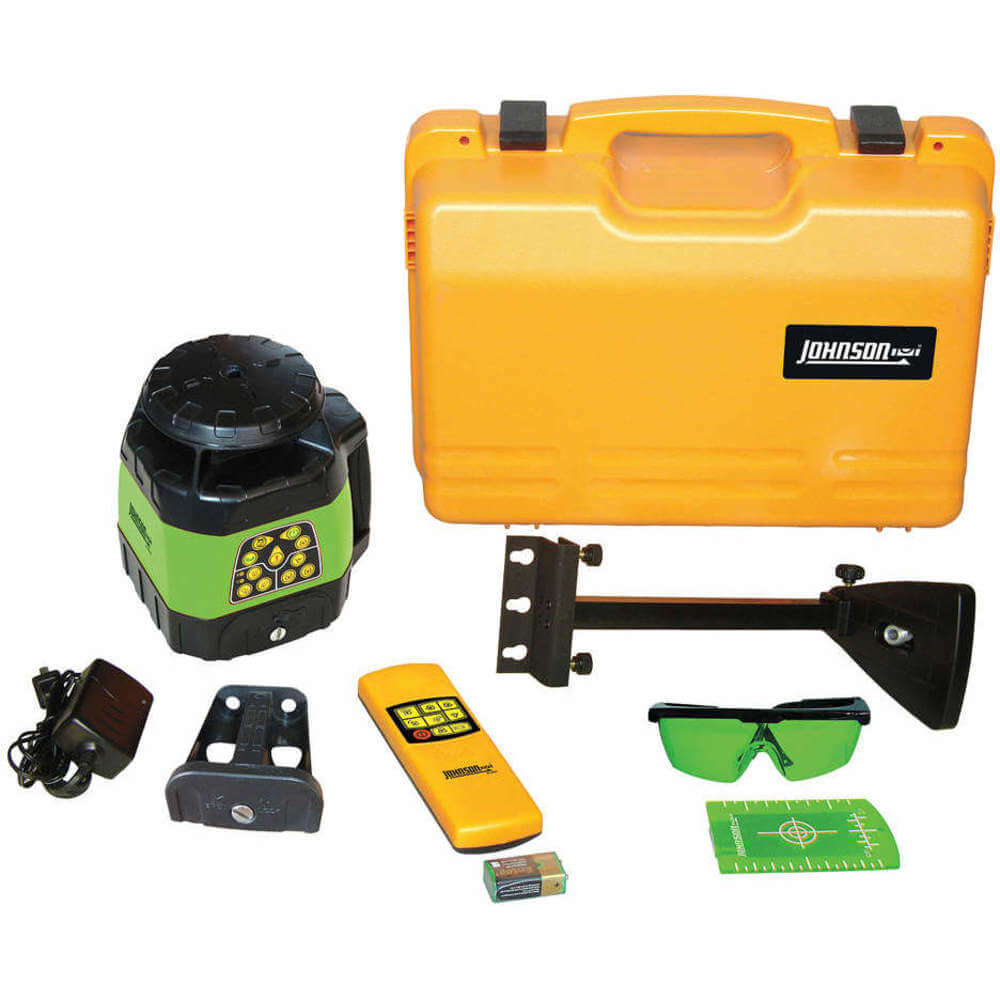

40-6544 | 2 | 1200 ft. | 400 ft. | +/-1/8" @ 100 ft. | Electronic Self Leveling | 1 | - | RFQ
|
