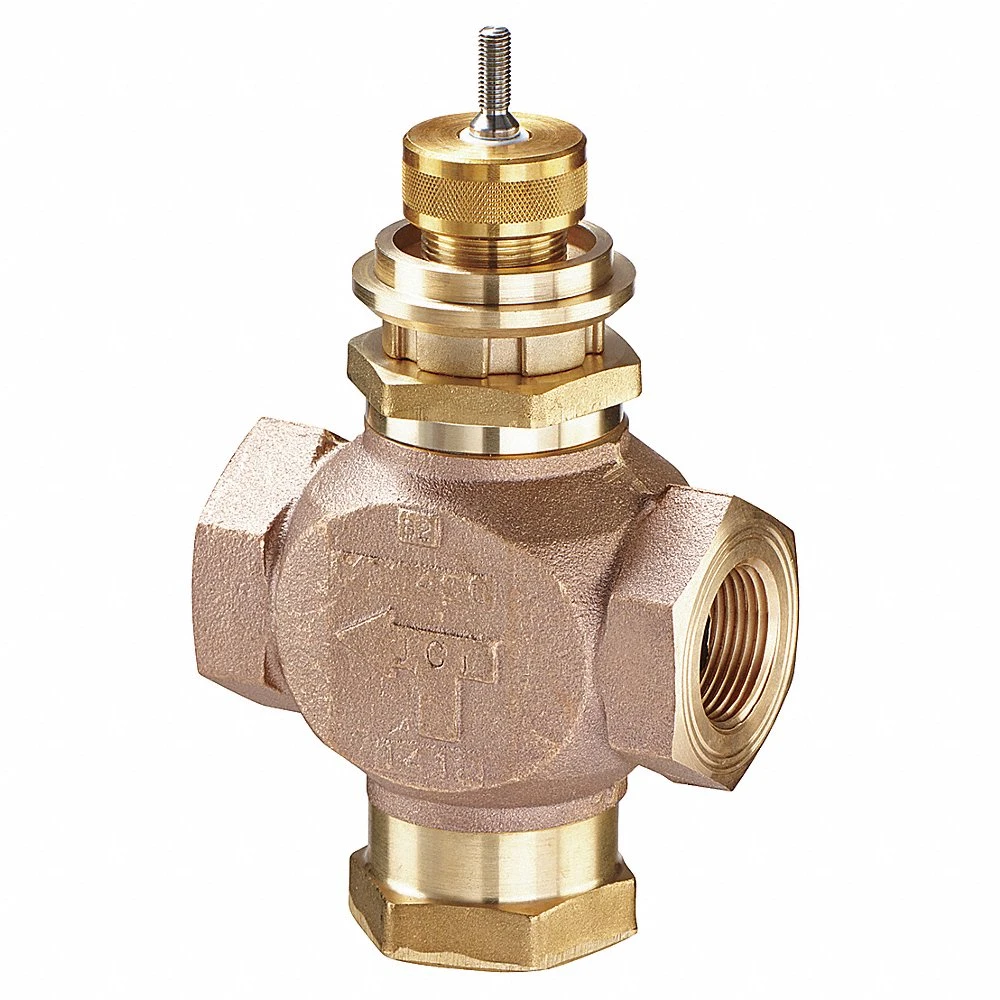

JOHNSON CONTROLS VG7844ST Globe Valve 3-way Mixing 2 Inch Fnpt
Item: AD4JBQModel: VG7844STCross Ref: 41P952
7 In Stock
Ships within 2 days via
10.00% off
€1,607.09 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Globe Valve Less Actuator |
| Actuator Control Signal | Not Applicable |
| Actuator Input Voltage | Not Applicable |
| Actuator Return Action | Spring Return |
| Actuator Type | Not Applicable |
| Ansi Rating | ANSI Leakage Class Iv |
| Body Material | Bronze |
| Body Pattern | Three Way |
| Cartridge Material | Not Applicable |
| Coefficient Of Volume | 46.2 |
| Compatible With Series | VG7000 Series |
| Configuration | Tee |
| Connection Size | 2" |
| Connection Type | FNPT |
| Cv Flow Rate | 46.2 |
| Depth | 4 1/4" |
| Flow Characteristic | Linear |
| Fluid Service | Steam, Water, Water Glycol Solution to 50% |
| Fluid Temperature - Maximum | 248°F |
| Fluid Temperature - Minimum | 35°F |
| Height | 6 3/16" |
| Includes | Valve Only |
| Includes Actuator | Actuator Not Included |
| Installation Orientation | Vertical |
| Leakage Rate | 0.05% |
| Max. Actuator Control Pressure | Not Applicable |
| Max. Allowable Pressure | 400 psi |
| Max. Pressure | 400 psi |
| Max. Water Temp. | 338 Degrees F |
| Max. Water Temp. | 338°F |
| Min. Actuator Control Pressure | Not Applicable |
| Overall Depth | 4 1/4" |
| Overall Height | 6 3/16" |
| Overall Length | 5 29/32" |
| Packing Material | PTFE |
| Port Connection Gender | Female |
| Port Connection Size | 2" |
| Port Connection Type | NPT |
| Rangeability | 1001 |
| Resistance Properties | Corrosion Resistant |
| Safe Working Steam Pressure | 100 psi |
| Safe Working Water Pressure | 308 psi |
| Seat Material | Stainless Steel |
| Stem Material | Stainless Steel |
| Trim Material | Stainless Steel |
| Union Connection Size | Not Applicable |
| Valve Action | Normally Open, Normally Closed |
| Valve Style | Mixing |
| Width | 5 29/32" |
Shipping Info:
| Ship weight (kg) | 0.84 |
| Ship height (cm) | 15.72 |
| Ship length (cm) | 15 |
| Ship width (cm) | 15 |
| HS code | 8481809050 |
| Country of Origin | MX |
Product Variants
| Model | Connection Size | Coefficient Of Volume | Depth | Height | Body Material | Seat Material | Connection Type | Stem Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| VG7844CT | 1/2" | 0.73 | 1 5/8" | - | Bronze | Stainless Steel | FNPT | Stainless Steel | €697.44 | |
| VG7844ET | 1/2" | 1.8 | 1 5/8" | - | Bronze | Stainless Steel | FNPT | Stainless Steel | €793.42 | |
| VG7844GT | 1/2" | 4.6 | 1 5/8" | 4 3/4" | Bronze | Stainless Steel | FNPT | Stainless Steel | €671.19 | |
| VG7844NT | 1" | 11.6 | - | 5.969" | Bronze | Stainless Steel | FNPT | Stainless Steel | €1,107.61 | |
| VG7844PT | 1 1/4" | 18.5 | 2.688" | 5 7/8" | Bronze | Stainless Steel | FNPT | Stainless Steel | €1,465.70 | |
| VG7844RM | 1 1/2" | 28.9 | 4.312" | 5.812" | Bronze | Stainless Steel | FNPT | Stainless Steel | €1,965.36 | |
| VG7844RT | 1 1/2" | 28.9 | 4.312" | 5 13/16" | Bronze | Stainless Steel | FNPT | Stainless Steel | €1,349.53 |
