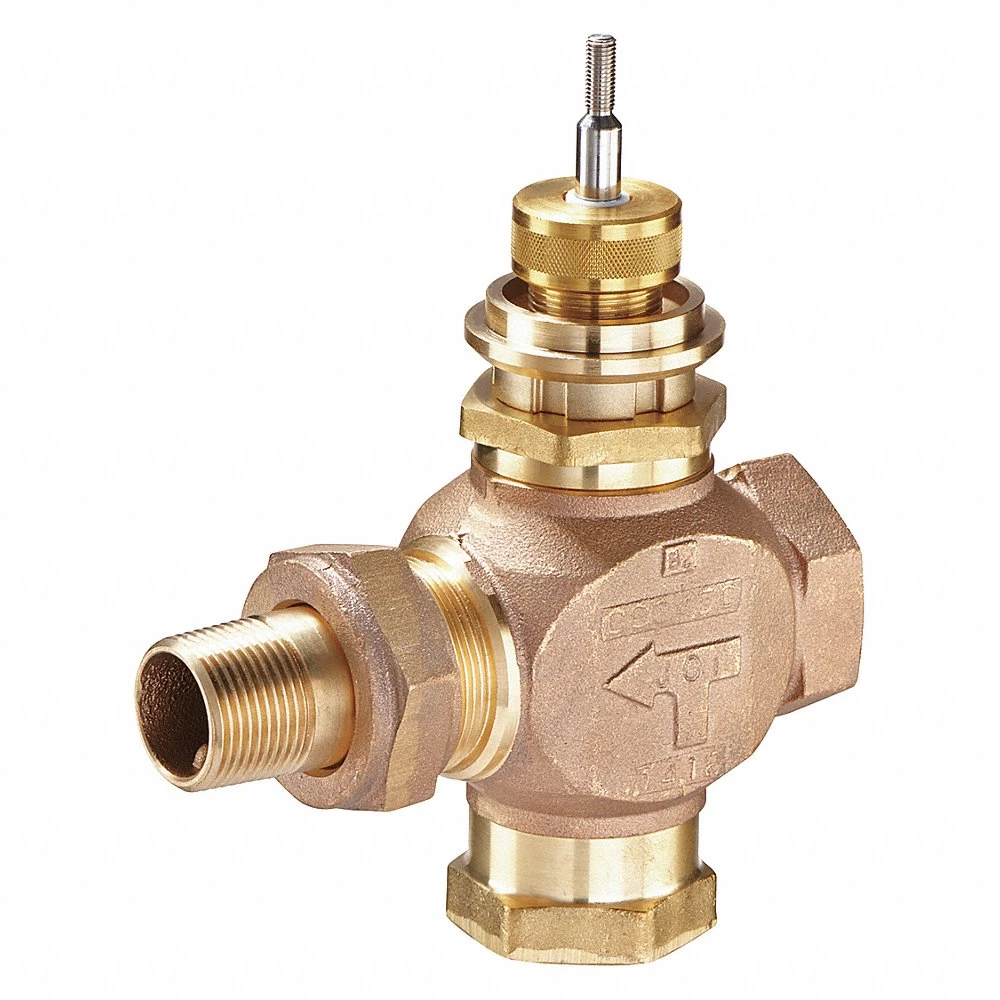

JOHNSON CONTROLS VG7551NT Globe Valve 2-way No 1 Inch Union Angle
Item: AD4JAUModel: VG7551NTCross Ref: 41P932
7 In Stock
Ships within 2 days via
10.00% off
€544.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Globe Valve Less Actuator |
| Actuator Control Signal | Not Applicable |
| Actuator Input Voltage | Not Applicable |
| Actuator Return Action | Spring Return |
| Actuator Type | Not Applicable |
| Ansi Rating | ANSI Leakage Class Iv |
| Body Material | Bronze |
| Body Pattern | Two-Way |
| Cartridge Material | Not Applicable |
| Coefficient Of Volume | 11.6 |
| Compatible With Series | VG7000 Series |
| Configuration | Angle |
| Connection Size | 1" |
| Connection Type | Union Angle |
| Cv Flow Rate | 11.6 |
| Depth | 2.312" |
| Flow Characteristic | Equal Percentage |
| Fluid Service | Steam, Water, Water Glycol Solution to 50% |
| Fluid Temperature - Maximum | 248°F |
| Fluid Temperature - Minimum | 35°F |
| Height | 5 31/32" |
| Includes | Valve Only |
| Includes Actuator | Actuator Not Included |
| Installation Orientation | Vertical |
| Leakage Rate | 0.01% |
| Max. Actuator Control Pressure | Not Applicable |
| Max. Allowable Pressure | 400 psi |
| Max. Pressure | 400 psi |
| Max. Water Temp. | 284 Degrees F |
| Max. Water Temp. | 284°F |
| Min. Actuator Control Pressure | Not Applicable |
| Overall Depth | 2 5/16" |
| Overall Height | 5 31/32" |
| Overall Length | 8 1/16" |
| Packing Material | Ethylene Propylene |
| Port Connection Gender | Female/Male |
| Port Connection Size | 1" |
| Port Connection Type | Union NPT |
| Rangeability | 1001 |
| Resistance Properties | Corrosion Resistant |
| Safe Working Steam Pressure | 38 psi |
| Safe Working Water Pressure | 308 psi |
| Seat Material | Brass |
| Specific Valve Action | Stem Down To Close |
| Stem Material | Stainless Steel |
| Trim Material | Brass |
| Union Connection Size | 1" |
| Valve Action | Normally Open |
| Valve Style | Not Applicable |
| Width | 8 1/16" |
Shipping Info:
| Ship weight (kg) | 3.11 |
| Ship height (cm) | 15.16 |
| Ship length (cm) | 5.87 |
| Ship width (cm) | 20.48 |
| HS code | 8481809050 |
| Country of Origin | MX |
Product Variants
| Model | Connection Type | Seat Material | Connection Size | Coefficient Of Volume | Trim Material | Safe Working Steam Pressure | Configuration | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| VG7241CT | FNPT | Brass | 1/2" | 0.73 | Brass | 38 psi | Straight-Thru | 4 3/4" | €258.13 | |
| VG7241ET | FNPT | Brass | 1/2" | 1.8 | Brass | 38 psi | Straight Thru | 4 3/4" | €250.97 | |
| VG7241GT | FNPT | Brass | 1/2" | 4.6 | Brass | 38 psi | Straight Thru | 4 3/4" | €259.37 | |
| VG7241LT | FNPT | Brass | 3/4" | 7.3 | Brass | 38 psi | Straight Thru | 4 3/4" | €363.70 | |
| VG7241NT | FNPT | Brass | 1" | 11.6 | Brass | 38 psi | Straight-Thru | 5 31/32" | €313.63 | |
| VG7241PT | FNPT | Brass | 1 1/4" | 18.5 | Brass | 38 psi | Straight Thru | 5 7/8" | €637.52 | |
| VG7241RT | FNPT | Brass | 1 1/2" | 28.9 | Brass | 38 psi | Straight Thru | 5 13/16" | €838.05 |
