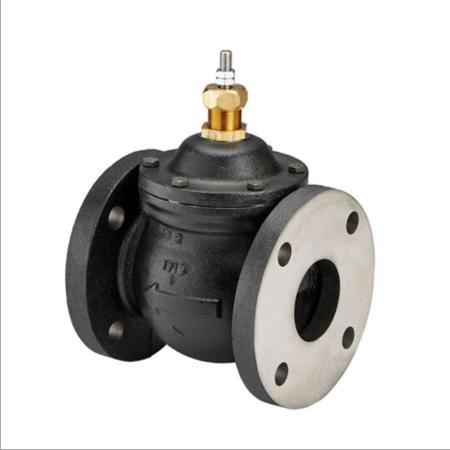

JOHNSON CONTROLS VG2231YN Globe Valve 2-way No 6 Inch Flanged
Get it by Friday, Dec 19
10.00% off
€5,480.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Globe Valve Less Actuator |
| Actuator Control Signal | Not Applicable |
| Actuator Input Voltage | Not Applicable |
| Actuator Return Action | Spring Return |
| Actuator Type | Not Applicable |
| Ansi Rating | Ansi Class 125 |
| Body Material | Cast Iron |
| Body Pattern | Two-Way |
| Cartridge Material | Not Applicable |
| Compatible With Series | MP86 Series |
| Configuration | Straight Thru |
| Connection Size | 6" |
| Connection Type | Flanged |
| Cv Flow Rate | 350 |
| Depth | 11" |
| Flow Characteristic | Linear |
| Fluid Service | Water, Water Glycol Solution to 50% |
| Fluid Temperature - Maximum | 281°F |
| Fluid Temperature - Minimum | 35°F |
| Height | 19 3/16" |
| Includes | Valve Only |
| Includes Actuator | Actuator Not Included |
| Leakage Rate | 0.1% |
| Max. Actuator Control Pressure | Not Applicable |
| Max. Allowable Pressure | 175 psi |
| Max. Pressure | 175 psi |
| Max. Water Temp. | 281°F |
| Max. Water Temp. | 281 Degrees F |
| Min. Actuator Control Pressure | Not Applicable |
| Overall Depth | 11" |
| Overall Height | 19 3/16" |
| Overall Length | 14 1/2" |
| Packing Material | EPDM |
| Port Connection Size | 6" |
| Port Connection Type | Flanged |
| Product Datasheet | johnson-controls-vg2231yn.pdf |
| Rangeability | 10.4:1 |
| Safe Working Steam Pressure | 35 psi |
| Safe Working Water Pressure | 175 psi |
| Specific Valve Action | Stem Down To Close |
| Stem Material | Stainless Steel |
| Stem Travel | 1 1/2" |
| Trim Material | Brass |
| Union Connection Size | Not Applicable |
| Valve Action | Normally Open |
| Valve Style | Not Applicable |
| Width | 14 1/2" |
Shipping Info:
| Ship weight (kg) | 63 |
| Ship height (cm) | 48.74 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 36.83 |
| HS code | 8481809050 |
| Country of Origin | MX |
Documentation:
Product Variants
| Model | Connection Size | Height | Depth | Configuration | Body Pattern | Body Material | Connection Type | Seat Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| VG2231TL | 2 1/2" | 11 21/32" | 7" | Straight Thru | Two-Way | Cast Iron | Flanged | - | €1,671.87 | |
| VG2231TM | 2 1/2" | 11 21/32" | 7" | Straight Thru | Two-Way | Cast Iron | Flanged | - | €1,744.56 | |
| VG2231UL | 3" | 12 11/16" | 7 1/2" | Straight Thru | Two-Way | Cast Iron | Flanged | - | €1,860.12 | |
| VG2231UM | - | 12.688" | 7 1/2" | Straight Thru | Two-Way | Cast Iron | Flanged | - | €1,990.01 | |
| VG2231UN | 3" | 12 11/16" | 7 1/2" | Straight Thru | Two-Way | Cast Iron | Flanged | - | €1,913.21 | |
| VG2231VM | 4" | 15 7/16" | 9" | Straight Thru | Two-Way | Cast Iron | Flanged | - | €2,605.24 | |
| VG2231VN | 4" | 15 7/16" | 9" | Straight Thru | Two-Way | Cast Iron | Flanged | - | €2,712.80 |
