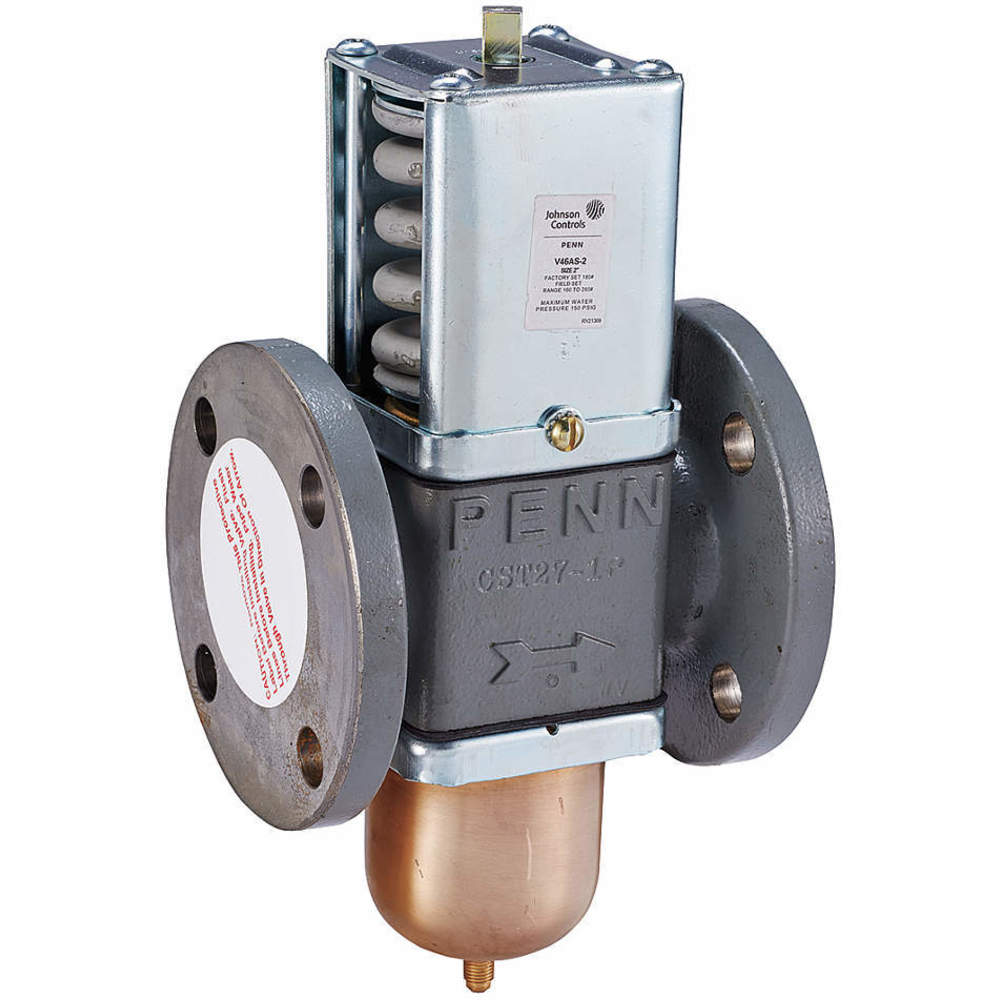

JOHNSON CONTROLS V46AT-2C Pressure Actuated Water Regulating Valve, 1/2 Inch NPT, 4 Hole ASME Flange
Get it by Friday, Feb 13
10.00% off
€1,812.70 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Water Regulating Valve |
| Actuation Mechanism | Pressure |
| Application | Head Pressure Control With Non-Corrosive Refrigerants |
| Body Material | Cast Iron |
| Connection | Flange |
| Connection Size | 2 1/2" |
| Design Pressure | 320 psig |
| Design Pressure (psig) | 320 |
| Disc Material | Brass |
| Flow Rate - Maximum | 250 GPM |
| For Media | Water/Glycol |
| For Media State | Liquid |
| For Refrigerant Type | R-22, R-404A, R-502, R-507 |
| For Repair Kit - Manufacturer Model Number | STT18A-601R |
| For Use With | Non Corrosive Refrigerants |
| Internal Parts Material | Aluminum Bronze |
| Maximum Operating Pressure | 320 psi |
| Number Of Ports | 2 |
| Number Of Ways | 2 |
| Opening Point Adjustment | Adjustable |
| Opening Pressure - Maximum | 260 psi |
| Opening Pressure - Minimum | 160 psi |
| Operating Temperature - Maximum | 170°F |
| Orientation | Vertical |
| Overall Height | 13 1/2" |
| Overall Length | 6 3/4" |
| Overall Width | 7" |
| Pipe Connection Size | 2 1/2" |
| Pipe Connection Type | Flange |
| Port | 2 1/2" |
| Port Type | 2 1/2" |
| Pressure Connection Size | 1/4" |
| Pressure Connection Type | Flare |
| Product Datasheet | johnson-controls-v46ar-1c.pdf |
| Product Type | Pressure Regulating Valve |
| Repair Kit | STT18A-601R |
| Replacement Cartridge - Manufacturer Model No. | SEP81A-601R |
| Set Points | 160 to 260 |
| Specific Valve Action | Opens On Rise |
| Type | 2 Way |
Shipping Info:
| Ship weight (kg) | 13.73 |
| Ship height (cm) | 42.8 |
| Ship length (cm) | 18.16 |
| Ship width (cm) | 21.59 |
| HS code | 8481809050 |
| Country of Origin | MX |
Documentation:
Product Variants
| Model | Connection Size | Body Material | Port Type | Type | Connection Type | Number Of Ways | Disc Material | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

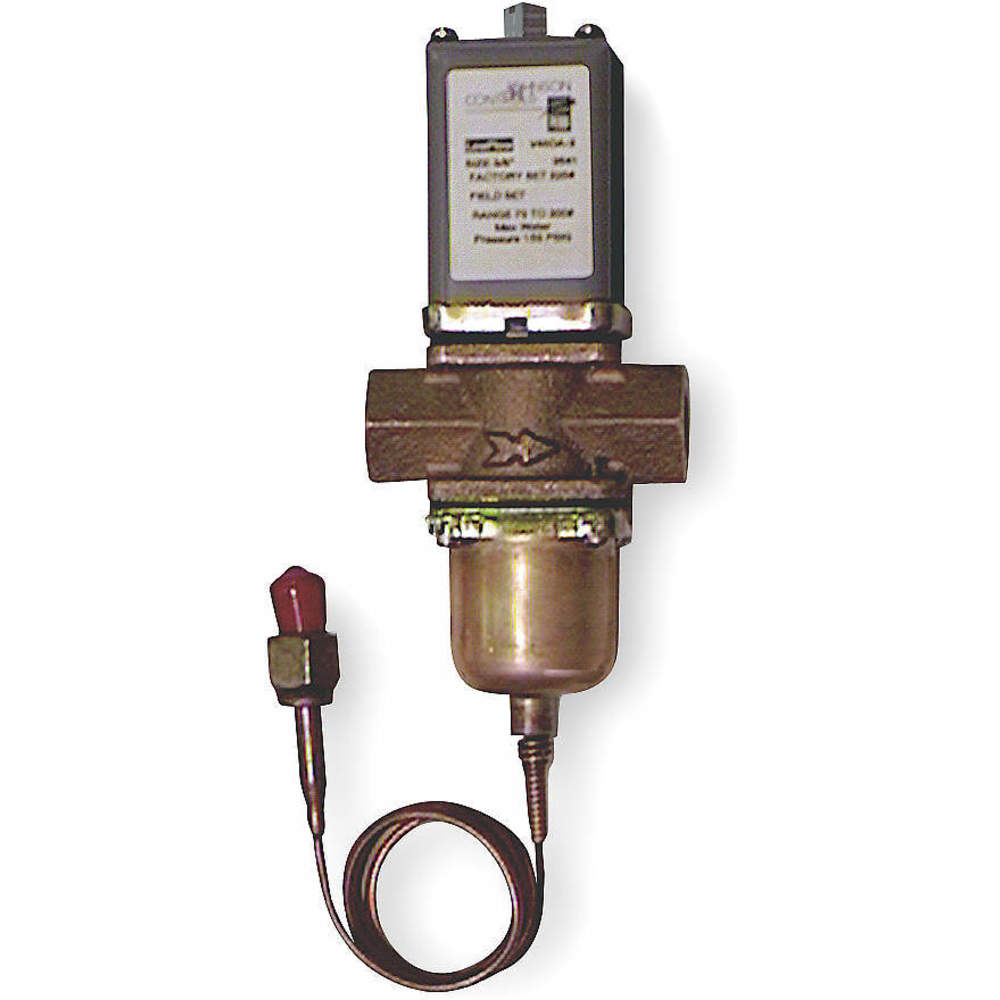

| V46AA-1C | 3/8" | Brass | 3/8" | NPT | 6 3/4" | 2 5/8" | 1 1/2" | SEC99AA-36C, SEP91A-600R | €333.43 | |
| V46AB-1C | 1/2" | Brass | 1/2" | NPT | 7 7/16" | 3 1/8" | 1 7/8" | SEC99AA-36C, SEP91A-602R | €374.05 | |
| V46AC-1C | 3/4" | - | - | - | - | - | - | - | €416.88 | |
| V46AD-1C | 1" | Cast Iron | 1" | NPT | 10 3/4" | 4 1/2" | 2 13/16" | SEC99AA-36C, SEP91A-603R | €768.41 | |
| V46AE-1C | 1 1/4" | Cast Iron | 1 1/4" | NPT | - | - | - | SEP91A-603R | €906.00 | |
| V46AR-1C | 1 1/2" | Cast Iron | 1 1/2" | Flange | 11 1/8" | 5 5/16" | 5" | SEC99AA-36C, SEP91A-603R | €1,045.94 | |
| V46AS-2C | 2" | - | - | - | - | - | - | - | €1,357.66 |
