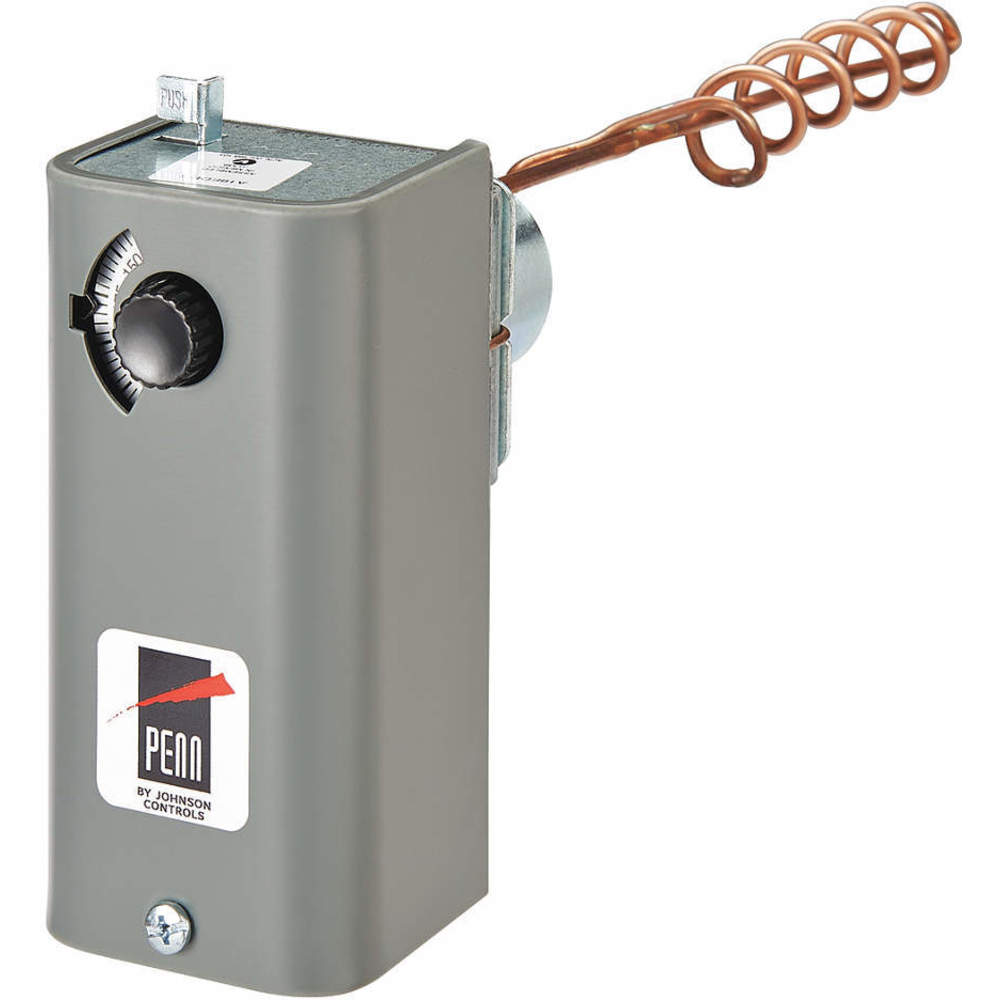

JOHNSON CONTROLS A19EBB-1C Line V Mechanical Thermostat 24 to 600VAC 16A
Item: AG9MLUModel: A19EBB-1CCross Ref: 20XJ42
7 In Stock
Ships within 2 days via
10.00% off
€245.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Line Volt Mechanical Tstat |
| Application | Heat Only |
| Color | Gray |
| Contact Rating Resistive @ 120v | 22A |
| Contact Rating Resistive @ 120v | 16A |
| Contact Rating Resistive @ 240v | 22A |
| Contact Rating Resistive @ 240v | 16A |
| Contact Rating Resistive @ 277v | 22A |
| Contact Rating Resistive @ 277v | 16A |
| Depth | 1 13/16" |
| Differential | +9°F to +36°F |
| Enclosure Color | Gray |
| Enclosure Finish | Galvanized |
| Enclosure Material | Steel |
| Enclosure Nema Rating | 1 |
| Full Load Amps @ 120v | 15A |
| Full Load Amps @ 120v | 15A , 16A |
| Full Load Amps @ 240v Ac | 8A |
| Full Load Amps @ 240vac | 8A |
| Height | 4 13/32" |
| Includes | Remote Sensing Bulb |
| Inductive Amps @ 120v | 16A |
| Inductive Amps @ 208v | 9.2A |
| Inductive Amps @ 240v | 8A |
| Locked Rotor Amps @ 120v | 96A |
| Locked Rotor Amps @ 240v | 48A |
| Maximum Control Temperature | 350°F |
| Maximum Operating Temperature | 350°F |
| Minimum Control Temperature | 100°F |
| Minimum Operating Temperature | 100°F |
| Mounting Direction | Horizontal, Vertical |
| Mounting Type | Flat Flange |
| Number Of Heating Stages | 1 |
| Number Of Poles | 1 |
| Number Of Relay Control Output | 0 |
| Number Of Relay Inputs | 0 |
| Number Of Switches | 1 |
| Operating Temperature Range | 100°F to 350°F |
| Overall Depth | 14 5/8" |
| Overall Height | 4 7/16" |
| Overall Width | 2 13/16" |
| Pilot Duty Contacts | 125 VA |
| Pilot Duty Contacts (va) | 125VA |
| Pilot Duty Rating | 125 VA @ 24 to 277V AC |
| Product Datasheet | johnson-controls-a19ebb-1c.pdf |
| Remote Sensing Bulb Included | Yes |
| Remote Sensing Capability | Yes |
| Resistive Amps @ 208v Ac | 16A |
| Resistive Amps @ 208vac | 16A |
| Sensing Bulb Dia. | 3/8" |
| Sensor Dia. | 3/8" |
| Sensor Location | Remote |
| Sensor Type | Hydraulic Air Coil |
| Switch Action | Open On Rise |
| Switch Type | SPST |
| Temp. Differential | 9°F to 36°F |
| Temperature Scale | Fahrenheit |
| Voltage | 120-277V AC |
| Width | 2 5/32" |
Shipping Info:
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 11.27 |
| Ship length (cm) | 4.6 |
| Ship width (cm) | 7.14 |
| Country of Origin | MX |
Product Details:
- Thermostat Programmable : No
- Thermostat Heating/Cooling : Heating/Cooling
- Remote Sensing Bulb Included : Yes
- Inductive Amps @ 208V : 9.2A
Documentation:
Product Variants
| Product | Model | Input Voltage | Amps | Switch Action | Switch Type | Voltage | Full Load Amps @ 240v Ac | Height | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A19ABC-24C | Open/Close On Rise | 120-277V AC | 1 7/8" | 1 | 4 3/8" | 2 1/8" | 22A | 22A | €212.91 | |
 |
A19ANC-1C | Open/Close On Rise | 120-277V AC | 3 3/8" | 3R | 4 1/8" | 4 1/8" | 16A | 8A | €579.06 | |
 |
A19BBC-2C | Open/Close On Rise | 120-277V AC | 1 13/16" | 1 | 4 3/8" | 2 1/8" | 22A | 22A | €265.46 | |
 |
A19AAF-21C | Close On Fall/Open | 120-277V AC | 2" | - | 4 3/8" | 2 1/8" | 10A | 10A | €254.70 | |
 |
A19AAF-4C | Open, Close On Rise | 120-277V AC | 1 7/8" | 1 | 4 3/8" | 2 1/8" | 10A | 10A | - | RFQ
|
|
A19ABA-49C | Close On Rise | 120-277V AC | 1 7/8" | 1 | 4 3/8" | 2 1/8" | 22A | 22A | €259.02 | |
|
A19ABC-41C | Open/Close On Rise | 24-600V AC | 1 7/8" | 1 | 4 3/8" | 2 1/8" | 22A | 22A | €291.50 |
