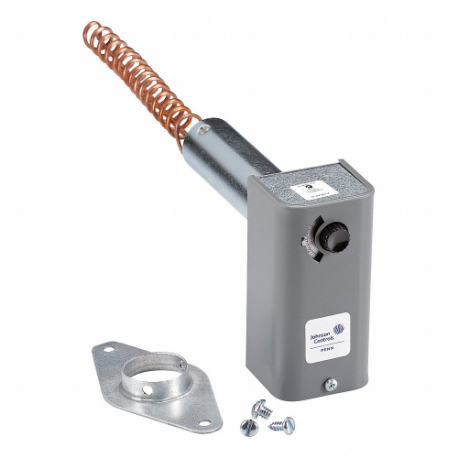

JOHNSON CONTROLS A19EAF-2C Line Volt Mechanical Tstat, Heat or Cool, 1H/1C, Steel, NEMA 1
Item: CR6ARTModel: A19EAF-2CCross Ref: 38Y074
7 In Stock
Ships within 2 days via
5.00% off
€303.50 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Line Volt Mechanical Tstat |
| Application | Heat Or Cool |
| Contact Rating Resistive @ 120v | 10A |
| Contact Rating Resistive @ 240v | 10A |
| Contact Rating Resistive @ 277v | 10A |
| Contact Type | Snap Action |
| Depth | 14 5/8" |
| Enclosure Color | Gray |
| Enclosure Finish | Galvanized |
| Enclosure Material | Steel |
| Enclosure Nema Rating | NEMA 1 |
| Full Load Amps @ 120v | 6A |
| Full Load Amps @ 240v Ac | 3A |
| Height | 4 3/8" |
| Inductive Amps @ 120v | 6A |
| Inductive Amps @ 208v | 3.4A |
| Inductive Amps @ 240v | 3A |
| Locked Rotor Amps @ 120v | 36A |
| Locked Rotor Amps @ 240v | 18A |
| Max. Control Temp. | 110°F |
| Max. Operating Temp. | 240°F |
| Min. Control Temp. | 30°F |
| Min. Operating Temp. | -30°F |
| Number Of Cooling Stages | 1 |
| Number Of Heating Stages | 1 |
| Number Of Poles | 1 |
| Number Of Switches | 1 |
| Operating Temperature Range | -30°F to +240°F |
| Overall Depth | 14 5/8" |
| Overall Height | 4 3/8" |
| Overall Width | 2 1/8" |
| Pilot Duty | 125VA @ 24 To 277V AC |
| Pilot Duty Rating | 125 VA @ 24 to 277V AC |
| Product Datasheet | johnson-controls-a19eaf-2c.pdf |
| Resistive Amps @ 208v Ac | 10A |
| Sensor Type | Hydraulic Air Coil |
| Switch Action | Open, Close On Rise |
| Switch Type | SPDT |
| Temp. Range | -30°F to +240°F |
| Temp. Sensitivity | -2°F to +2°F |
| Temperature Differential | 2°F |
| Temperature Scale | Celsius, Fahrenheit |
| Voltage | 24-277V AC |
| Width | 2 1/8" |
Shipping Info:
| Ship weight (kg) | 0.78 |
| Ship height (cm) | 11.11 |
| Ship length (cm) | 37.15 |
| Ship width (cm) | 5.4 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Switch Action | Overall Depth | Voltage | Overall Height | Overall Width | Enclosure Nema Rating | Contact Rating Resistive @ 120v | Contact Rating Resistive @ 240v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A19BAG-1E | Open On Rise | 2 3/16" | 120V AC | 5 1/2" | 2 3/16" | NEMA 1 | 13A | - | €199.95 | |
 |
A19ABA-40C | Close On Rise | 1 7/8" | 120-277V AC | 4 3/8" | 2 1/8" | 1 | 22A | 22A | €171.26 | |
 |
A19ABC-24C | Open/Close On Rise | 1 7/8" | 120-277V AC | 4 3/8" | 2 1/8" | 1 | 22A | 22A | €212.91 | |
 |
A19ANC-1C | Open/Close On Rise | 3 3/8" | 120-277V AC | 4 1/8" | 4 1/8" | 3R | 16A | 8A | €579.06 | |
 |
A19BBC-2C | Open/Close On Rise | 1 13/16" | 120-277V AC | 4 3/8" | 2 1/8" | 1 | 22A | 22A | €265.46 | |
 |
A19PRC-1C | Open/Close On Rise | 2 7/8" | 24-277V AC | 5 5/8" | 2 13/16" | 4X | 22A | 22A | €553.85 | |
|
A19AAF-21C | Close On Fall/Open | 2" | 120-277V AC | 4 3/8" | 2 1/8" | - | 10A | 10A | €254.70 |
