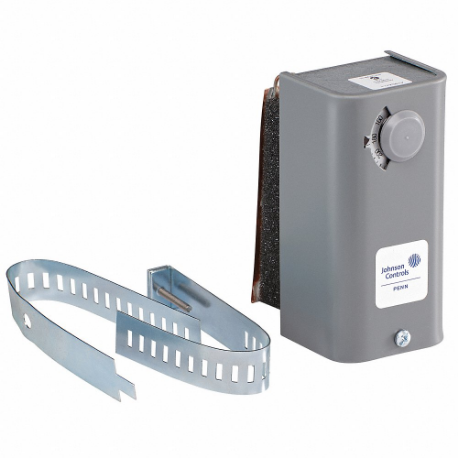

JOHNSON CONTROLS A19DAC-1C Line Volt Mechanical Tstat, Heat and Cool, 100 Deg to 240 Deg F
Item: CR6ARPModel: A19DAC-1CCross Ref: 38Y073
7 In Stock
Ships within 2 days via
10.00% off
€155.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Line Volt Mechanical Tstat |
| Application | Heat And Cool |
| Color | Gray |
| Contact Rating | 120/240V AC |
| Contact Rating Resistive @ 120v | 10A |
| Contact Rating Resistive @ 240v | 6A |
| Contact Type | Snap Action |
| Control Type | Knob, Screwdriver |
| Depth | 1 13/16" |
| Differential Type | Adjustable |
| Electrical Connection Type | Hardwired |
| Enclosure Color | Gray |
| Enclosure Finish | Baked Enamel |
| Enclosure Material | Steel |
| Enclosure Nema Rating | NEMA 1 |
| Enclosure Type | Single Gang Box |
| Full Load Amps @ 120v | 10A |
| Full Load Amps @ 120v Ac | 10A |
| Full Load Amps @ 240v Ac | 6A |
| Height | 4 3/8" |
| Includes | Adjustable Mounting Straps |
| Inductive Amps @ 120v | 10A |
| Inductive Amps @ 240v | 6A |
| Locked Rotor Amps @ 120v | 60A |
| Locked Rotor Amps @ 240v | 36A |
| Max. Control Temp. | 240°F |
| Max. Operating Temp. | 140°F |
| Min. Control Temp. | 100°F |
| Mounting Direction | Horizontal, Vertical |
| Number Of Poles | 1 |
| Number Of Relay Control Output | 1 |
| Number Of Relay Inputs | 1 |
| Number Of Switches | 1 |
| Overall Depth | 1 13/16" |
| Overall Height | 4 3/8" |
| Overall Width | 2 1/8" |
| Pilot Duty | 125 A @ 24 To 277V AC |
| Pilot Duty Contacts (va) | 125 VA |
| Pilot Duty Rating | 125A @ 24-277V AC |
| Remote Sensing Bulb Included | No |
| Remote Sensing Capability | No |
| Sensor Location | Remote |
| Sensor Type | Copper Bulb |
| Switch Action | Open, Close On Rise |
| Switch Type | SPDT |
| Temp. Sensitivity | -4°F to +4°F |
| Temperature Differential | 10°F |
| Temperature Scale | Fahrenheit |
| Temperature Sensitivity | -4°F to +4°F |
| Thermostat Programmable | No |
| Thermostat Type | Line Voltage |
| Voltage | 24-277V AC |
| Width | 2 1/8" |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 11.11 |
| Ship length (cm) | 4.6 |
| Ship width (cm) | 5.4 |
| Country of Origin | MX |
Product Variants
| Product | Model | Input Voltage | Amps | Switch Action | Switch Type | Voltage | Full Load Amps @ 240v Ac | Height | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A19BAG-1E | 120V AC | 13A | Open On Rise | SPST | 120V AC | - | 5 1/2" | - | €199.95 | |
 |
A19ABA-40C | 120-277V AC | - | Close On Rise | SPST | 120-277V AC | 8A | 4 3/8" | Surface Mount | €171.26 | |
 |
A19ABC-24C | 120-277V AC | - | Open/Close On Rise | SPDT | 120-277V AC | 8A | 4 3/8" | Surface Mount | €212.91 | |
 |
A19ANC-1C | 120-277V AC | - | Open/Close On Rise | SPDT | 120-277V AC | 8A | 4 1/16" | Surface Mount | €579.06 | |
 |
A19BBC-2C | 120-277V AC | - | Open/Close On Rise | SPDT | 120-277V AC | 8A | 4 3/8" | Flat Surface | €265.46 | |
 |
A19PRC-1C | 24-277V AC | - | Open/Close On Rise | SPDT | 24-277V AC | 8A | 5 5/8" | Flat Surface | €553.85 | |
|
A19AAF-21C | - | - | Close On Fall/Open | - | 120-277V AC | 3A | 4 13/32" | Flat Surface | €254.70 |
