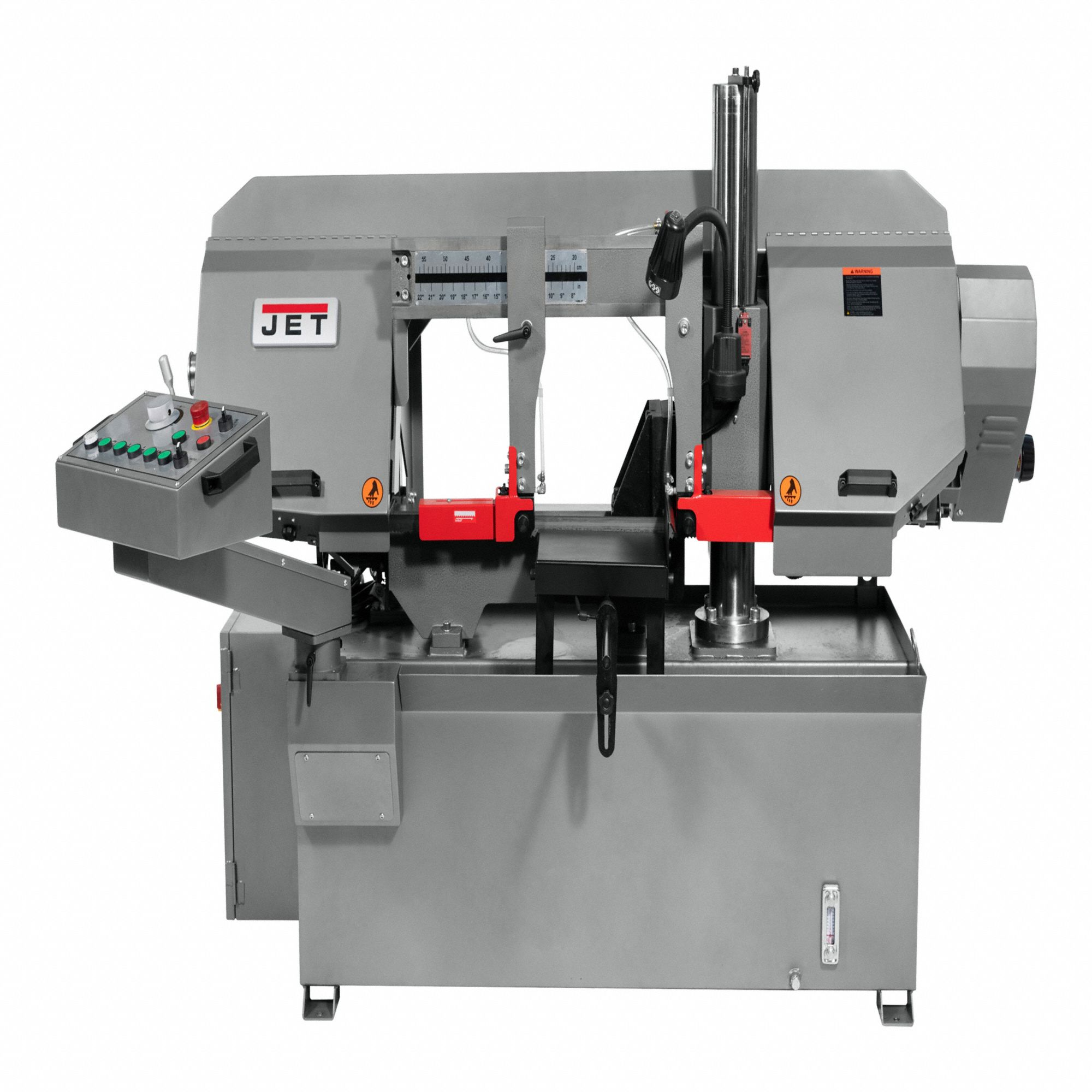

JET TOOLS JT9-413400 HBS-1220DC Band Saw, 12 Inch x 20 in, 95 to 295, 90 Deg, 7.6/3.8 A, 3 Phase, 230/460VAC
Get it by Wednesday, Apr 1
5.00% off
€21,274.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Band Saw |
| Amps | 7.6/3.8A |
| Amps Ac | 7.6/3.8A |
| Band Saw Operation | Semi-Automatic |
| Band Saw Type | Horizontal |
| Bed Height | 27" |
| Blade Dia. | 16" |
| Blade Length | 155 1/2" |
| Blade Size | 1 1/8" x 0.043" x 155 1/2" |
| Blade Speed | 86 SFPM, 157 SFPM, 228 SFPM, 330 SFPM |
| Blade Wheel Dia. | 16" |
| Blade Wheel Diameter | 16" |
| Blade Wheels Dia. | 16" |
| Coolant Pump Motor Hp | 1/8 hp |
| Coolant Pump Motor Voltage | 230/460V |
| Cutting Capacity Square | 12" |
| Cutting Height (vertical) | 12" |
| Drive | Mechanical Variable Speed |
| Electrics Voltage | 230/460V |
| Features | Heavy Duty Construction, Powerful Gearbox, Reduces Vibration And Deflection, Two Column Design |
| Frequency | 60 Hz |
| Horsepower | 3 hp |
| Includes | Bed, Blade, Coolant |
| Material Application | Hard Aluminum, Hard Bronze, Hard Cast Iron, Medium Hard Brass & Bronze, Mild Steel, Plastics, Soft Aluminum, Soft Brass & Bronze, Soft Cast Iron, Stainless Steel, Tool Steel |
| Max. Blade Length | 155 1/2" |
| Max. Blade Width | 1/32" |
| Miter Angle Range | 90° |
| Motor Hp | 3 hp |
| Motor Voltage | 230/460V |
| No. Of Coolant Pump Motor Phase | 3 |
| No. Of Electrics Phase | 3 |
| No. Of Motor Phase | 1 |
| No. Of Oil Pump Motor Phase | 3 |
| Number Of Speed Settings | Variable |
| Oil Pump Motor Hp | 1 hp |
| Oil Pump Motor Voltage | 230/460V |
| Operation Type | Semi Automatic |
| Overall Depth | 81" |
| Overall Dimensions | 81" x 42 1/2" x 54 1/2" |
| Overall Height | 54 1/2" |
| Overall Width | 42 1/2" |
| Phase | 3 |
| Power Source | Corded |
| Prewired Voltage | 230V |
| Rectangle At 90 Degrees | 12" x 20" |
| Rectangular Cutting Capacity | 12" x 20" |
| Rectangular Cutting Capacity - Horizontal | 12" x 20" |
| Round At 90 Degrees | 12" |
| Round Cutting Capacity | 12" |
| Round Cutting Capacity - Horizontal | 12" |
| Sfpm Range | 95 SFPM to 295 SFPM |
| Square At 90 Degrees | 12" |
| Throat Depth | 12" , 12" x 12" |
| Throat Depth - Vertical | 12" |
| Type | Horizontal |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 639 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Voltage | Phase | Sfpm Range | Miter Angle Range | Throat Depth | Blade Length | Max. Blade Length | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

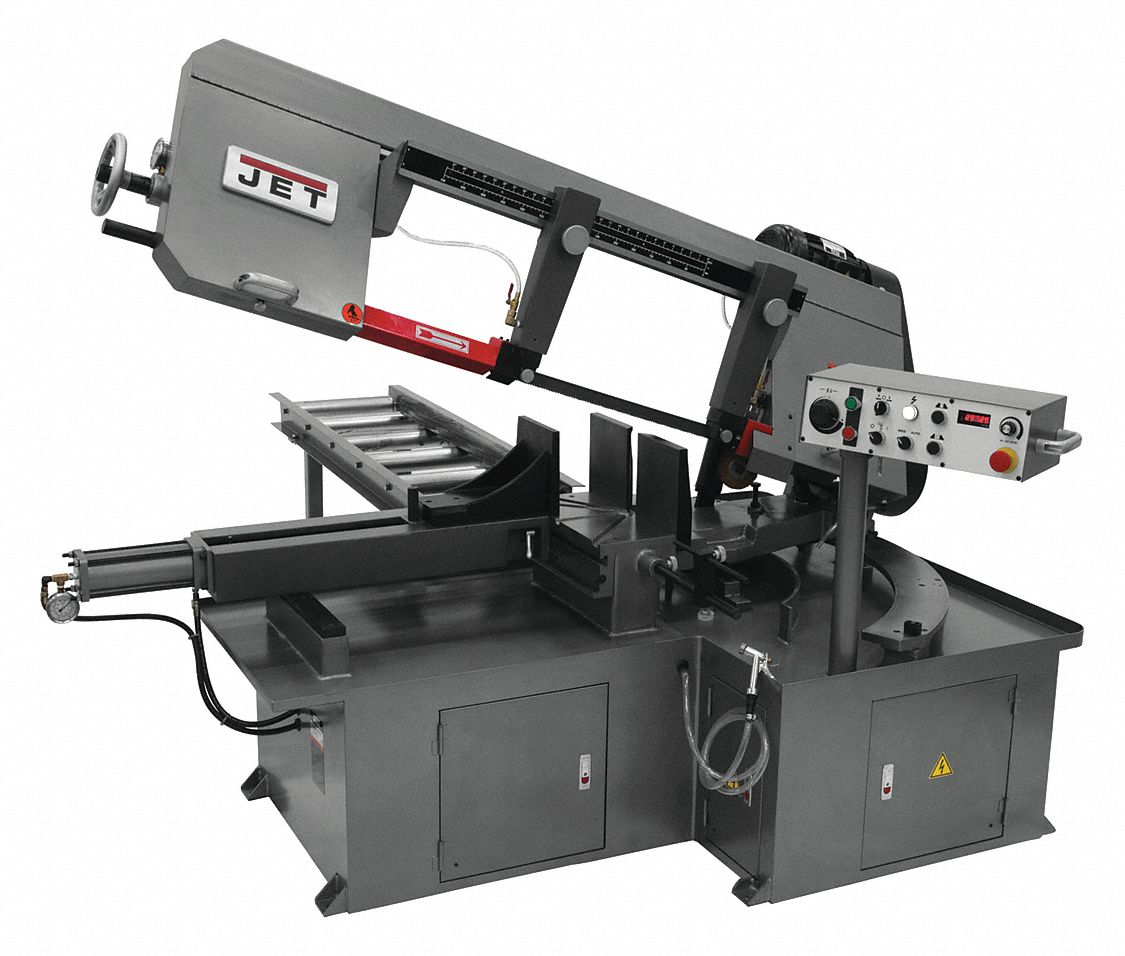

JT9-413412 | 230V AC | 3 | 50 SFPM to 275 SFPM | 45°, 90° | - | 174" | 172" | 51" | €30,029.96 | |
 |

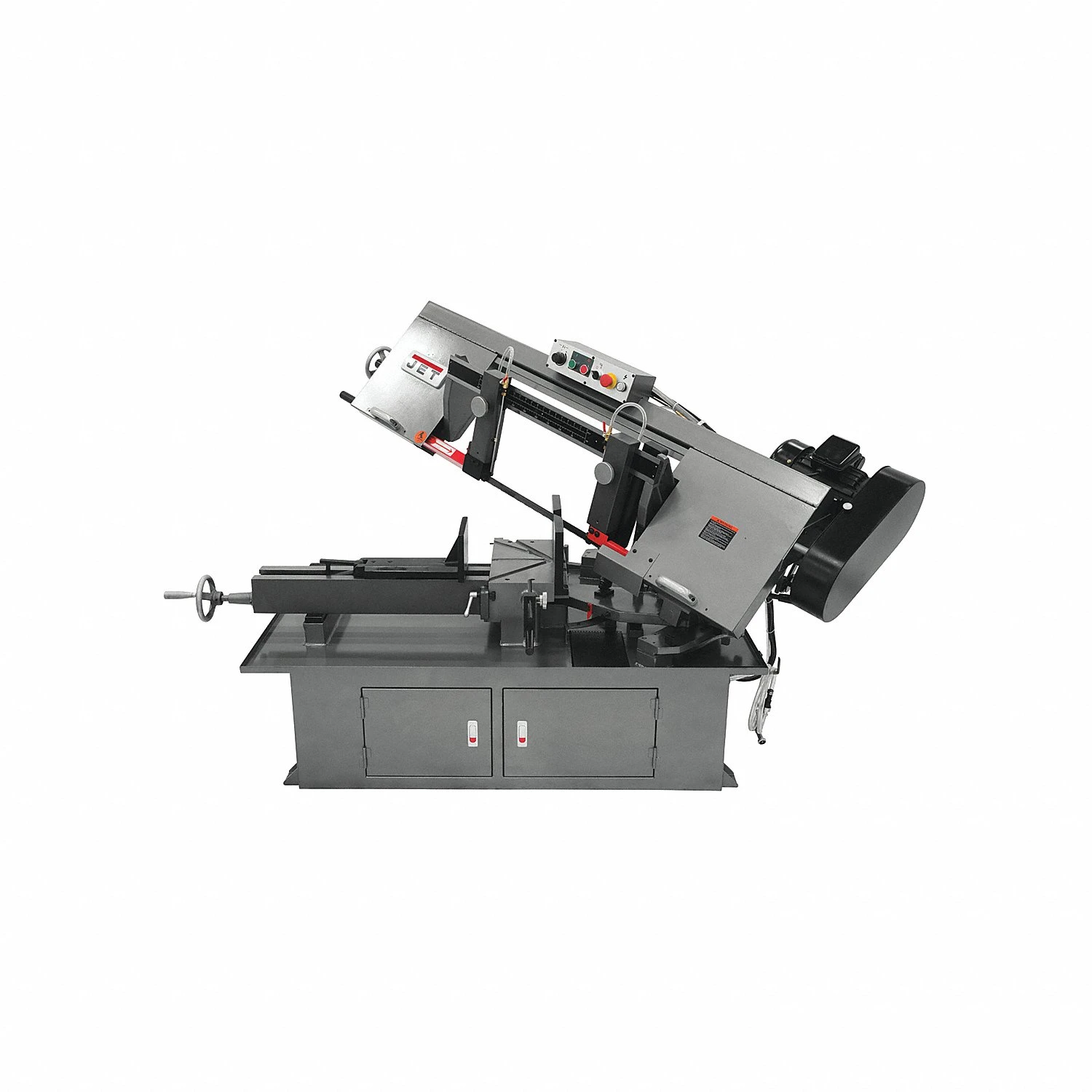

JT9-413410 | 230/460V AC | 3 | 50 SFPM to 275 SFPM | 60° Left to 45° Right | - | 12 ft. | 144" | 44 1/2" | €12,595.79 | |
|
JT9-413411 | 230V AC | 1 | 50 SFPM to 275 SFPM | 60° Left to 45° Right | - | 12 ft. | 144" | 44 1/2" | €12,641.07 | |
 |

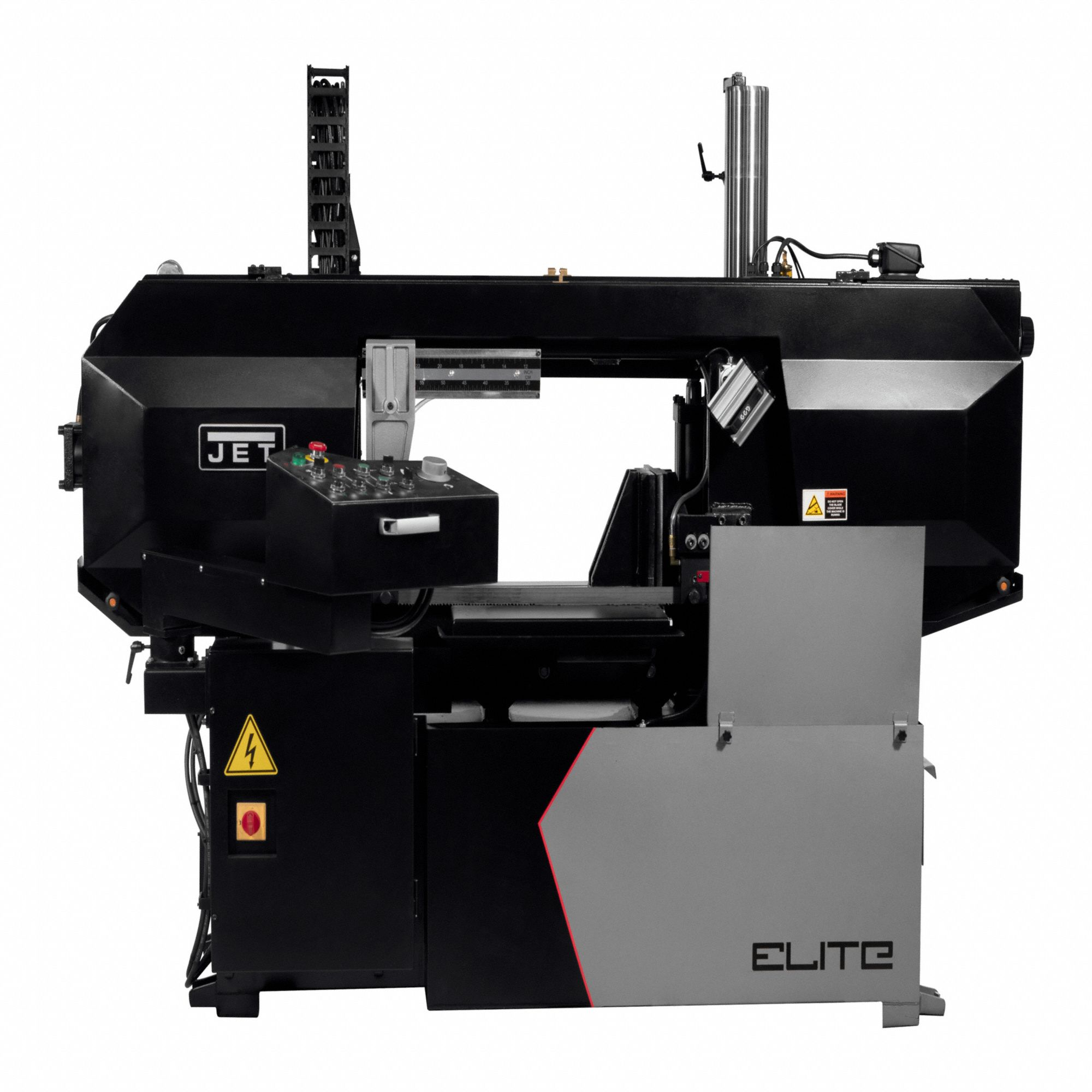

JT9-891160 | 230/460V AC | 3 | 75 SFPM to 250 SFPM | 90° | 14" | 192 1/2" | 192 1/2" | 72 23/32" | €44,237.81 | |
 |

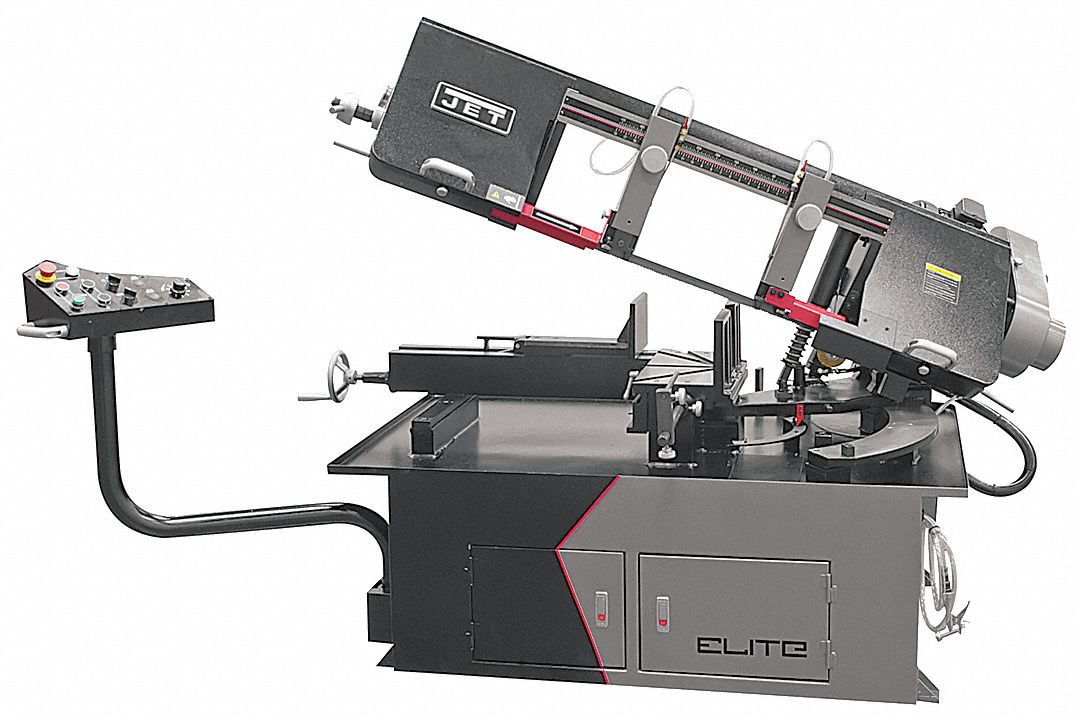

JT9-891080 | 230/460V AC | 3 | 53 SFPM to 275 SFPM | 45° Left to 60° Right | - | 12 ft. | 144" | 44" | €20,156.51 | |
 |

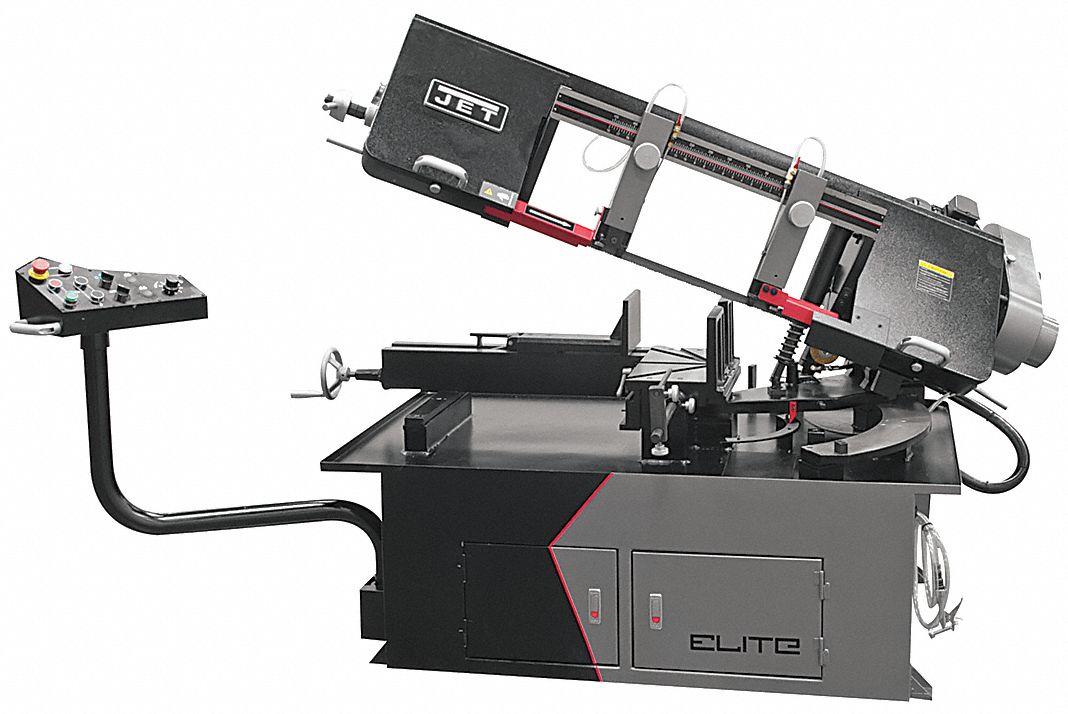

JT9-891070 | 230/460V AC | 3 | 53 SFPM to 275 SFPM | 45° Left to 60° Right | - | 12 ft. | 144" | 44" | €18,282.71 |
