JET TOOLS JT9-354245 JDP20EVST-230-PDF Floor Drill Press, Belt, Variable, 225 RPM 2000 RPM, 230 VAC /Three-Phase
Get it by Tuesday, Dec 23
10.00% off
€10,228.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Floor Drill Press |
| Amps | 9.2A |
| Application | Drilling, Tapping |
| Base Length | 27" |
| Base Width | 19" |
| Chuck Size | 3/4" |
| Chuck Style | Keyed |
| Column Dia. | 4 1/2" |
| Coolant System | Yes |
| Drill Press Application | Drilling |
| Drill Press Type | Floor Stand |
| Drilling Capacity In Cast Iron | 2 5/32" |
| Drilling Capacity In Stainless Steel | 1 3/8" |
| Drilling Capacity In Steel | 2" |
| Drilling Capacity In Wood | 2 5/32" |
| Drive Type | Belt |
| Guard Included | Yes |
| Hp | 2 hp |
| Includes | Chuck Guard |
| Length | 42 1/2" |
| Max. Overall Height | 78 3/4" |
| Max. Spindle Speed | 2000 RPM |
| Maximum Spindle To Base Height | 44.688" |
| Maximum Spindle To Table Height | 25 1/2" |
| Maximum Spindle-to-base Height | 44 11/16" |
| Min. Spindle Speed | 225 RPM |
| Motor Voltage | 230V AC, 3-Phase |
| Number Of Speeds | Variable |
| Number Of Spindle Speeds | Variable |
| Number Of T-slots | 2 |
| Overall Length | 42 1/2" |
| Phase | 3 |
| Power Downfeed Included | Yes |
| Power Source | Corded |
| Primary Material Application | Metal |
| Quill Dia. | 2.953" |
| Quill Diameter | 2 61/64" |
| Radial Arm | No |
| Speed Control | Variable |
| Speed Control Type | Mechanical Variable Speed Drive System |
| Spindle Speed | 65-2000 RPM |
| Spindle Speed Range | 225-2000 RPM |
| Spindle Taper | 3MT |
| Spindle To Column Distance | 10.438" |
| Spindle Travel | 6" |
| Spindle-to-column Distance | 10 7/16" |
| Swing | 20" |
| Table Length | 22" |
| Table Load Capacity | 154 lbs. |
| Table Shape | Rectangular |
| Table Slot | Yes |
| Table Slot Width | 5/8" |
| Table Width | 18 3/4" |
| Tapping Capacity In Stainless Steel | 3/4" |
| Tapping Capacity In Steel | 1" |
| Tapping Compatible | Yes |
| Tool Weight | 847 lbs. |
| Voltage | 230V AC |
Shipping Info:
| Ship weight (kg) | 356.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Voltage | Phase | Speed Control | Swing | Drilling Capacity In Steel | Spindle Travel | Application | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

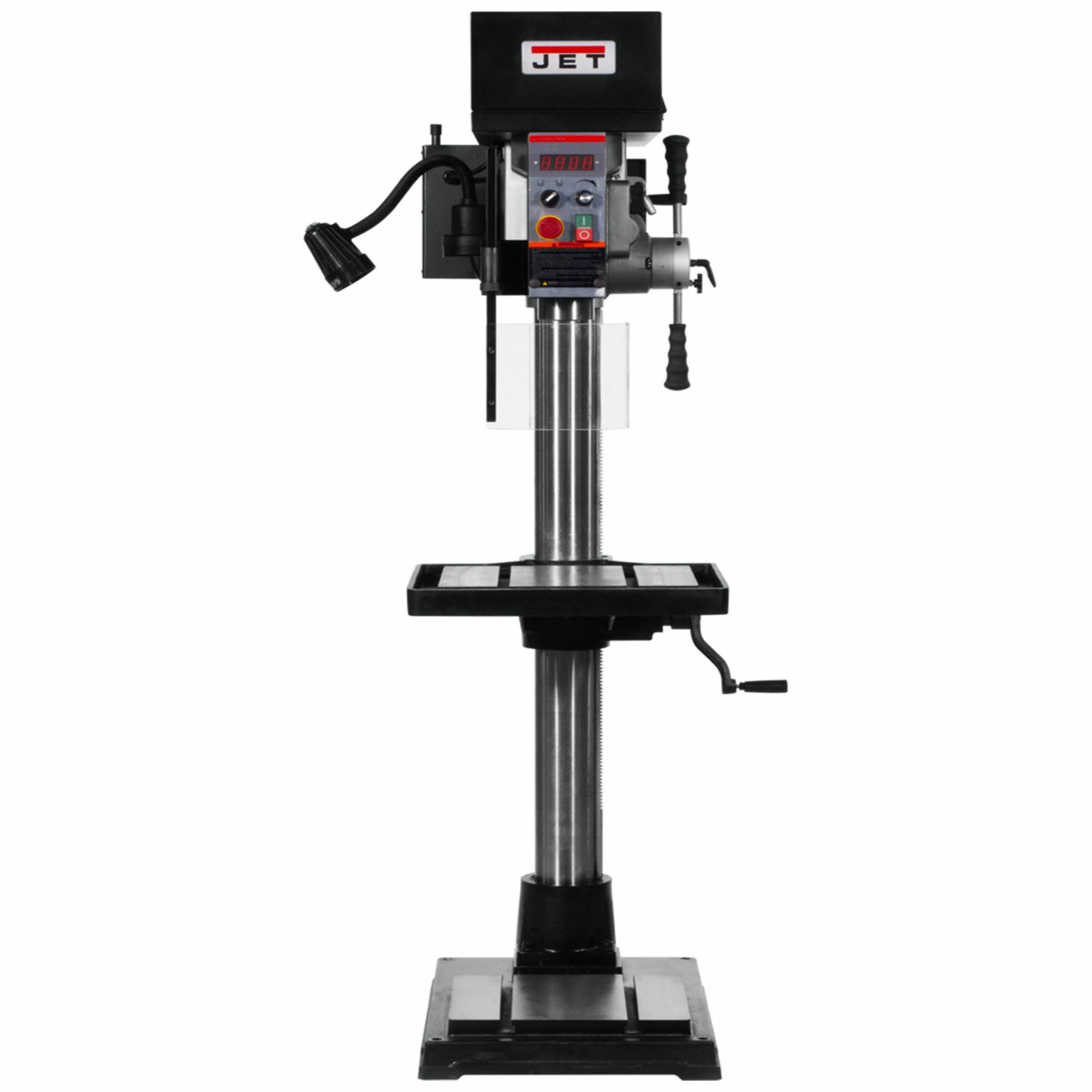

JT9-354250 | 230V AC | 3 | Variable | 19 3/4" | 1 1/8" | 5" | Heavy Drilling | 4.6A | €6,958.63 | |
 |

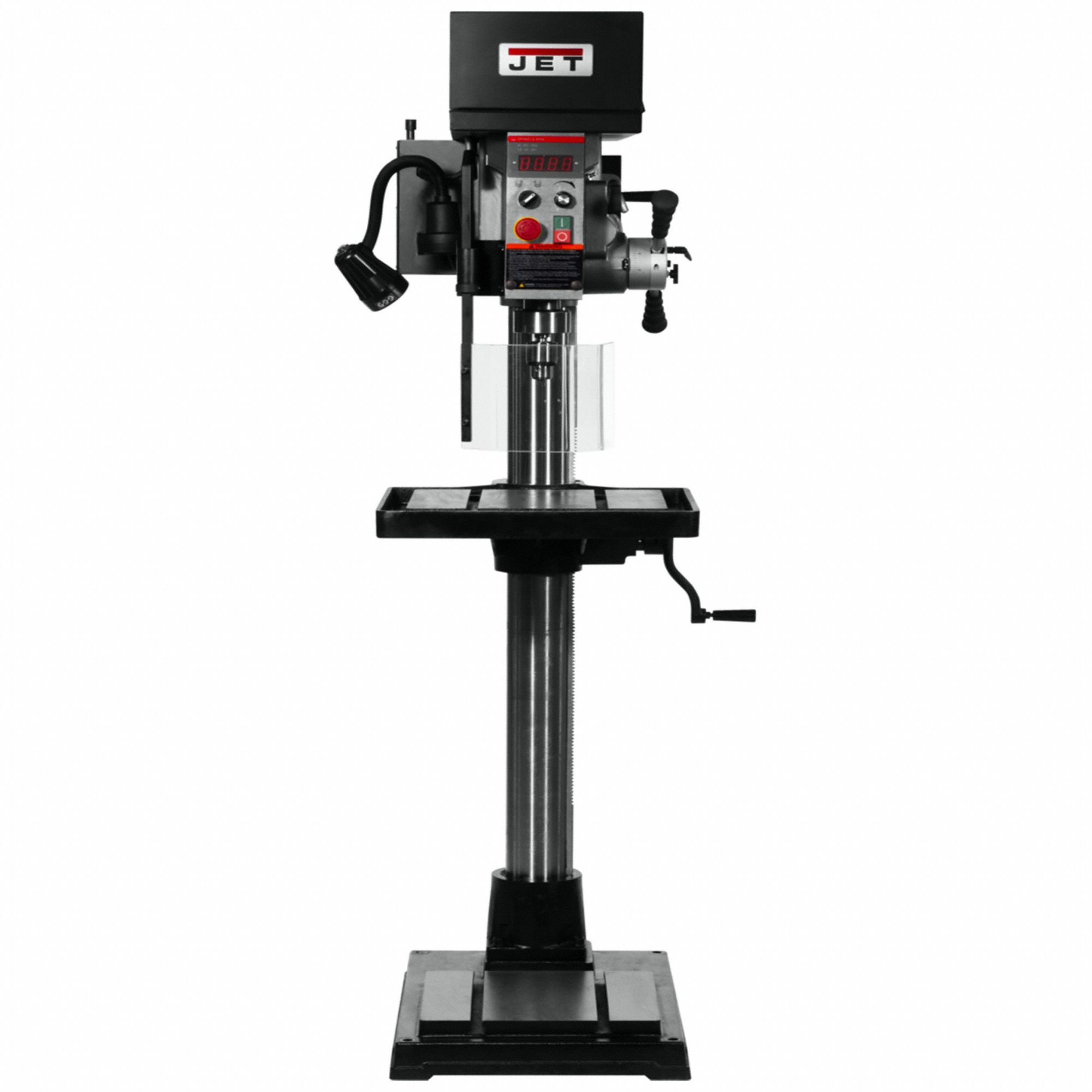

JT9-354251 | 230V AC | 3 | Variable | 19 3/4" | 1 1/8" | 5" | Heavy Drilling | 4.6A | €7,848.96 | |
 |

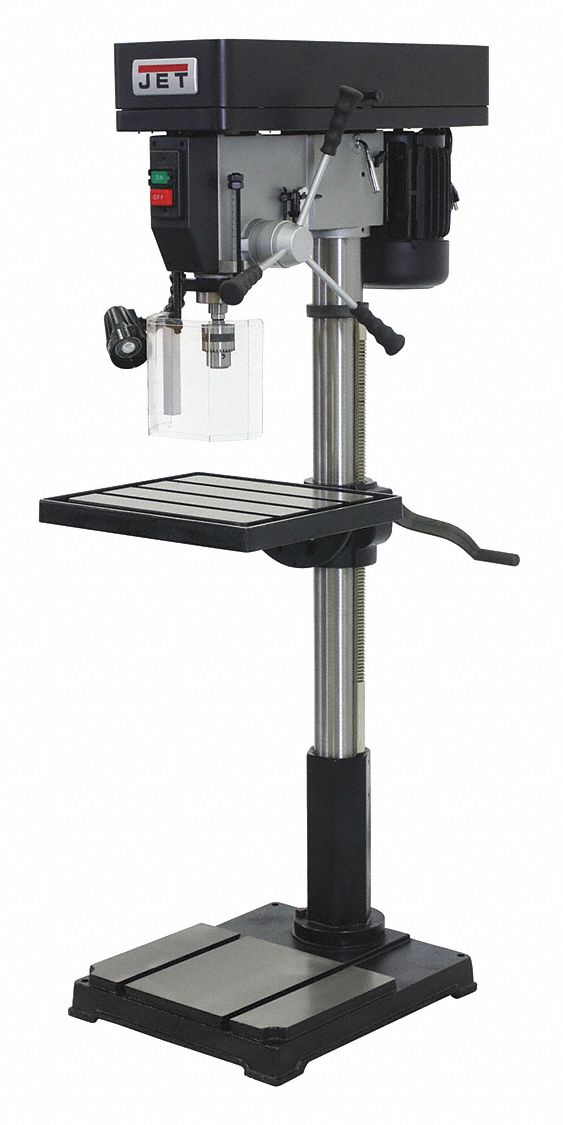

JT9-354301 | 115/230V AC | 1 | Fixed | 21 7/8" | 1" | 4.812" | Drilling | 7.6A | €3,731.13 | |
 |

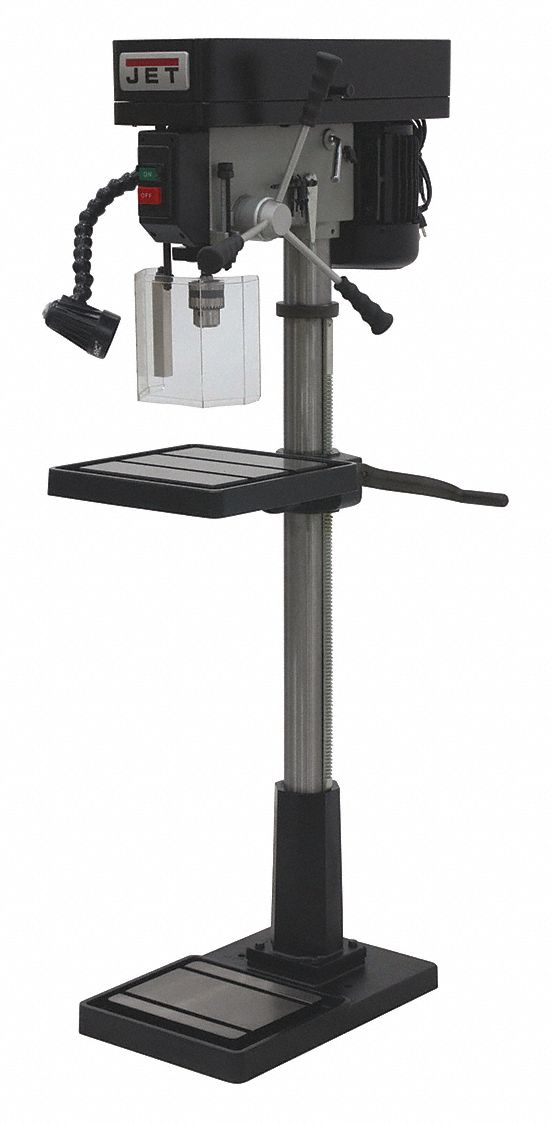

JT9-354300 | 115/230V AC | 1 | Fixed | 16 7/8" | 5/8" | 3.312" | Drilling | - | €2,898.44 | |
|
JT9-JDP20EVST-460-PDF | 460V AC | 3 | Variable | 20" | 2" | 6" | Drilling | 9.2A | €11,474.65 | |
 |
JT9-354220 | 120V AC | 1 | Variable | 20" | 1 3/8" | 6" | Drilling, Tapping | 9.2A | €8,287.34 | |
 |

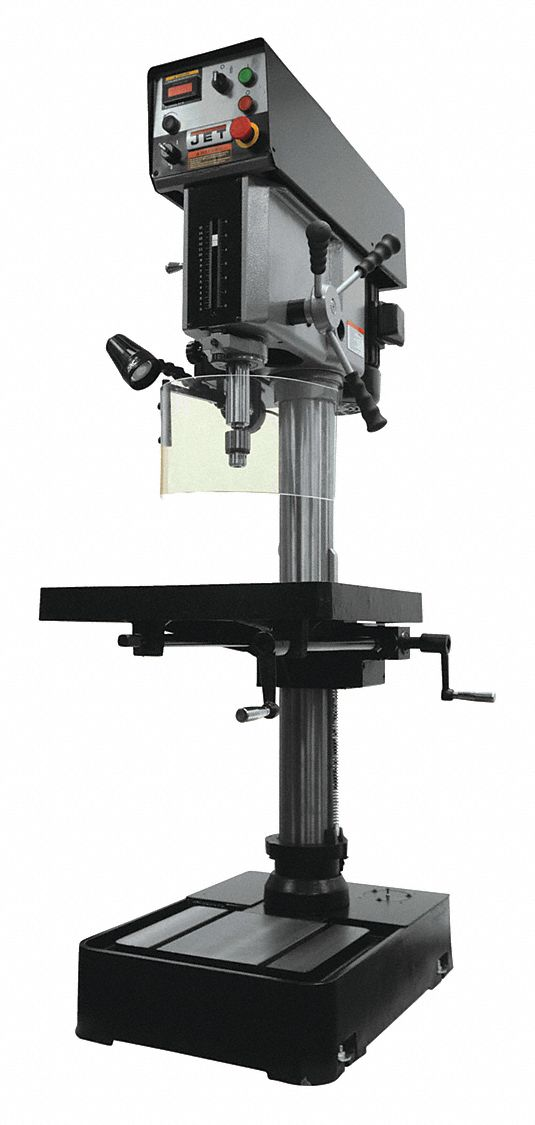

JT9-354240 | 230V AC | 3 | Variable | 20" | 1 3/8" | 6" | Drilling, Tapping | 7/6.6A | €8,769.48 |
