JET TOOLS 698068 Knee/Column Milling Machine, 12 Inch Table Length, 54 Inch Table Width | CR4ZLA 53ZC77

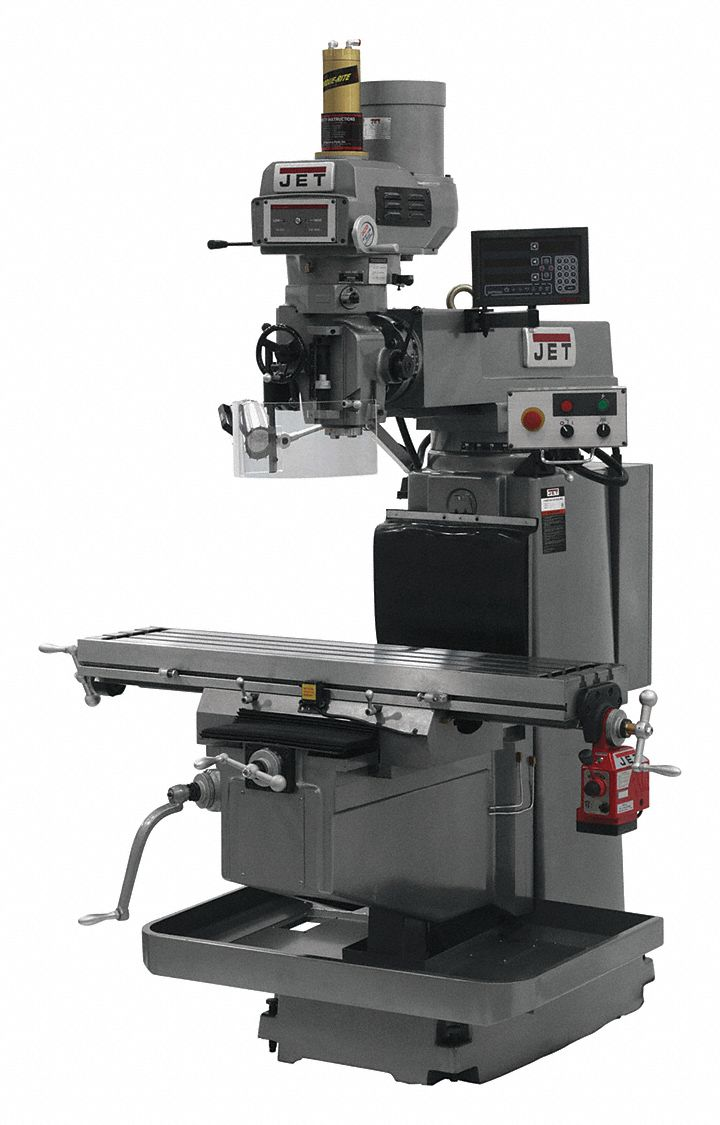

JET TOOLS JT9-698068 Knee/Column Milling Machine, 12 Inch Table Length, 54 Inch Table Width

Item: CR4ZLAModel: JT9-698068Cross Ref: 53ZC77
Check Availability
In Stock

Get it by Friday, Dec 19

€40,938.27
10.00% off
€36,844.44 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Machine
Amps 6.5/13A
Collet Capacity - Maximum 1"
Collet Capacity - Minimum 1/8"
Column Width 14 1/4"
Cross Travel - Maximum 15 5/16"
Digital Readout Included Newall Dp700
Drawbar Style Air Powered
Frequency 60 Hz
Head Swivel - Left 90°
Head Swivel - Right 90°
Included Powerfeeds X-Axis Powerfeed
Includes Digital Readout Digital Readout Included
Knee Travel - Maximum 19 1/4"
Left-hand Head Tilt 90°
Length 79 7/8"
Longitudinal Travel 33 7/8"
Longitudinal Travel - Maximum 33 7/8"
Max. Spindle Speed 3800 RPM
Max. Spindle To Column Distance 27 3/4"
Max. Spindle To Table Distance 23"
Min. Spindle Speed 80 RPM
Min. Spindle To Column Distance 7 1/2"
Min. Spindle To Table Distance 23"
Motor Hp 5 hp
Motor Speed - Maximum 1720 RPM
Motor Type Totally Enclosed Fan-Cooled
No. Of Axis 2
Number Of Spindle Speeds Variable
Number Of T-slots 3
Overall Depth 59"
Overall Height 96 1/2"
Overall Width 82"
Phase 3
Power Draw Bar Pneumatic
Quill Dia. 4 1/8"
Ram Travel - Maximum 25"
Ram Travel Length 25"
Ram Turret Swivel 90°
Right-hand Head Tilt 90°
Series JTM-1254VS Series
Sound Level 72 dBA
Spindle Taper NT40
Spindle Taper Size RP_NST40
Spindle Travel - Maximum 5"
Spindle Travel Length 5"
Spindle-to-table Distance 23"
Standards Csa/Cus
T-slot Depth 3/4"
T-slot Width 5/8"
Table Depth 12"
Table Length 12"
Table Load Capacity 925 lbs.
Table Width 54"
Voltage 230/460V

Shipping Info:

Ship weight (kg) 1663.2
Ship height (cm)2.54
Ship length (cm)234
Ship width (cm)202.88
Country of OriginTW

Product Variants

ProductModelTable WidthTable Load CapacityMotor HpLongitudinal TravelVoltageMin. Spindle SpeedMax. Spindle SpeedNumber Of Spindle SpeedsPrice
JET TOOLS 698059 Knee and Column Milling Machine | CR4ZJJ 56LZ57 JT9-698059--------€37,205.03
JET TOOLS 690621 Knee and Column Milling Machine, 10 Inch Table Length, 50 Inch Table Width | CR4ZJK 48RJ06 JT9-69062150"840 lbs.3 hp35.333"230V60 RPM4500 RPMVariable€34,724.86
JET TOOLS 691050 Knee and Column Milling Machine, 10 Inch Table Length, 50 Inch Table Width | CR4ZJL 56LZ23 JT9-69105050"840 lbs.3 hp34 1/4"230/460V60 RPM4200 RPMVariable€21,168.33
JET TOOLS 690620 Knee and Column Milling Machine, 10 Inch Table Length, 50 Inch Table Width | CR4ZJM 56LZ69 JT9-69062050"840 lbs.3 hp35.333"230V60 RPM4500 RPMVariable€32,843.00
JET TOOLS 690680 Knee and Column Milling Machine, 10 Inch Table Length, 50 Inch Table Width | CR4ZJN 56LZ72 JT9-69068050"840 lbs.3 hp35.333"230V60 RPM4500 RPMVariable€38,231.32
JET TOOLS 690619 Knee and Column Milling Machine, 10 Inch Table Length, 50 Inch Table Width | CR4ZJP 56LZ68 JT9-69061950"840 lbs.3 hp35.333"230V60 RPM4500 RPMVariable€30,405.42
JET TOOLS 690601 Knee and Column Milling Machine, 10 Inch Table Length, 50 Inch Table Width | CR4ZJQ 56LZ67 JT9-69060150"840 lbs.3 hp35.333"230V60 RPM4500 RPMVariable€26,300.07
