MASON Isolator Vibration
Filter
A
B
C
D| Style | Model | Max. Rod Dia. | Isolator Material | Overall Width | Overall Depth | Max. Rated Capacity | Overall Height | Color Mark | Spring Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

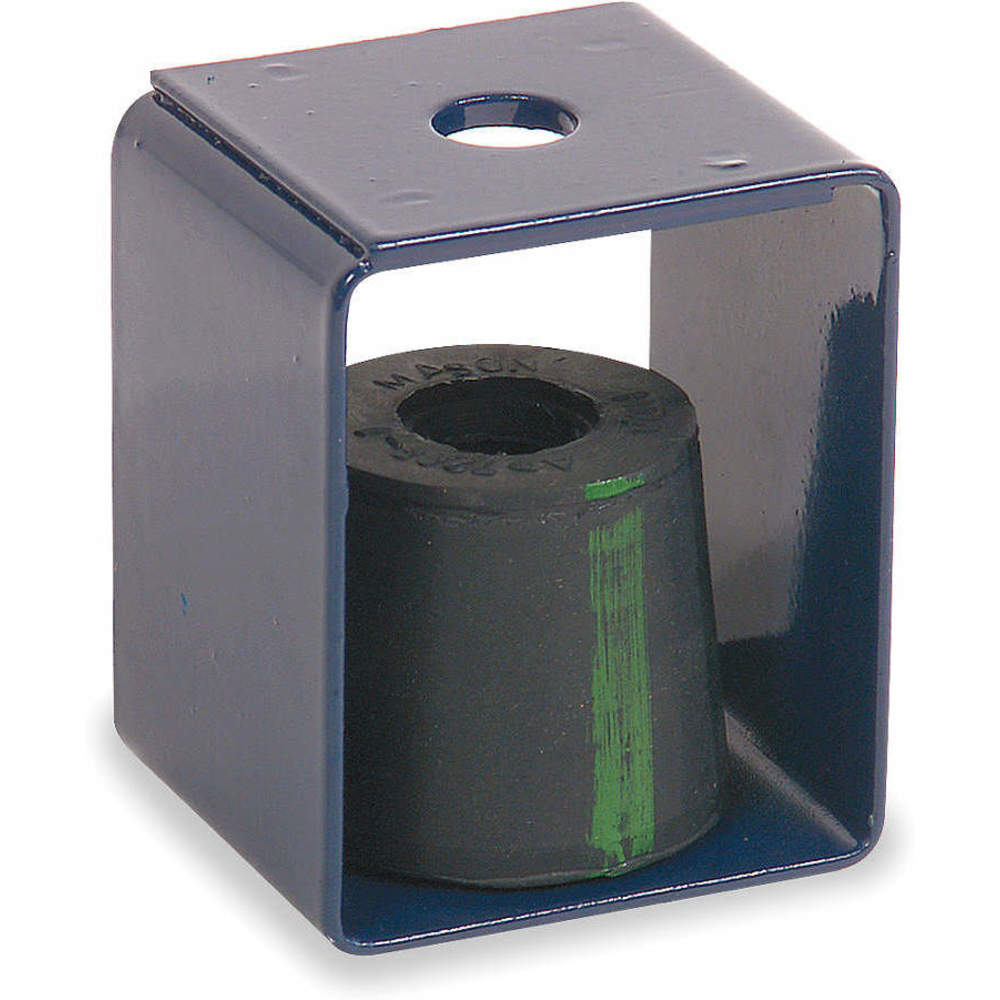

| A | 4C879 | 1/2" | Neoprene | 2 1/4" | 2" | 125 lbs. | 2 3/4" | Red | Red | €27.00 | |

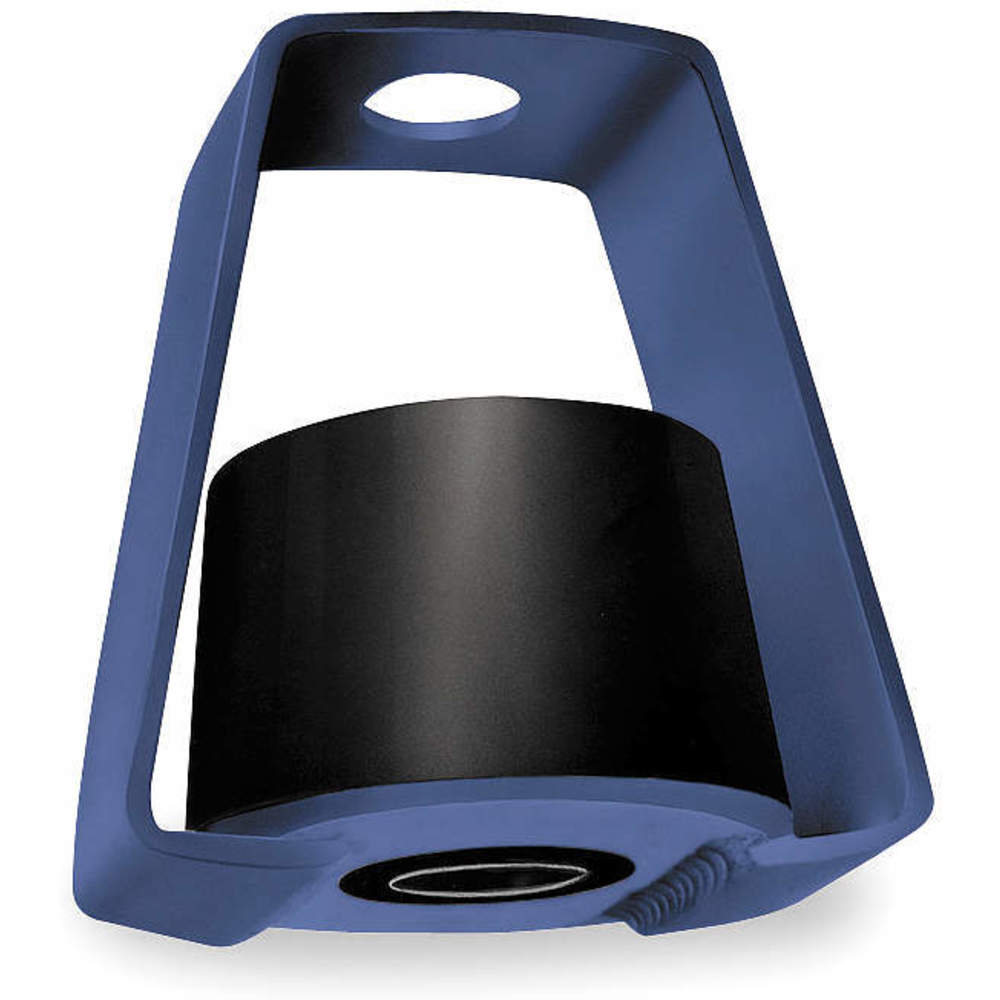

| B | 4C878 | 1/2" | Neoprene | 2 1/4" | 2" | 45 lbs. | 2 3/4" | Black | Black | €27.00 | |
| B | 5XR52 | 3/4" | Neoprene | 4 1/4" | 3 1/4" | 650 lbs. | 4 1/2" | Yellow | Yellow | €46.57 | |
| C | 5C148 | 3/4" | Spring | 4 3/4" | 4" | 750 lbs. | 7 1/4" | White | White | €91.63 | |
| D | 5C150 | 3/4" | Spring | 4 3/4" | 4" | 1000 lbs. | 7 1/4" | Blue | Blue | €95.44 | |
| D | 5C151 | 3/4" | Spring | 4 3/4" | 4" | 1250 lbs. | 7 1/4" | Gray | Gray | €95.43 | |
| B | 5XR53 | 3/4" | Neoprene | 4 1/4" | 3 1/4" | 1000 lbs. | 4 1/2" | Blue | Blue | €67.41 | |
| C | 5C143 | 3/8" | Spring | 2 7/8" | 2 1/2" | 175 lbs. | 4 1/4" | Silver | Silver | €42.79 | |

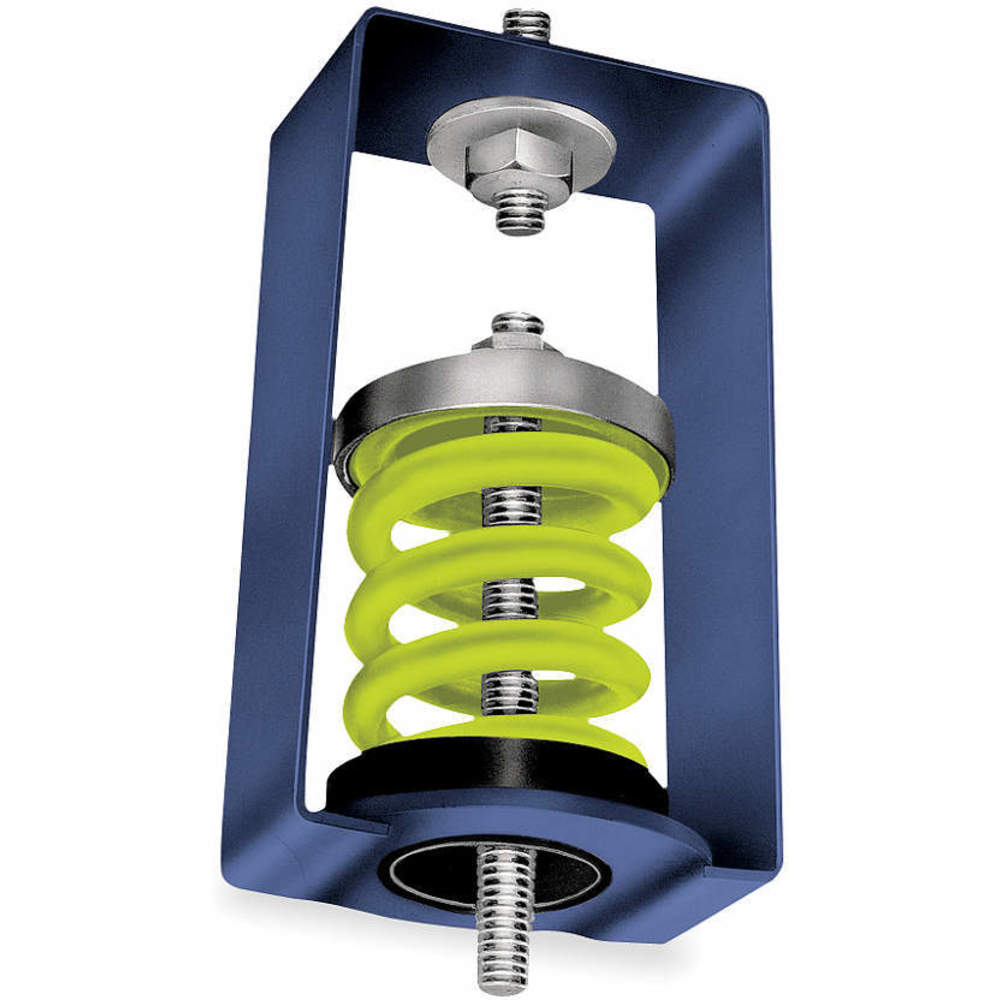

| D | 5C141 | 3/8" | Spring | 2 7/8" | 2 1/2" | 76 lbs. | 4 1/4" | Black | Black | €42.21 | |
| C | 5C142 | 3/8" | Spring | 2 7/8" | 2 1/2" | 113 lbs. | 4 1/4" | Yellow | Yellow | €42.19 | |
| C | 5XR56 | 5/8" | Spring | 3 1/4" | 2 3/4" | 310 lbs. | 5 3/4" | Yellow | Yellow | €62.16 | |
| C | 5C147 | 5/8" | Spring | 3 1/4" | 2 3/4" | 625 lbs. | 5 3/4" | White | White | €65.45 | |

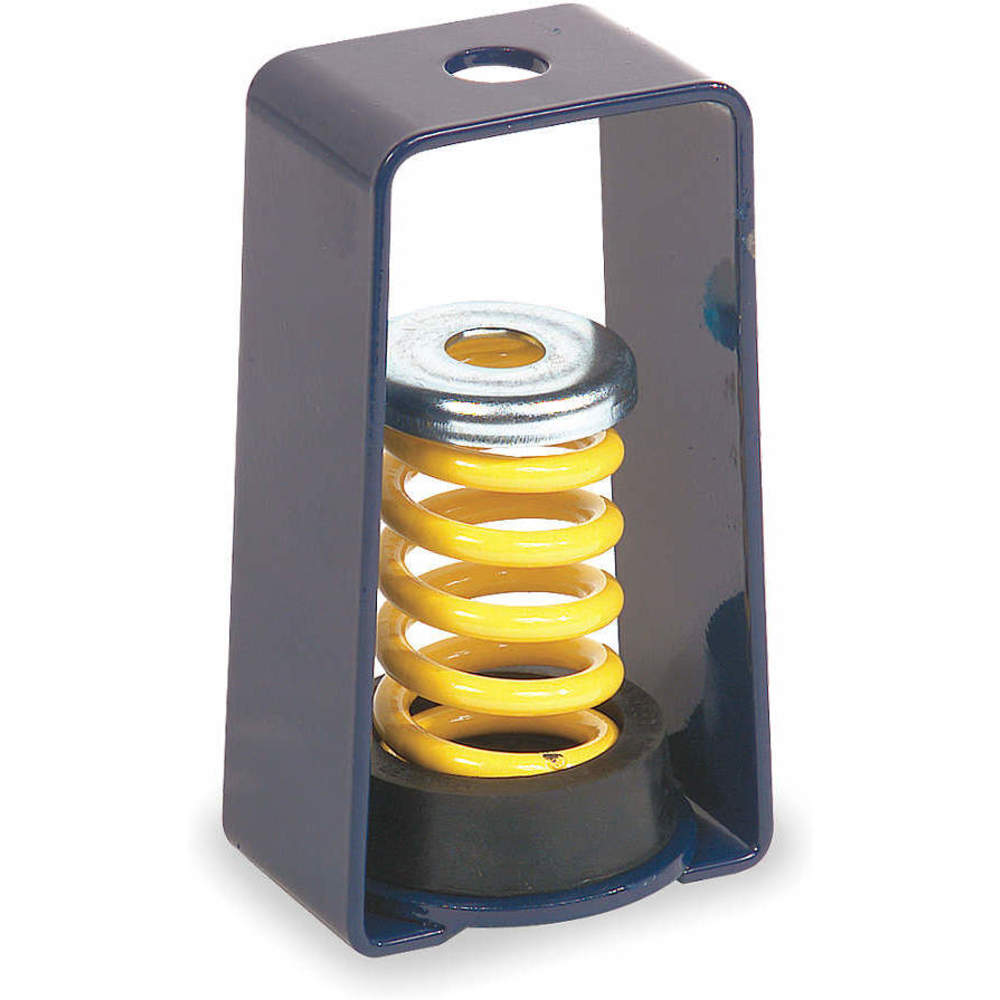

| C | 5C145 | 5/8" | Spring | 3 1/4" | 2 3/4" | 400 lbs. | 5 3/4" | Green | Green | €52.91 | |
| C | 5XR57 | 5/8" | Spring | 3 1/4" | 2 3/4" | 510 lbs. | 5 3/4" | Red | Red | €65.53 |
