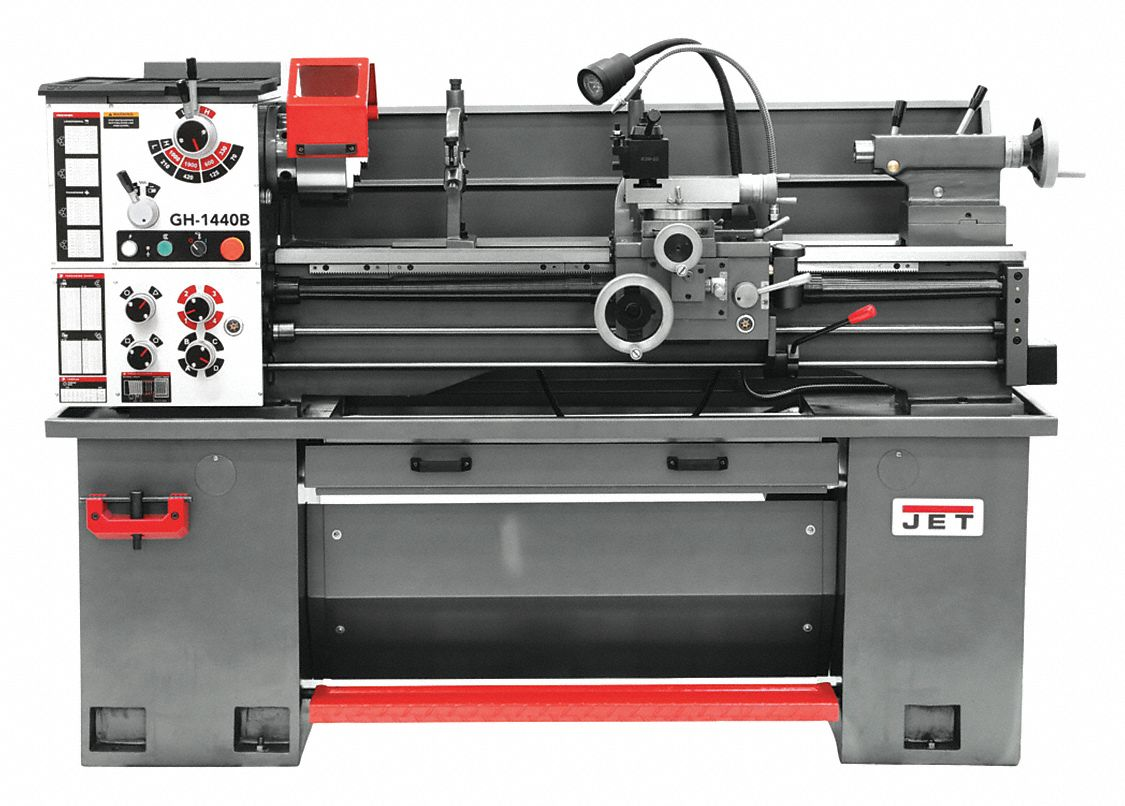

JET TOOLS JT9-323448 Lathes, Metal Turning, 14 Inch Size x 36 7/8 in, 2 Inch Size Spindle Bore, D1-5 Camlock
Get it by Tuesday, Dec 23
10.00% off
€25,164.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Lathe |
| Applications | Metal Turning |
| Bed Height | 12 3/4" |
| Bed Length | 54 1/2" |
| Bed Width | 7 8/25" |
| Carriage Travel - Maximum | 37 2/5" |
| Compound Slide Travel - Maximum | 3 1/2" |
| Cross Feed - Maximum | 0.0187 in./rev. |
| Cross Feed - Minimum | 0.007 in./rev. |
| Cross Slide Travel | 7 |
| Cross Slide Travel - Maximum | 7" |
| Digital Readout Included | Newall Dp500 |
| Distance Between Centers | 36 7/8" |
| Frequency | 60 Hz |
| Gap Length | 8" |
| Hp | 2 hp |
| Includes | Taper Attachment |
| Includes Collet Closer | No Collet Closer |
| Includes Digital Readout | Digital Readout Included |
| Includes Taper Attachment | Taper Attachment Included |
| Input Voltage (nominal) | 240V AC |
| Lathe Head Drive | Gear Drive |
| Length Of Gap | 8 |
| Longitudinal Feed - Maximum | 0.0548 in./rev. |
| Longitudinal Feed - Minimum | 0.002 in./rev. |
| Max. Cross Feed | 0.019" |
| Max. Metric Thread | 7 mm |
| Max. Spindle Speed | 1800 RPM |
| Max. Threads Per Inch | 80 |
| Metric Thread - Maximum | 7 mm |
| Min. Cross Feed | 0.007" |
| Min. Metric Thread | 0.4 mm |
| Min. Spindle Speed | 70 RPM |
| Min. Threads Per Inch | 3.5 |
| Number Of Inch Threads | 34 |
| Number Of Metric Threads | 26 |
| Number Of Spindle Speeds | 8 |
| Overall Depth | 76 13/32" |
| Overall Height | 59 13/16" |
| Overall Length | 75" |
| Overall Width | 29 29/32" |
| Phase | Single |
| Series | GH-1440B Series |
| Sound Level | 88 dBA |
| Spindle Bore | 2" |
| Spindle Bore Size | 2" |
| Spindle Nose Taper | D1-5 Camlock |
| Spindle Nose Type | D1-5 Camlock |
| Spindle Speed - Maximum | 1900 RPM |
| Swing In Gap | 20" |
| Swing Over Bed | 14" |
| Swing Over Cross Slide | 8" |
| Swing Over Gap | 20" |
| Tailstock Diameter | 1 1/4" |
| Tailstock Spindle Travel | 4" |
| Threads Per Inch - Maximum | 56 |
| Threads Per Inch - Minimum | 4 |
Shipping Info:
| Ship weight (kg) | 826.2 |
| Ship height (cm) | 151.92 |
| Ship length (cm) | 194.07 |
| Ship width (cm) | 75.96 |
| Country of Origin | CN |
Product Variants
| Product | Model | Overall Width | Swing Over Bed | Distance Between Centers | Spindle Bore | Overall Height | Number Of Inch Threads | Voltage | Number Of Metric Threads | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
JT9-719200 | 17.7" | 12 1/2" | 20 1/4" | 3/8" | 17.7" | - | 115V | - | €1,482.70 | |
 |
JT9-892000 | 30" | 12" | 36" | 1 9/16" | 60" | 34 | 230V AC | 34 | €23,741.00 | |
 |
JT9-892504 | 44" | 17" | 40" | 3 1/8" | 68" | 45 | 230/460V AC | 39 | €62,538.06 | |
|
JT9-892500 | 44" | 17" | 40" | 3 1/8" | 68" | 45 | 230/460V AC | 39 | €55,615.33 | |
 |
JT9-892506 | 44" | 17" | 40" | 3 1/8" | 68" | 45 | 230/460V AC | 39 | €66,949.24 | |
|
JT9-892501 | 44" | 17" | 40" | 3 1/8" | 68" | 45 | 230/460V AC | 39 | €54,534.84 | |
|
JT9-892502 | 44" | 17" | 40" | 3 1/8" | 68" | 45 | 230/460V AC | 39 | €59,521.67 |
