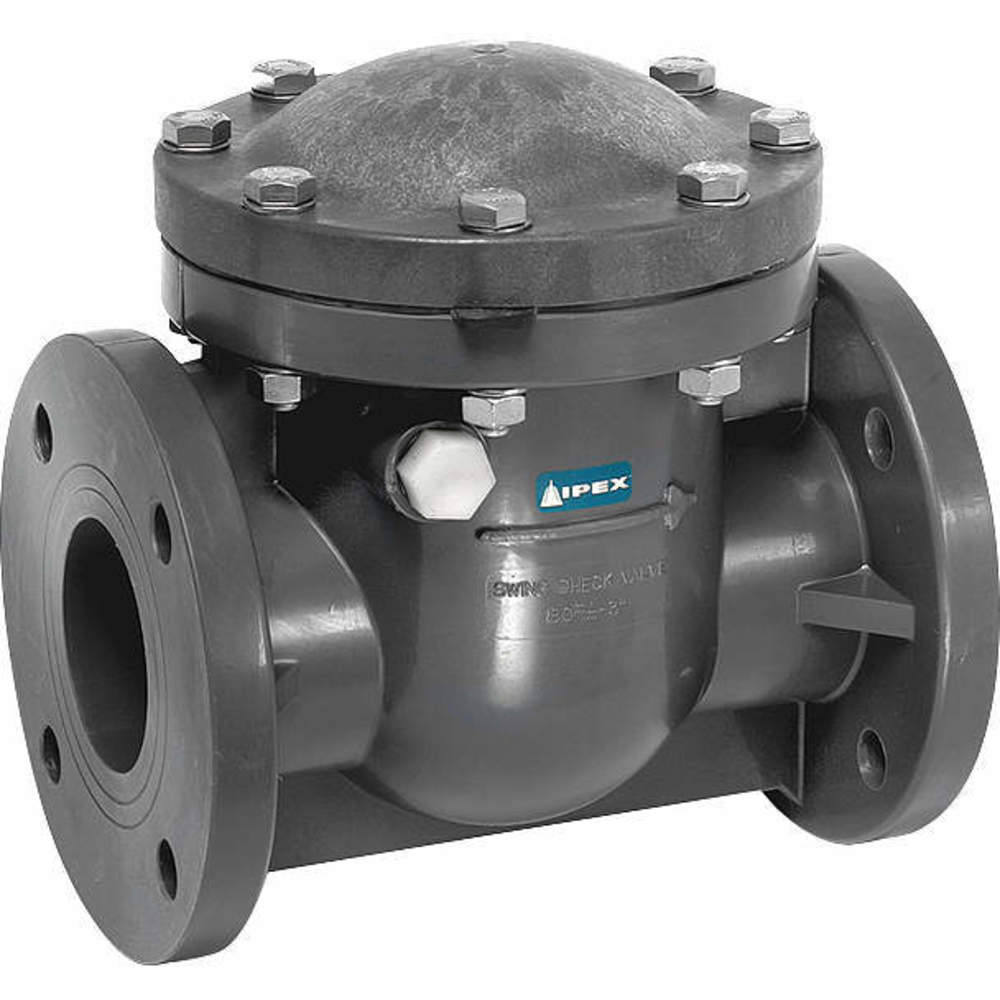

IPEX USA LLC SCOV110 Swing Check Valve Pvc 3 Inch Flanged
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,066.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swing Check Valve |
| 3-a Compliance | Not Rated |
| Ansi Flange Class | Class 150 |
| Body Material | PVC |
| Cap To Inlet Center | 6.719" |
| Cap To Inlet Center | 6-23/32" |
| Check Mechanism | Swing |
| Connection Size - Side 1 | 3" |
| Connection Size - Side 2 | 3" |
| Connection Type | Flange x Flange |
| Connection Type - Side 1 | Flange |
| Connection Type - Side 2 | Flange |
| Cracking Pressure | 8.5 psi |
| Disc Material | PVC |
| Flow Rate | 920 GPM |
| For Media | Water |
| Height - Cap To Inlet Center | 6 3/4" |
| Hex Size | 5/8" |
| Length | 10 1/4" |
| Material | PVC |
| Max. Pressure (cwp) | 100 psi |
| Max. Pressure (steam) | Not Rated |
| Max. Temp. | 140°F |
| Media Temperature Range | 40°F to 140°F |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | 40°F |
| Overall Height | 10 1/2" |
| Overall Length | 10.25" |
| Pipe Size | 3" |
| Seal Material | EPDM |
| Seat Material | EPDM |
| Silent Check | Standard |
| Size | 3" |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | SC Series |
| Width | 8.062" |
Shipping Info:
| Ship weight (kg) | 5.94 |
| Ship height (cm) | 31.75 |
| Ship length (cm) | 29.46 |
| Ship width (cm) | 25.91 |
| HS code | 8481309000 |
| Country of Origin | TW |
Product Variants
| Model | Pipe Size | Seat Material | Cracking Pressure | Overall Height | Seal Material | Flow Rate | Hex Size | Cap To Inlet Center | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SCOV111 | 4" | EPDM | 10 psi | 12 1/8" | EPDM | 1500 GPM | 5/8" | 8 3/8" | €1,686.81 | |
| SCOV113 | 6" | EPDM | 12.5 psi | 15.312" | EPDM | 3450 GPM | 3/4" | 10.562" | €2,197.79 | |
| SCOV114 | 8" | EPDM | 12.5 psi | 18.312" | EPDM | 6000 GPM | 3/4" | 12.062" | €4,851.80 | |
| SCOV210 | 3" | FKM | 8.5 psi | 10 1/2" | FKM | 920 GPM | 5/8" | 6.719" | €1,422.63 | |
| SCOV211 | 4" | FKM | 10 psi | 12 1/8" | FKM | 1500 GPM | 5/8" | 8 3/8" | €2,033.28 | |
| SCOV213 | 6" | FKM | 12.5 psi | 15.312" | FKM | 3450 GPM | 3/4" | 10.562" | €3,770.77 | |
| SCOV214 | 8" | FKM | 12.5 psi | 18.312" | FKM | 6000 GPM | 3/4" | - | €6,064.76 |
