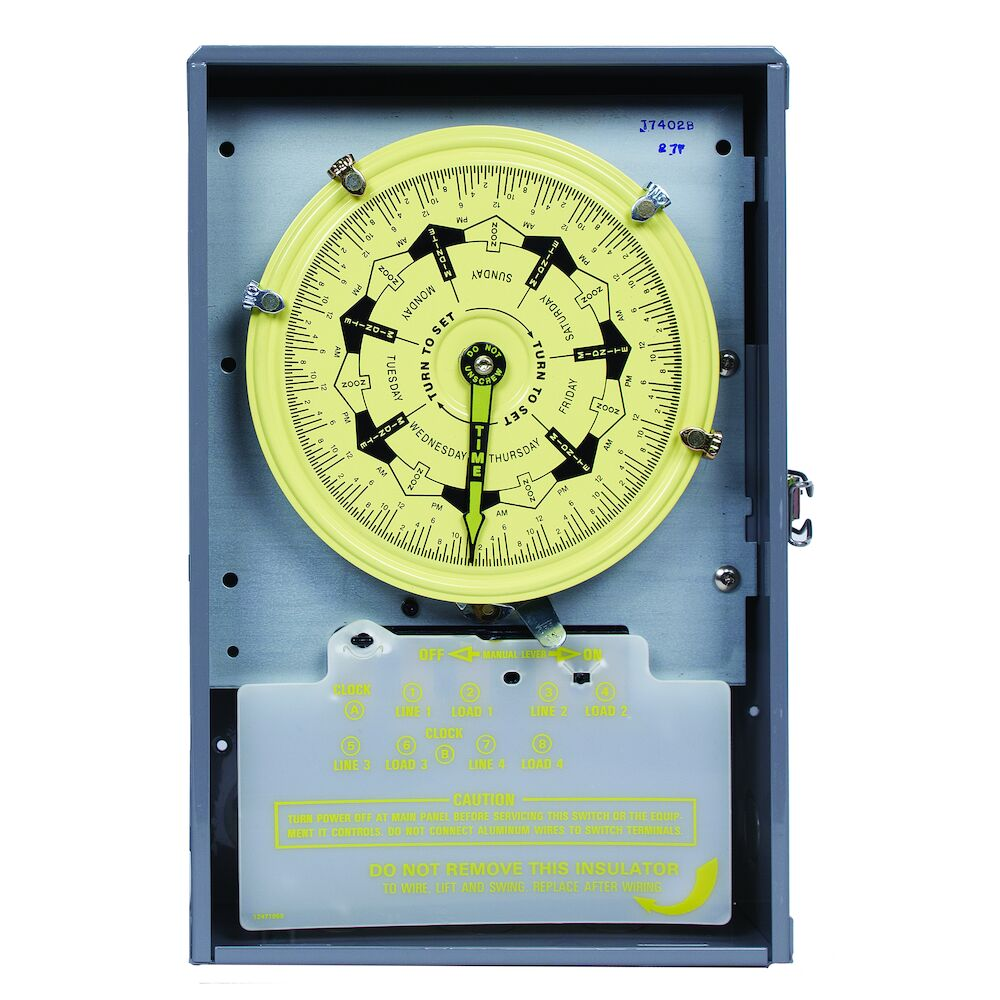

INTERMATIC T7402B Mechanical Time Switch, 208-277V AC, 60Hz, 4-SPST
Item: CY3HALModel: T7402BCross Ref: 242K87
7 In Stock
Ships within 2 days via
5.00% off
€437.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mechanical Timer |
| Amps Rating | 40A |
| Application | Heating, Air Conditioning, Pump, Indoor Lighting, Outdoor Lighting, Motor, Sign, Billboard, Ventilating System, Fan, Filter, 3-Phase Load |
| Comm Code Enhanced | 44100 |
| Contact | 4NO |
| Contact Form | 4NO 4PST |
| Dimension S | 12.5" x 8.25" x 4" |
| Electrical Connection | Screw |
| Family Series | Intermatic Relays, T7000B Series |
| Finish | Gray |
| Hp | 10 hp |
| Input Voltage | 208-277V |
| Material | Steel |
| Max. Amps | 16/40A |
| Mounting Type | Wall |
| No. Of Poles | 4 |
| Nominal Coil Voltage | 208/240/277V AC |
| Product Datasheet | intermatic-t7402b.pdf |
| Reserve Power | No |
| Series | T7000B Series |
| Termination | Screw Terminals |
| Time Range 10 Hrs. | 0 hr. to 1 hr., 0 hr. to 5 hrs., 0 hr. to 10 hrs. |
| Time Setting | 3.5 hrs. to 7 Days |
| Timer | 0 hr. to 5 hrs., 0 hr. to 10 hrs., 0 hr. to 24 hrs., 0 hr. to 48 hrs., 0 hr. to 72 hrs., 0 hr. to 100 hrs. |
| Type | Electro Mechanical |
Shipping Info:
| Ship weight (kg) | 4.64 |
| Ship height (cm) | 33.34 |
| Ship length (cm) | 9.53 |
| Ship width (cm) | 22.86 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Time Range 10 Hrs. | Type | Dimension S | Time Setting | Series | Timing Range | Input Voltage | Comm Code Enhanced | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
T7802B | 0 hr. to 1 hr., 0 hr. to 5 hrs., 0 hr. to 10 hrs. | Electro Mechanical | 12.5" x 8.25" x 4" | 3.5 hrs. to 7 Days | T7000B Series | 4 | - | - | €614.38 |
