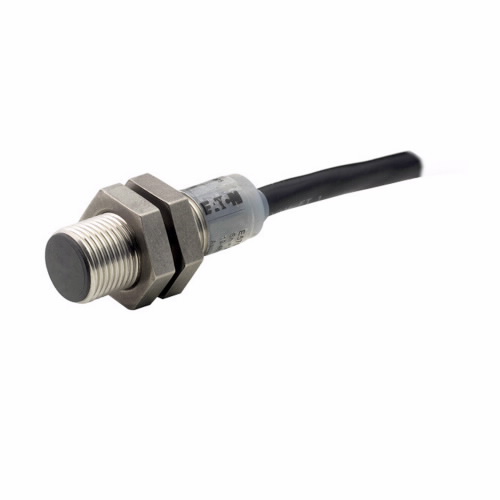

EATON E57SAL12T111 Inductive Proximity Sensor, Dist. 1 Mm, 250 mA At 6-48VDC, 6.6 Ft. Cable, 6-48 VDC Input
Get it by Tuesday, Dec 23
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Accuracy | Less Than 1% |
| Actuator Function | Shielded |
| Cable Length | 79.2 ft. |
| Cable Material | PVC |
| Connection | 6.6 Ft (2 M) Cable |
| Contact Configuration | PNP Open Collector, NO |
| Contact Rating | 250 mA at 6-48V DC |
| Enclosure Material | Stainless Steel |
| Input Voltage | 6-48V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | Output Status, Amber |
| Length | 0.47" |
| Max. Operating Temp. | 158°F |
| Maximum Dc Current | 500 mA |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Product Height | 2.46" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 0.47" |
| Protection Type | Short Circuit Protected |
| Sensor Type | Inductive Proximity |
| Warranty | 1 yr. |
| Weight | 0.17 lbs. |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 6.25 |
| Ship length (cm) | 1.19 |
| Ship width (cm) | 1.19 |
| Country of Origin | US |
Product Variants
| Product | Model | Ip Rating | Cable Length | Number Of Pins | Max. Operating Temp. | Min. Operating Temp. | Cable Material | Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
E57SAL12A2 | IP67, IP69K | 79.2 ft. | - | 158°F | -13°F | PVC | - | €497.05 | |
|
E57SAL12A2EA | IP67 | - | - | 158°F | -13°F | - | - | €512.52 | |
|
E57SAL12A2S5 | IP67, IP69K | 196.8 ft. | - | 158°F | -13°F | PVC | - | €380.07 | |
 |
E57SAL12T110E | IP67 | 79.2 ft. | - | 158°F | -13°F | PVC | - | €379.84 | |
|
E57SAL12A2SA | IP67 | - | - | 158°F | -13°F | - | - | €637.82 | |
 |
E57SAL12A2E | IP67, IP69K | 79.2 ft. | - | 158°F | -13°F | PVC | - | €686.36 | |
 |
E57SAL12T110ED | IP67, IP69K | - | - | 158°F | -13°F | - | - | €379.84 |
