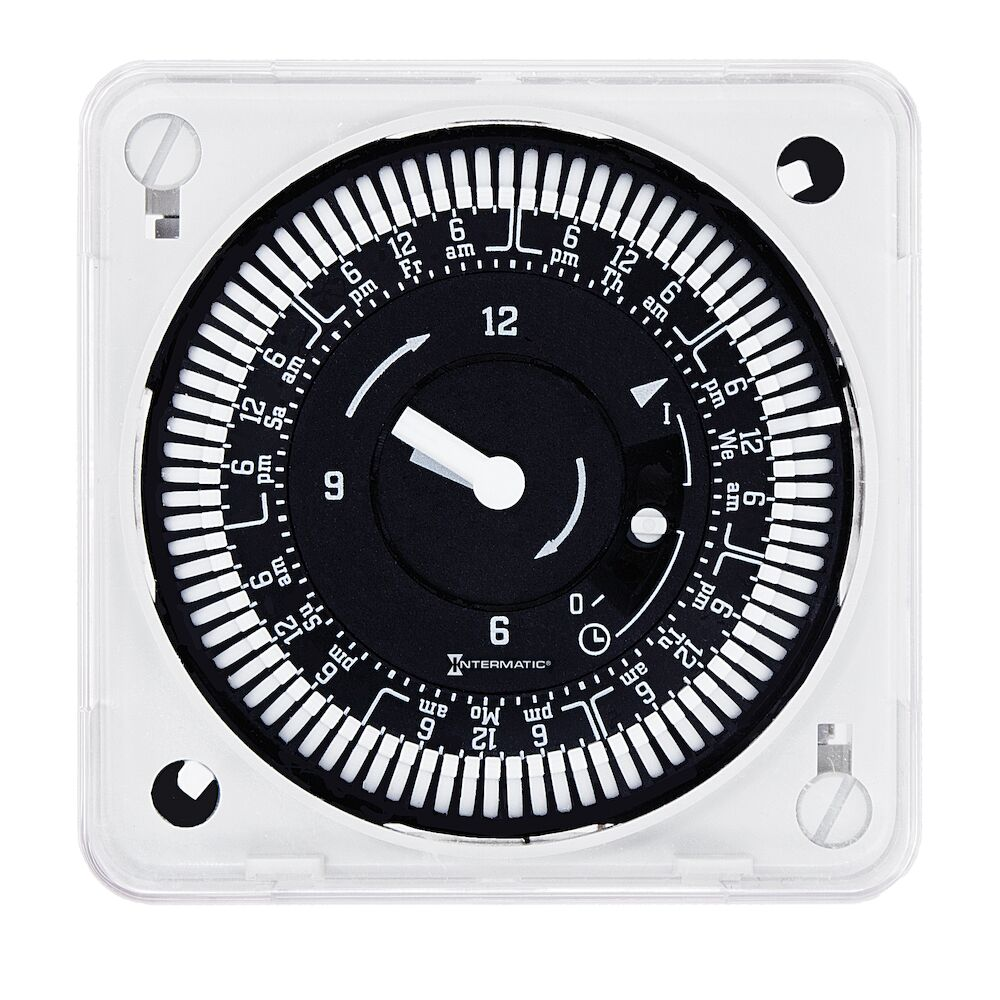

INTERMATIC MIL72ESWUZH-240 Electromechanical Flush Mount Timer Module With Manual Override, 240V
Get it by Friday, Aug 28
€130.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Timer Module |
| Amps Rating | 21A |
| Application | Commercial Refrigeration, Pumps/Motor/Fan Control, Hydroponic Systems, Aerobic Wastewater Treatment Systems, Boilers, Generator Exercising |
| Comm Code Enhanced | 44100 |
| Contact Form | 1NO-1NC 1SPDT |
| Contact Hp @ 120v | 1 hp |
| Contact Hp @ 240v | 2 hp |
| Day Skipper | Yes |
| Depth | 2 5/16" |
| Dimension S | 2.83" x 2.83" x 2.6" |
| Display Type | Analog |
| Enclosure Type | Plastic |
| Family Series | Intermatic Relays, MIL72 Series |
| Height | 3.79688" |
| Hp | 1 hp, 2 hp |
| Max. On/off Cycles | 48 |
| Max. Setting Time | 6 Days 22 Hrs. |
| Max. Time | 24 hrs. |
| Min. Time Setting | 2 hrs. |
| Mounting Type | Flush |
| No. Of Poles | 1 |
| No. Of Trippers Included | 96 |
| Operating Temp. | -40°F to +185°F, -4°F to +131°F With Battery Backup |
| Product Datasheet | intermatic-mil72eswuzh-240.pdf |
| Reserve Power | No |
| Series | MIL72 Series |
| Time Setting | 2 hrs. to 7 Days |
| Timer Function | Time Switch |
| Timing Range | 15 |
| Type | 7 Days |
| Voltage | 208/240V AC |
| Width | 3 5/16" |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 6.63 |
| Ship length (cm) | 3.45 |
| Ship width (cm) | 7.18 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | No. Of Poles | Height | Min. Time Setting | Contact Form | Dimension S | Time Setting | Type | Day Skipper | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MIL72AQTUZH-120 | 1 | 4.79688" | 15 min. | 1NO-1NC, SPDT | 2.83" x 2.06" x 4" | 15 min. to 24 hrs. | - | No | €142.88 | |
 |

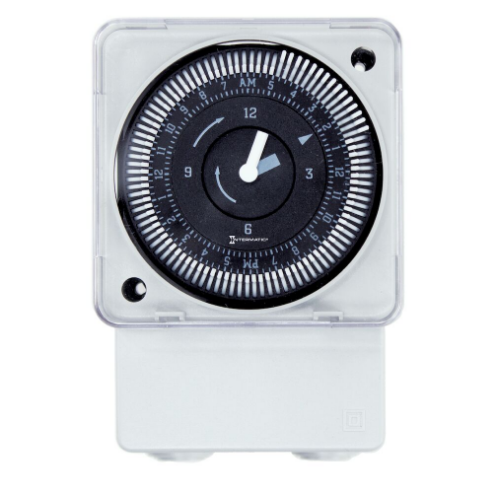

MIL72ASTUZ-240 | 1 | 4 19/32" | 15 min. | 1NO-1NC 1SPDT | 2.83" x 2.06" x 4" | 15 min. to 24 hrs. | 24 hrs. | - | €71.44 | |
 |

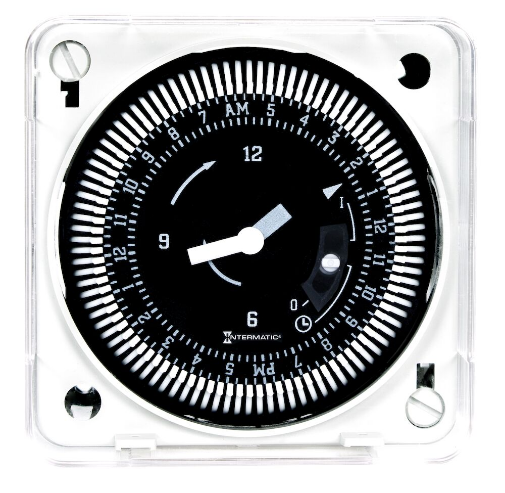

MIL72EQTUZH-120 | 1 | 3.79688" | 15 min. | 1NO-1NC 1SPDT | 2.83" x 2.83" x 2.6" | 15 min. to 24 hrs. | 24 hrs. | No | €129.29 | |
 |

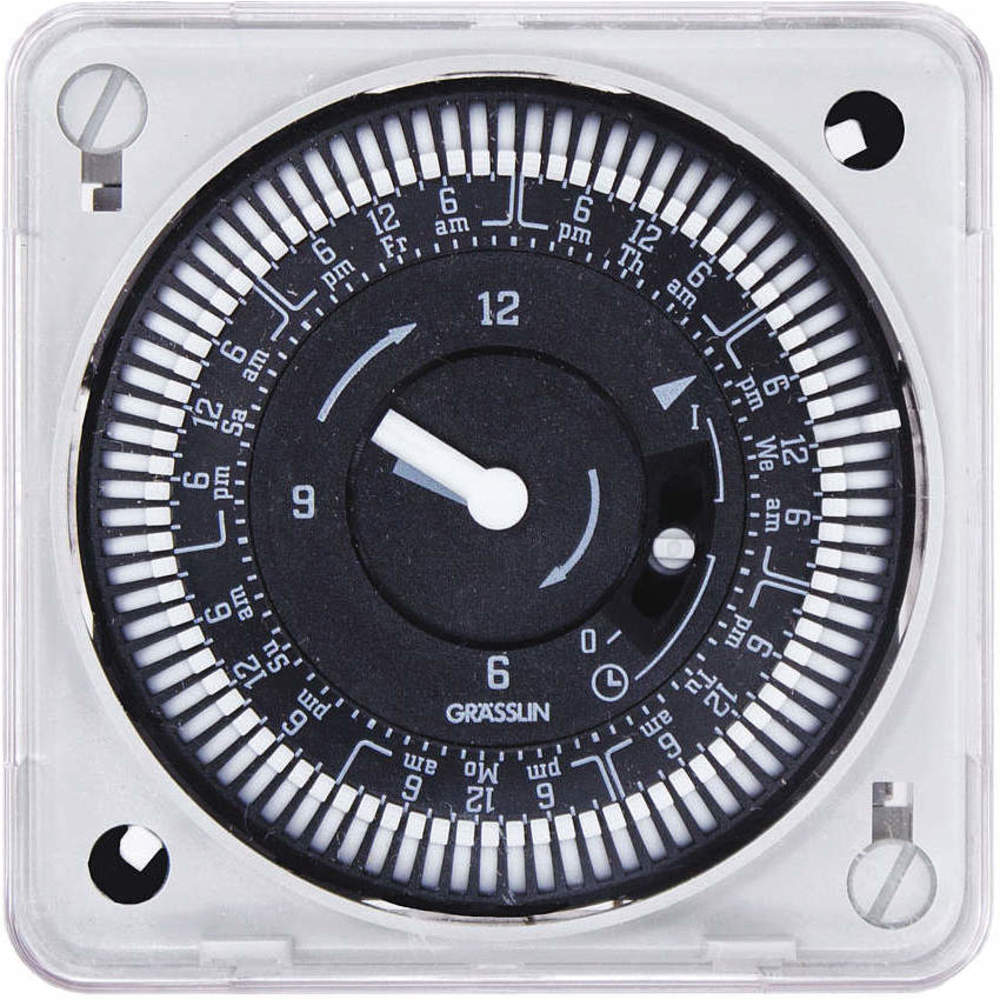

MIL72EQWUZH-120 | 1 | 3.79688" | 2 hrs. | 1NO-1NC, SPDT | 2.83" x 2.83" x 2.6" | 2 hrs. to 7 Days | - | Yes | €136.43 | |
 |

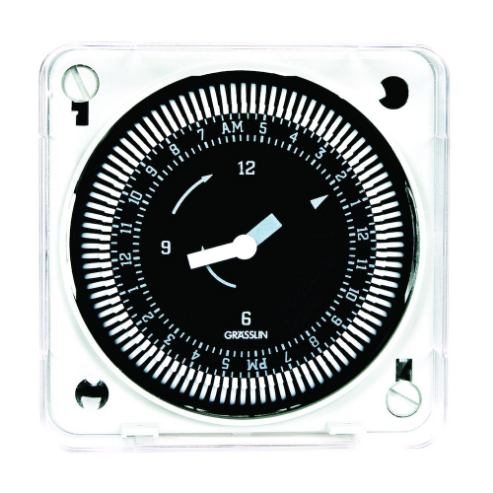

MIL72ESTUZ-120 | 1 | 3.79688" | 15 min. | 1NO-1NC 1SPDT | 2.83" x 2.83" x 2.6" | 15 min. to 24 hrs. | 24 hrs. | - | €70.09 | |
 |

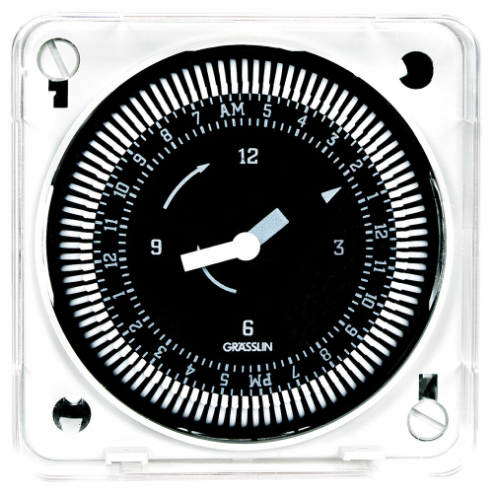

MIL72ESTUZ-240 | 2 | 3.79688" | 15 min. | - | - | - | - | - | €71.44 |
