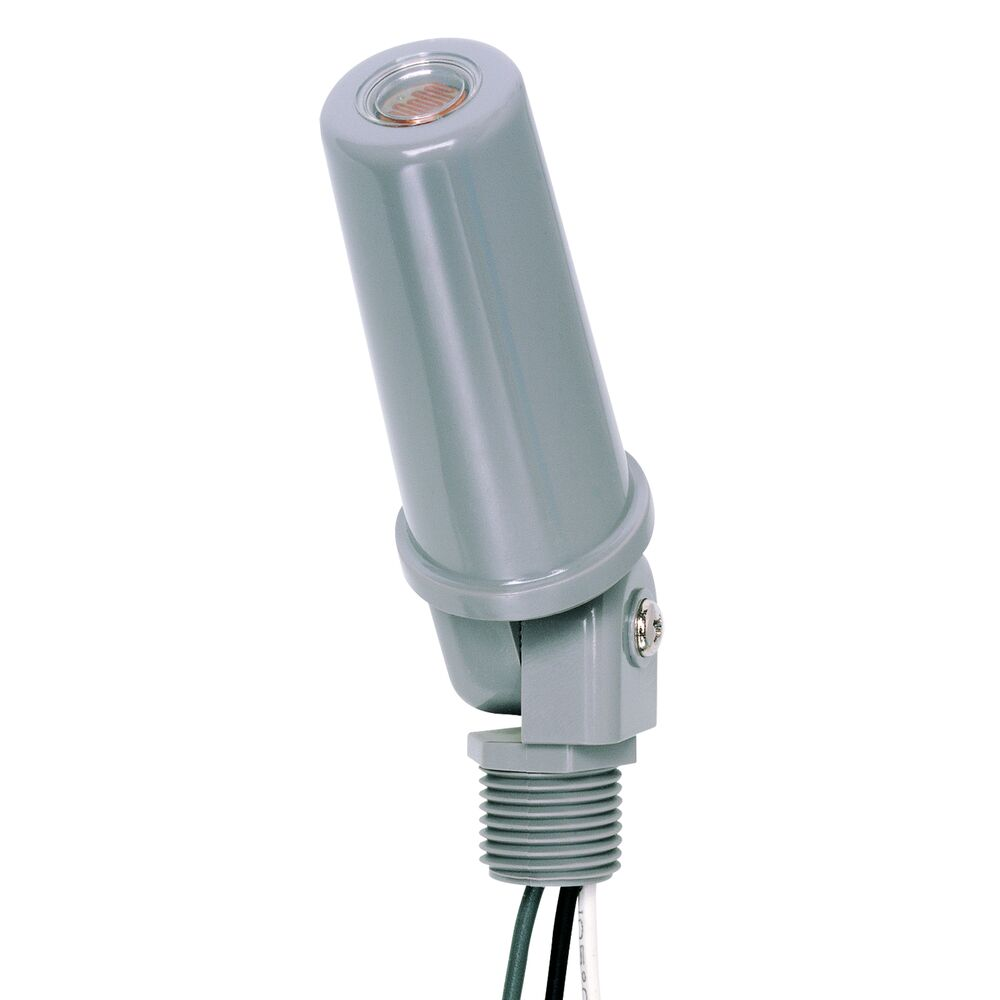

INTERMATIC K4251 Photocontrol Stem And Swivel 120vac
Item: AA4TZCModel: K4251Cross Ref: 13E059
7 In Stock
Ships within 2 days via
10.00% off
€45.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photocontrol |
| Activation Off | 3 fC to 15 fC |
| Activation On | 1 fC to 5 fC |
| Applicable Ac Voltage Ranges | 120V AC |
| Applications | Outdoor Lighting Control |
| Color | Gray |
| Compatible Lighting | Fluorescent, HID, Incandescent |
| Contact Form | SPST |
| Description/special Features | Photo Eye Located On Top And Are Designed For Spot/Flood Type Fixtures |
| Display Qty | 1 |
| Enclosure Type | Raintight |
| Expected Lifetime Operations | 3650 |
| Features | Cadmium Sulfide Photocell, Delay Feature, Mechanical Bimetal Switch, Top Mounted Sensor |
| Foot Candles Off | 3 to 15 |
| Foot Candles Off | 3 fC to 15 fC |
| Foot Candles On | 1 to 5 |
| For Use With | Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting |
| Housing Color | Gray |
| Housing Material | Polycarbonate |
| Incandescent Current - Maximum | 15A |
| Includes | Locking Nut, Washer Gasket |
| Indoor/outdoor Usage | Outdoor |
| Length (straight Wireway) | 5 1/2" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ballast Amps | 8.3A |
| Max. Ballast Amps | 8.3 |
| Max. Incandescent Amps | 15 |
| Max. Incandescent Amps | 15A |
| Max. Wattage | 1800 W |
| Mounting Style | Stem And Swivel |
| Mounting Type | Stem And Swivel |
| Nema Rating | Non-NEMA |
| Nominal Ac Voltage Ratings | 120V AC |
| Off Illumination - Maximum | 15 fC |
| Off Illumination - Minimum | 3 fC |
| On Illumination - Maximum | 5 fC |
| On Illumination - Minimum | 1 fC |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | -40°F |
| Overall Depth | 1.38" |
| Overall Height | 4" |
| Overall Width | 1.38" |
| Photo Control Switch Type | Mechanical Bimetal |
| Photocell Type | Cadmium Sulfide |
| Photocontrol Photocell Type | Cadmium Sulfide |
| Photocontrol Sensor Location | Top |
| Photocontrol Switch Type | Mechanical Bimetal |
| Photocontrol Type | Thermal |
| Resistance Properties | UV Resistant |
| Sensor Time Delay | 30 sec. to 90 sec. |
| Setting | Dusk To Dawn |
| Setting | On at Dusk, Off at Dawn |
| Stem Diameter | 1/2" |
| Stem Thread Size | 1/2"-14 |
| Stem Thread Type | NPSM |
| Temp. Range | -40°F to +158°F |
| Time Delay - Maximum | 90 sec. |
| Time Delay - Minimum | 30 sec. |
| Time Delay Range | 30 sec. to 90 sec. |
| Usage Environments | Outdoor |
| Voltage | 120V AC |
| Width | 1 1/2" |
| Wiring Option | Wire Leads |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 3.49 |
| Ship width (cm) | 3.49 |
| HS code | 8536509065 |
| Country of Origin | CN |
Product Details:
- Special Features: Photo Eye Located On Top And Are Designed For Spot/flood Type Fixtures
