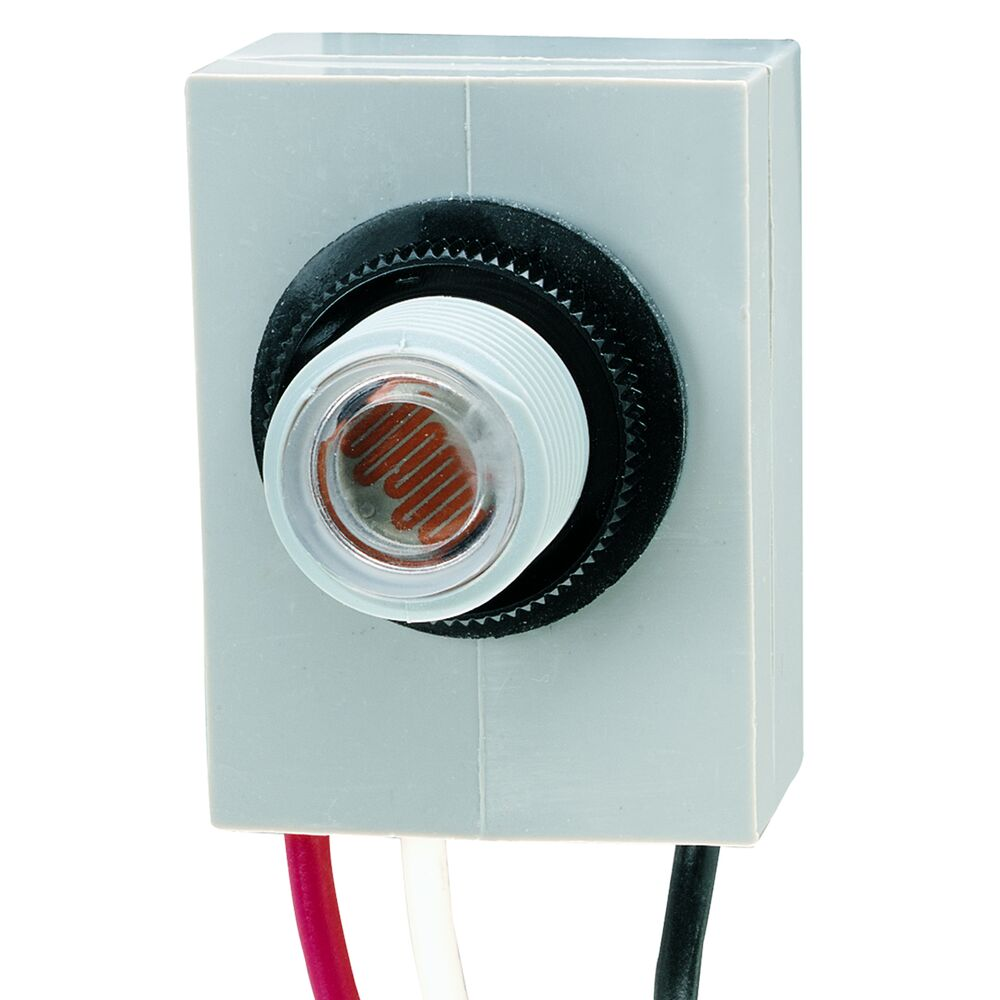

INTERMATIC K4023C Photocontrol Fixed 208 To 277vac
Item: AE6MTFModel: K4023CCross Ref: 5U791
7 In Stock
Ships within 2 days via
5.00% off
€58.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photocontrol |
| Activation Off | 3 fC to 15 fC |
| Activation On | 1 fC to 5 fC |
| Applicable Ac Voltage Ranges | 208-277V AC |
| Applications | Outdoor Lighting Control |
| Color | Gray |
| Compatible Lighting | Fluorescent, HID, Incandescent |
| Contact Form | SPST |
| Depth | 13/16" |
| Display Qty | 1 |
| Enclosure Type | Raintight |
| Expected Lifetime Operations | 3650 |
| Features | Standard 3 Prong Connector |
| Foot Candles Off | 3 fC to 15 fC |
| Foot Candles Off | 3 to 15 |
| Foot Candles On | 1 to 5 |
| For Use With | Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting |
| Housing Color | Gray |
| Housing Material | Polycarbonate |
| Included | Locking Nut, Washer Gasket |
| Indoor/outdoor | Outdoor |
| Length | 1 13/16" |
| Length (straight Wireway) | 1 13/16" |
| Max. Ballast Amps | 8.3 |
| Max. Ballast Amps | 8.3A |
| Max. Incandescent Amps | 15 |
| Max. Incandescent Amps | 15A |
| Max. On Illumination | 5 fC |
| Max. Operating Temp. | 158°F |
| Max. Time Delay | 90 sec. |
| Max. Watts | 3100-4150 W , 4150 W |
| Min. Off Illumination | 3 fC |
| Min. On Illumination | 1 fC |
| Min. Operating Temp. | -40°F |
| Min. Time Delay | 30 sec. |
| Mounting Style | Flush, Stem |
| Mounting Type | Fixed |
| Nema Rating | Non NEMA |
| Nominal Ac Voltage Ratings | 208/240/277V AC |
| Off Illumination-max. | 15 fC |
| Overall Depth | 0.81" |
| Overall Height | 1.81" |
| Overall Width | 0.94" |
| Photo Control Switch Type | Mechanical Bimetal |
| Photocell Type | Cadmium Sulfide |
| Photocontrol Photocell Type | Cadmium Sulfide |
| Photocontrol Sensor Location | Front |
| Photocontrol Style | Button |
| Photocontrol Switch Type | Mechanical Bimetal |
| Photocontrol Type | Thermal |
| Sensor Time Delay | 30 sec. to 90 sec. |
| Setting | Dusk To Dawn |
| Stem Dia. | 3/8" |
| Stem Thread Size | 3/8"-18 |
| Stem Thread Type | NPSM |
| Time Delay | 30 sec. to 90 sec. |
| Usage Environments | Outdoor |
| Voltage | 208-277V AC |
| Width | 1 5/16" |
| Wiring Option | Wire Leads |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 4.6 |
| Ship length (cm) | 2.06 |
| Ship width (cm) | 2.38 |
| HS code | 8536509065 |
| Country of Origin | MX |
Product Details:
- Special Features: Heavy Duty Wired-in with Built in Delay
Product Variants
| Product | Model | Voltage | Color | Max. Watts | Mounting Style | Applicable Ac Voltage Ranges | Nominal Ac Voltage Ratings | Length (straight Wireway) | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
K4321C | 120V AC | Gray | 1800 W | In Wall | 120V AC | 120V AC | 4 1/2" | Polycarbonate | €42.47 | |
 |
K4021C | 120V AC | Translucent | 1800 W | Flush, Stem | 120V AC | 120V AC | 1 13/16" | Polycarbonate | €38.72 |
