INTERMATIC FD30MH Spring-Wound Timer 0 - 30 Min Ivory | AF7EEJ 20XE93

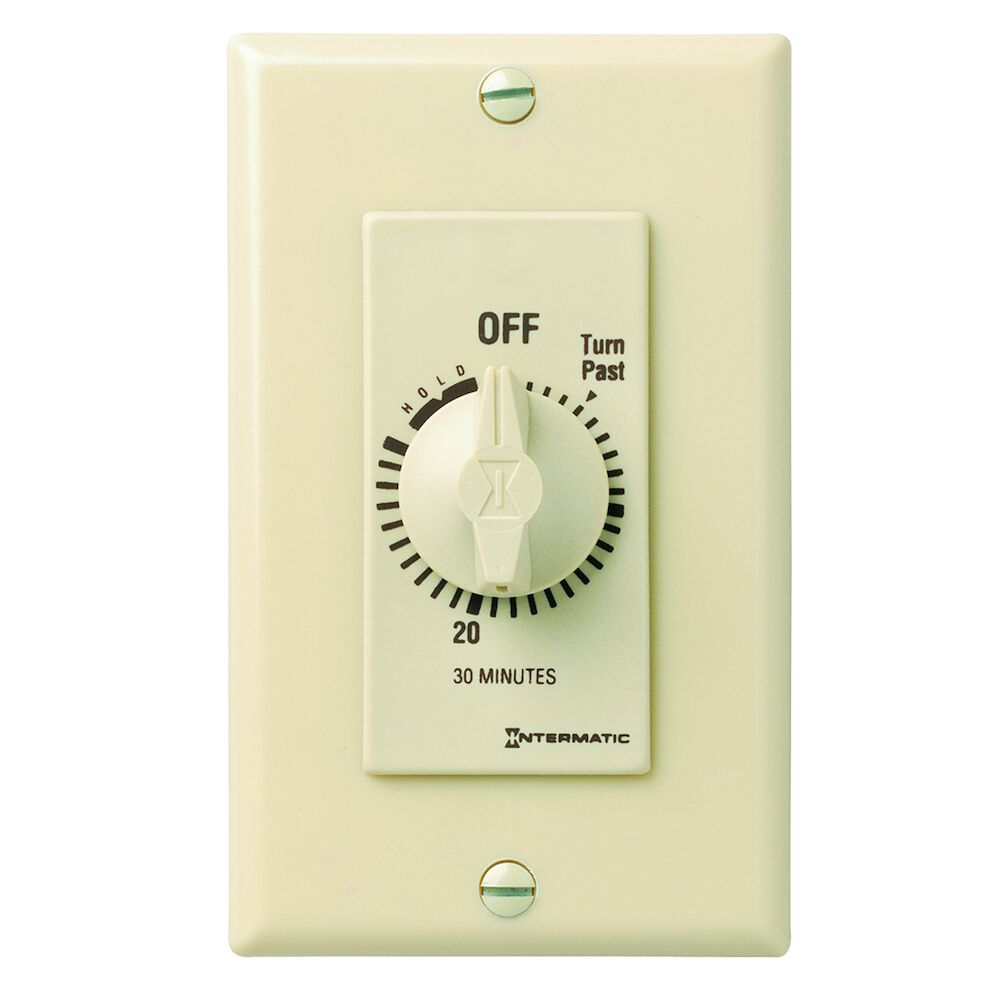

INTERMATIC FD30MH Spring-Wound Timer 0 - 30 Min Ivory

Item: AF7EEJModel: FD30MHCross Ref: 20XE93
7 In Stock

Ships within 2 days via

€59.66
10.00% off
€53.69 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Spring-Wound Timer
Amps Rating 10/20A
Applicable Ac Voltage Ranges 277V AC
Application HVAC, Lighting, Motor Controls
Application Compatibilities CFL, Fluorescent, Incandescent, LED
Applications Air Movement & Ventilation, Indoor Lighting Control, Motor Control, Outdoor Lighting Control
Body Color Ivory
Color Ivory
Compatible Lighting Fluorescent, Incandescent, LED
Contact Form SPST
Countdown Time 30 min.
Current Rating 20A
Depth 1 1/4"
Display Qty 1
Faceplate Color Ivory
Features Automatically Limit Time For Energy Consuming Loads
Fits Single Gang Box
Height 4 1/8"
Hold Mode Included Yes
Horsepower @ 120v - Maximum 1 hp
Horsepower @ 240v - Maximum 2 hp
Hp @ 125v 1 hp
Hp @ 250v 2 hp
Includes Hold Hold Included
Includes Wall Plate No Wall Plate Included
Indoor/outdoor Usage Indoor/Outdoor
Input Voltage 125-277V AC
Knob Plastic
Knob Material Plastic
Load Capacity @ 250v (amp) 10
Max. Amps @ 125vac 20A
Max. Amps @ 250vac 10A
Max. Amps @ 277vac 10A
Max. Operating Temp. 120°F
Mechanism Type Analog/Mechanical
Min. Operating Temp. 40°F
Neutral Connection Required No
Number Of Gangs 1
Operation Mode Countdown
Overall Depth 1 1/4"
Overall Height 4 1/8"
Product Type Countdown Timer
Resistive Heater 20A, 2500 W, 125V AC / 10A, 2500 W, 250V AC / 10A, 2770 W, 277V AC
Series Fd Series
Style Decorator
Time Setting - Maximum 30 min.
Timer Switch Type Mechanical
Timing Range 0 to 30 min.
Tungsten Incandescent Rating 7A, 125V AC, 50/60 Hz, 875 W
Units Per Pallet 1200
Wall Plate Configurations Multi Gang, Single Gang
Wattage - Maximum 2770 W
Width 1 3/4"
Wiring Configurations Single

Shipping Info:

Ship weight (kg) 0.14
Ship height (cm)10.48
Ship length (cm)3.18
Ship width (cm)4.45
HS code9107004080
Country of OriginTN

Product Details:

    • Hold Feature (Yes)
    • Load Capacity @ 125V (Amp) (20)
    • Load Capacity @ 277V (Amp) (10)

Product Variants

ProductModelContact FormNumber Of GangsMax. Amps @ 250vacMax. Amps @ 125vacMax. Amps @ 277vacFitsPrice
INTERMATIC FD15M In-Wall Spring Wound Timer, 120/240/277 V, 1 HP, 50/60 Hz | AB4DPX 1XC25 FD15MCSPST110A20A10ASingle Gang Box€62.70
INTERMATIC FD30M Timer Spring Wound | AB4DPY 1XC26 FD30MCSPST110A20A10ASingle Gang Box€58.08
INTERMATIC FD60M Timer Spring Wound | AB4DPZ 1XC27 FD60MCSPST110A20A10ASingle Gang Box€58.81
INTERMATIC FF12H Timer Spring Wound | AB9MQV 2E052 FF12HCSPST110A20A10ASingle Gang Box€82.37
INTERMATIC FF30M Timer Spring Wound | AB9MRN 2E175 FF30MCSPST110A20A10ASingle Gang Box€59.59
INTERMATIC FF15M Timer Spring Wound | AB9MRU 2E269 FF15MCSPST110A20A10ASingle Gang Box€59.59
INTERMATIC FD5MW Timer Spring Wound 5 Min | AC7DMB 38D055 FD5MWSPST110A20A10ASingle Gang Box€60.98
