EATON 10250T Series Joystick Operators


Eaton 10250T Series joystick operators are designed to control machines, equipment and systems in both vertical and horizontal orientation.

Filter
EATON 10250ED1174A
EATON 10250T45113B
EATON 10250T461C
EATON 10250T4612D
EATON 10250T462E
EATON 10250T452-3XF
EATON 10250T45115G
EATON 10250T4514H
EATON 10250T4525-3XI
EATON 10250ED1332-2J
EATON 10250T451K
StyleModelHeightTypeNo. Of PositionsFeaturesContact ConfigurationActuator TypeNema Enclosure RatingNotesPrice
A
10250ED1174		---------
RFQ
B
10250T45113		--------€918.53
C
10250T461		--------€1,062.58
A
10250T46110		--------€917.90
D
10250T4612		--------€876.14
A
10250T46115		--------€929.68
E

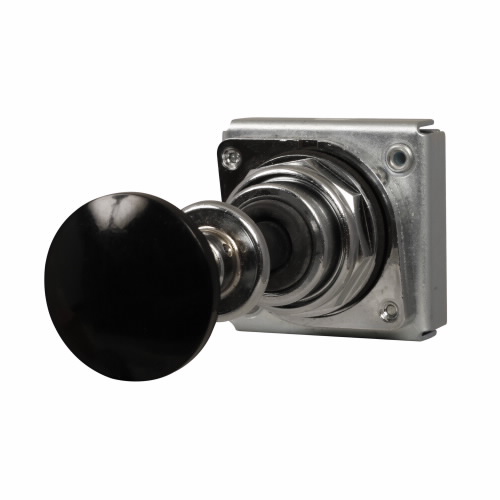

10250T462		--------€669.86
A
10250ED1355-1		-30.5 mm, Watertight/Oiltight4-8 NOJoystick operator--€1,461.48
A
10250T45112		1"30.5 mm, Heavy-Duty4Without Overcurrent Latch--NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€825.16
F
10250T452-3X		1"30.5 mm, Heavy-Duty2Without Overcurrent Latch2 NC-NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13Parts Assembled At Factory€1,012.07
A
10250T4615		1"30.5 mm, Heavy-Duty4With Overcurrent Latch--NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€643.04
G
10250T45115		1"30.5 mm, Heavy-Duty4Without Overcurrent Latch--NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€880.70
A
10250T45111		1"30.5 mm, Heavy-Duty4Without Overcurrent Latch--NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€918.53
A
10250T451-22		1"30.5 mm, Heavy-Duty4Without Overcurrent Latch4 NO-NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€1,192.48
A
10250T451-22X		1"Joystick Operator-----Parts Assembled At Factory€1,192.48
C
10250T461-3		1"30.5 mm, Heavy-Duty4With Overcurrent Latch2 NC-NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€772.00
A
10250T4613		1"30.5 mm, Heavy-Duty4With Overcurrent Latch--NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€876.14
H
10250T4514		1"30.5 mm, Heavy-Duty4Without Overcurrent Latch--NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€909.78
A
10250T4614		1"30.5 mm, Heavy-Duty4With Overcurrent Latch--NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€957.40
A
10250T45110		1"30.5 mm, Heavy-Duty4Without Overcurrent Latch--NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€918.53
A
10250ED1296		1"-2-2 NO, 2 NCJoystick--€918.53
I
10250T4525-3X		1"30.5 mm, Heavy-Duty2Without Overcurrent Latch2 NC-NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13Parts Assembled At Factory€826.51
F
10250T452-44X		1"30.5 mm, Heavy-Duty2Without Overcurrent Latch2 NO, 2 NC-NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13Parts Assembled At Factory€876.14
F
10250T452-3		1"30.5 mm, Heavy-Duty2Without Overcurrent Latch2 NC-NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€826.51
I
10250T4525-3		1"30.5 mm, Heavy-Duty2Without Overcurrent Latch2 NC-NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€826.51
F
10250T452-45X		1"30.5 mm, Heavy-Duty2Without Overcurrent Latch2 LONC-NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13Parts Assembled At Factory-
RFQ
A
10250T4619		1"30.5 mm, Heavy-Duty4With Overcurrent Latch--NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€957.40
F
10250T452-2X		1"30.5 mm, Heavy-Duty2Without Overcurrent Latch2 NO-NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13Parts Assembled At Factory€826.51
A
10250T4519		1"30.5 mm, Heavy-Duty4Without Overcurrent Latch--NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€918.53
A
10250T4511		1"30.5 mm, Heavy-Duty4Without Overcurrent Latch--NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€840.64
A
10250T4521		3 1/2"30.5 mm, Heavy-Duty2Without Overcurrent Latch--NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€710.22
F
10250T452		3 1/2"30.5 mm, Heavy-Duty2Without Overcurrent Latch--NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€743.03
I
10250T4525		3"30.5 mm, Heavy-Duty2Without Overcurrent Latch--NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€803.49
J
10250ED1332-2		4 1/2"-------€656.61
A
10250T4515		4 1/2"30.5 mm, Heavy-Duty4Without Overcurrent Latch--NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€721.74
K
10250T451		4.3"Heavy Duty4-----€1,114.07
A
10250T4513		5"30.5 mm, Heavy-Duty4Without Overcurrent Latch--NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€864.48
A
10250T46114		5"30.5 mm, Heavy-Duty4With Overcurrent Latch--NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€667.88
A
10250ED1355-2		6 4/5"30.5 mm, Watertight/Oiltight4-8 NOJoystick operator--€1,461.48
A
10250T4512		6"30.5 mm, Heavy-Duty4Without Overcurrent Latch--NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€449.53
A
10250T4522		10"30.5 mm, Heavy-Duty2Without Overcurrent Latch--NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13-€710.22

Working Mechanism

  • The joystick comes with a potentiometer which connects to the shaft.
  • When the shaft is moved, the potentiometer produces a corresponding movement, varying the resistance and altering the electrical current in the circuit.
  • The circuit is connected to contact terminals that send electrical signals to a processing unit.
  • The processing unit then translates the analogue electrical signal into a digital electrical signal which is communicated to the piece of equipment.

Features

  • They have a shaft mounted onto a base which connects them with the electrical circuit.
  • These 2 or 4-position operator closes one circuit each in up / down and up / down / left and right positions, respectively.
  • They are available in NEMA ratings 3, 3R, 4, 4X, 12 and 13 for protection against ingress of hazardous particulates.

Standards and Approvals

  • UL
  • CSA
  • CE

Frequently Asked Questions

How does a pushbutton work?

A pushbutton switch completes an electrical circuit when pressed. When the circuit is connected, a small metal spring inside the push button makes contact with two wires, allowing the electricity to flow easily.

What does NEMA 13 stand for?

NEMA 13 enclosures are designed for indoor use and provide protection against dust, spraying of water, oil and non-corrosive coolants.

What is an illuminated pushbutton?

An illuminated pushbutton switch features a small LED, neon or incandescent lamp to emphasise the 'ON' position in electrical equipment.
