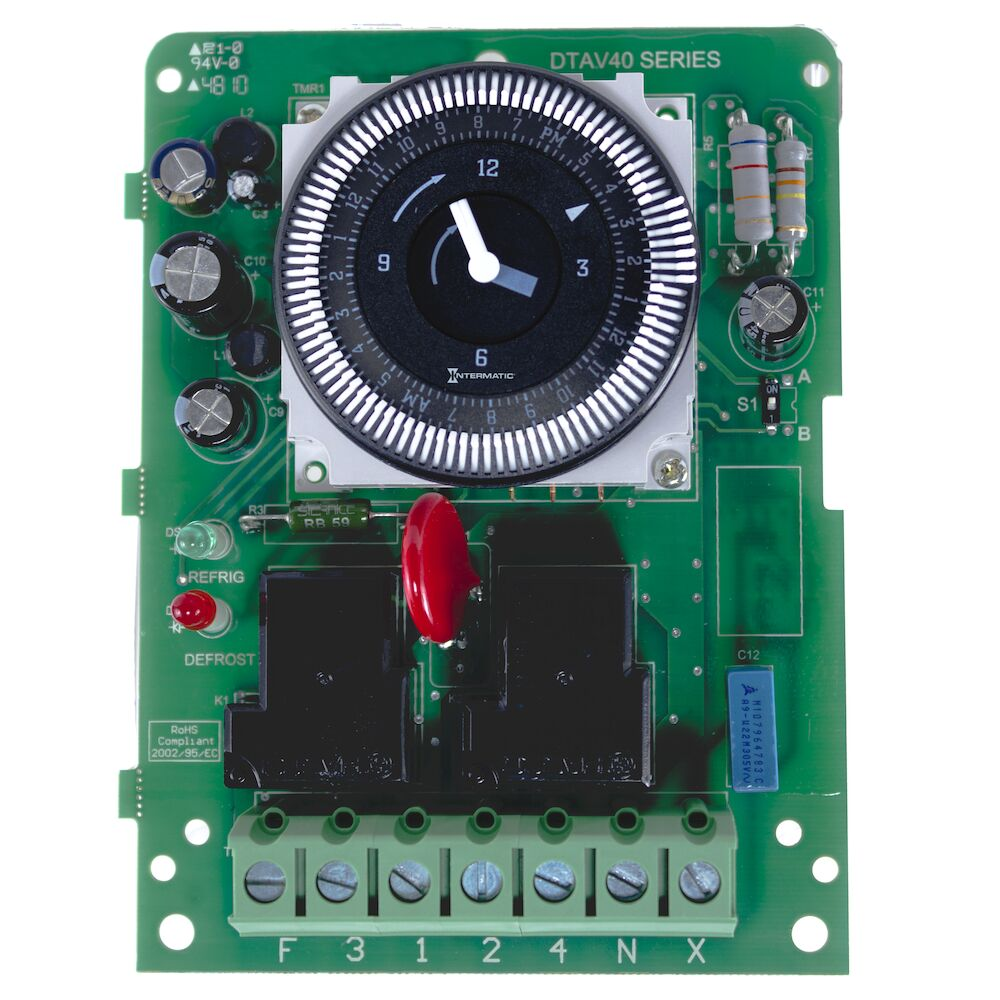

INTERMATIC DTAV40M Defrost Timer 120/240V 40A 1 NO 1 NC
Item: AF7EJQModel: DTAV40MCross Ref: 20XF96
7 In Stock
Ships within 2 days via
10.00% off
€324.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Defrost Timer |
| Amps | 40A |
| Applicable Ac Voltage Ranges | 120-240V AC |
| Applications | Walk-In Refrigeration Cooler/Freezer |
| Contact Form | SPST-NC |
| Contact Type | 1 NO, 1 NC |
| Current Rating | 40A |
| Defrost Cycle Time - Maximum | 24 hrs. |
| Defrost Initiation | Time |
| Defrost Led Indicator | Red |
| Defrost Time - Minimum | 15 min. |
| Display Qty | 1 |
| Enclosure Material | No Enclosure |
| Has Captive Trippers | Yes |
| Has Captive Trippers Cvl | Yes |
| Has Real-time Clock Face | Yes |
| Has Realtime Clock Face Cvl | Yes |
| Horsepower @ 120v - Maximum | 1 hp |
| Horsepower @ 240v - Maximum | 2 hp |
| Initiation | Time |
| Led Defrost Indicator | Red |
| Max. On/off Cycles | 48 |
| Mechanism Type | Electromechanical |
| Minimum On Off Time | 15 min. |
| Minimum On/off Times | 15 min. |
| Mounting Options | Bracket |
| Nema Enclosure Rating | No Enclosure |
| On Off Operations | 48 |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | -40°F |
| Series | DTAV40 Series |
| Solutions | Refrigeration |
| Termination | Pressure Or Temperature Or Time |
| Termination Type | Temperature, Pressure, Time |
| Time Initiation | Time |
| Timer Switch Type | Mechanical |
| Voltage | 120/240V |
| Voltage Selection Type | Auto Voltage |
Shipping Info:
| Ship weight (kg) | 0.4 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 18.1 |
| Ship width (cm) | 13.02 |
| HS code | 9107008000 |
| Country of Origin | MX |
Product Details:
- Defrost Initiation (Time)
- Defrost Time (Minutes) (15 to 1425)
