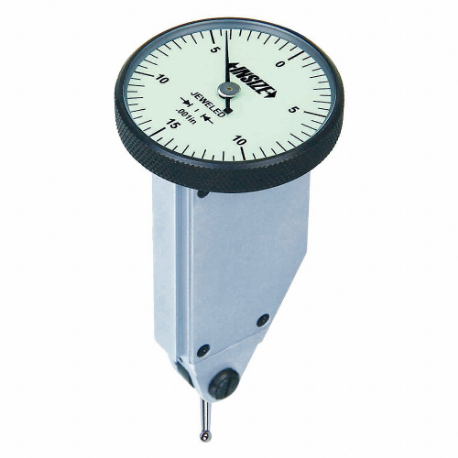

INSIZE 2398-03 Vertical Dial Test Indicator, Vertical, 0 Inch to 0.03 Inch Range, 0-15-0 Dial Reading
Item: CR4QTQModel: 2398-03Cross Ref: 408R90
7 In Stock
Ships within 2 days via
10.00% off
€181.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Dial Test Indicator |
| Accuracy | -0.0005" to +0.0005" |
| Bearing Type | Jeweled |
| Case Type | Case |
| Contact Point Dia. | 0.079" |
| Contact Point Length | 1/2" |
| Contact Point Material | Carbide |
| Contact Point Shape | Ball |
| Dial Color | White |
| Dial Reading | 0 to 15 |
| Dial Size | 1.46" |
| Dimension Type | Inch |
| Features | Two Measuring Directions |
| Graduations | 0.0005" |
| Included Certification | Short Form Certificate Of Inspection With NIST Traceability |
| Includes | 5/32" Clamp, Anti Magnetic Body |
| Includes Case | Yes |
| Includes Dovetail Mount Attachments | Yes |
| Indicator Style | Vertical |
| Long Form Calibration Certificate | No |
| Max. Measurement | 0.03" |
| Maximum Measurement | 0.03" |
| Min. Measurement | 0.0" |
| Minimum Measurement - Inch | 0" |
| Mounting Style | Clamp |
| Non Conductive Tip | No |
| Non Magnetic Tip | Yes |
| Number Of Indicators | 1 |
| Operation Type | Lever-Style |
| Range | 0" to 0.03" |
| Range Per Revolution | 0.03" |
| Reading | Balanced |
| Repeatability | -0.0005" to +0.0005" |
| Shock Resistant | No |
| Stem Thread Size | M1.6 x 0.35 |
| Stylus Diameter | 0.079" |
| Stylus Length | 1/2" |
| Swivel Angle | 115° |
| Test Indicator Style | Vertical |
Shipping Info:
| Ship weight (kg) | 0.31 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
