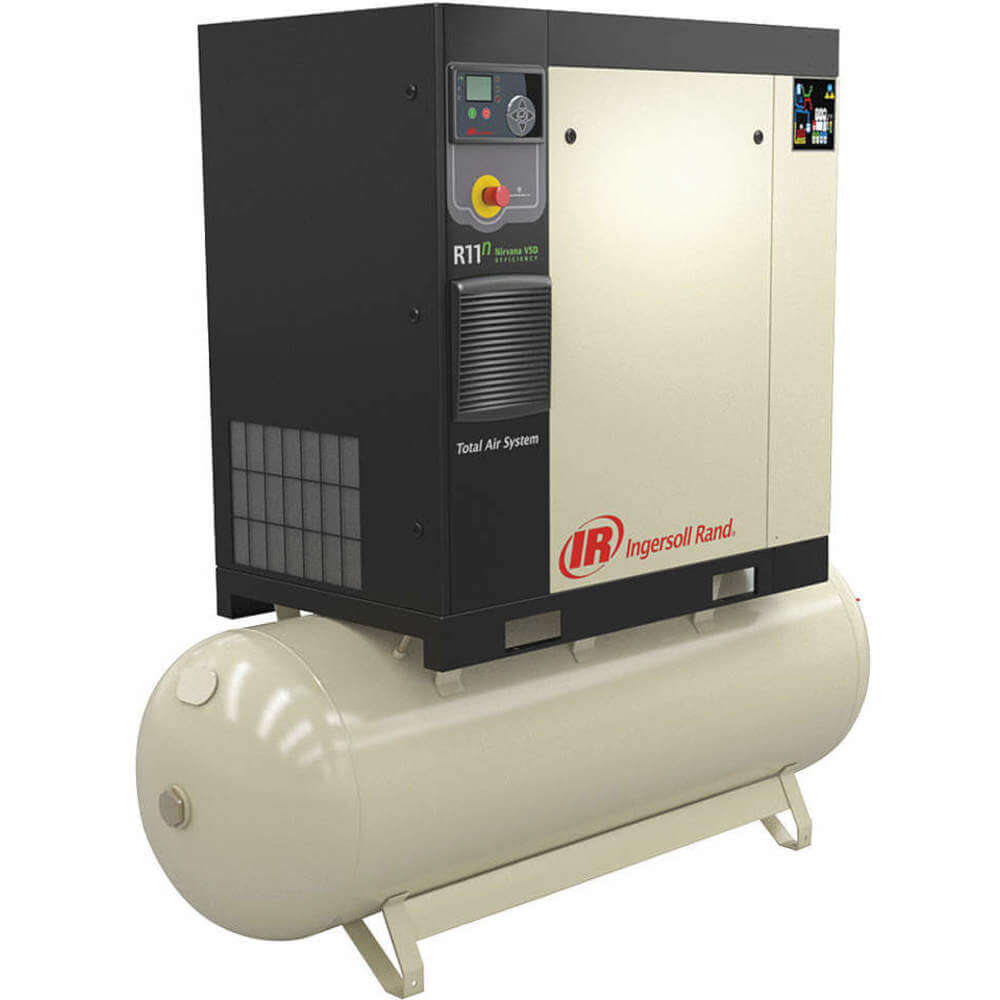

INGERSOLL-RAND R11I-A135-TAS/120-460-3 Rotary Screw Air Compressor 120 Gallon 26A
Get it by Tuesday, Dec 23
10.00% off
€19,813.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rotary Screw Air Compressor |
| (f)npt Outlet | 3/4" |
| Air Dryer Included | Yes |
| Ambient Temp. Range | +35°F to +104°F |
| Current Rating | 26A |
| Dba @ 3 Feet | 69 |
| Dba @ 3 Feet | 69 dBA |
| Duty Cycle | Continuous |
| Enclosure Type | Totally Enclosed |
| Fnpt Outlet Size | 3/4" |
| Free Air Cfm @ Max. Pressure | 155 CFM |
| Free Air Cfm @ Max. Pressure | 155 |
| Free Air Flow Rate @ Maximum Pressure | 50.4 CFM |
| Frequency | 60 Hz |
| Full Load Amps | 26A |
| Input Voltage | 460V AC |
| Max. Pressure | 135 psi |
| Maximum Operating Pressure | 135 psi |
| Maximum Speed | 3550 RPM |
| Motor Speed | 3550 RPM |
| Outlet Gender | Female |
| Outlet Size | 3/4" |
| Outlet Type | NPT |
| Output Power | 15 hp |
| Overall Depth | 28" |
| Overall Height | 72" |
| Overall Length | 72" |
| Phase | 3 |
| Pump Type | Rotary Screw |
| Refrigerant | R-134a |
| Sound Level | 69 dBA |
| Tank Size | 120 gal. |
| Tank Style | Horizontal |
| Tank Type | Horizontal |
Shipping Info:
| Ship weight (kg) | 535.5 |
| Ship height (cm) | 182.88 |
| Ship length (cm) | 182.88 |
| Ship width (cm) | 71.12 |
| Country of Origin | US |
Product Details:
- ASME Tank : Yes
- Air Dryer Included : No
Product Variants
| Model | Tank Size | Input Voltage | Free Air Cfm @ Max. Pressure | Overall Depth | Overall Length | Motor Speed | Air Dryer Included | Current Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| R11I-A135-TAS/120-200-3 | 120 gal. | 208V AC | 116 CFM | 28" | 72" | 3550 RPM | Yes | 58.3A | €22,015.26 | |
| R5.5I-A125/80-230-3 | 80 gal. | - | 27.5 CFM | 27" | 38" | 3550 RPM | No | 24A | €13,926.15 | |
| R7.5I-A135-TAS/80-230-3 | 80 gal. | 230V AC | 98 CFM | 28" | 68" | 3550 RPM | Yes | 38A | €21,101.79 | |
| R4I-A125/80-230-3 | 80 gal. | 230V AC | 197 CFM | 27" | 38" | 3570 RPM | No | 17A | €12,167.39 | |
| R7.5I-A135-TAS/80-200-3 | 80 gal. | 208V AC | 98 CFM | 28" | 68" | 3550 RPM | Yes | 41.8A | €20,585.45 | |
| R5.5I-A135-TAS/80-200-3 | 80 gal. | 208V AC | 211 CFM | 28" | 68" | 3550 RPM | Yes | 33.8A | €18,034.60 | |
| R11I-A135-TAS/120-230-3 | 120 gal. | 230V AC | 116 CFM | 28" | 72" | 3550 RPM | Yes | 53A | €22,015.26 |
