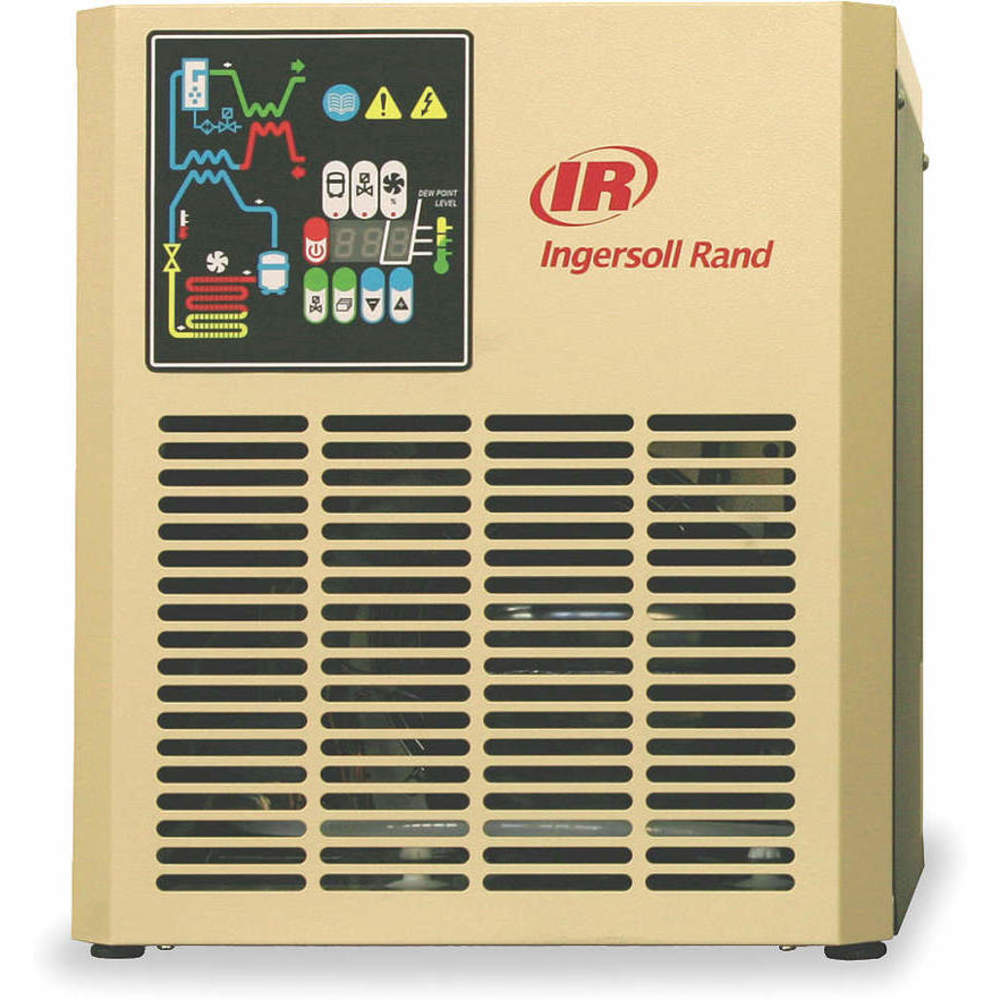

INGERSOLL-RAND D12IN Compresed Air Dryer 7 Cfm 3 To 5 Hp 115v
Get it by Wednesday, Dec 24
10.00% off
€1,866.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compressed Air Dryer |
| Air Inlet Gender | Female |
| Air Inlet Size | 3/8" |
| Air Inlet Type | NPT |
| Air Outlet Size | 3/8" |
| Air Outlet Type | NPT |
| Bracket Kit | No |
| Bracket Kit Included | No |
| Cfm | 7 CFM |
| Cycling Type | Non Cycling |
| Dew Point | 50 Degrees F |
| Dew Point | 50°F |
| Drain Included | Yes |
| Drain Type | Electronic |
| Features | Smart Control |
| Filter Type | Coalescing |
| Filtered Substance | Oil, Water |
| Finish | Powder Coated |
| Frequency | 60 Hz |
| Full Load Amps | 2.8A |
| Heat Exchanger Material | Aluminum |
| Heat Exchanger Material | Aluminium |
| Includes | Electronic Auto Drain |
| Input Voltage | 115V AC |
| Iso Class | Class 6 |
| Max. Air Compressor Hp | 3 to 5 |
| Max. Air Compressor Hp | 3 hp to 5 hp |
| Max. Ambient Temp. | 122°F |
| Max. Inlet Temp. | 140°F |
| Max. Pressure | 203 psi |
| Maximum Air Compressor Horsepower | 3 hp |
| Maximum Ambient Temperature | 100°F |
| Maximum Flow | 7 CFM |
| Maximum Flow @ 100 Psi | 7 SCFM |
| Maximum Incoming Pressure | 203 psi |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Overall Depth | 16" |
| Overall Height | 16" |
| Overall Width | 12" |
| Phase | 1 |
| Power | 0.16 kW |
| Power | 0.11kW |
| Refrigerant | R-134A |
| Refrigeration Compressor (hp) | 1/10 |
| Refrigeration Compressor Horsepower | 0.1 hp |
| Refrigeration Compressor Hp | 1/10 hp |
| Series | D |
| Standards | Cagi |
| Voltage | 115V AC |
| Weight | 40 lbs. |
Shipping Info:
| Ship weight (kg) | 19.03 |
| Ship height (cm) | 40.64 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 30.48 |
| HS code | 8418690180 |
| Country of Origin | IT |
Product Variants
| Model | Voltage | Air Inlet Size | Iso Class | Full Load Amps | Pressure Drop | Max. Ambient Temp. | Phase | Cfm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| HLA1201H00AA | - | - | - | 4A | 3 psi | 120°F | 1 | 120 CFM | €18,455.80 | |
| HLA1601H00AA | 115V | 1 1/2" | Class 2 | 4A | 3 psi | 120°F | 1 | 160 CFM | €20,657.61 | |
| HLA2001H00AA | - | - | - | 4A | 3 psi | 120°F | 1 | 200 CFM | €19,470.83 | |
| HLA2501H00AA | 115V | 1 1/2" | Class 2 | 4A | 3 psi | 120°F | 1 | 250 CFM | €19,806.40 | |
| HLA3001H00AA | 115V | 2" | Class 2 | 4A | 3 psi | 120°F | 1 | 300 CFM | €23,316.34 | |
| HLA4001H00AA | 115V | 2" | Class 2 | 4A | 3 psi | 120°F | 1 | 400 CFM | €26,323.10 | |
| HLA5001H00AA | 115V | 2" | Class 2 | 4A | 3 psi | 120°F | 1 | 500 CFM | €31,435.69 |
