INGERSOLL-RAND 5108MAX Air Die Grinder, 1/4 Inch NPT, 25000 RPM
Item: AB7RGKModel: 5108MAXCross Ref: 23Z013
7 In Stock
Ships within 2 days via
10.00% off
€313.76 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Die Grinder |
| Accessory Free Tool Change | Yes |
| Air Consumption | 6 CFM |
| Air Inlet | 1/4" NPT Female |
| Air Inlet Connection Size | 1/4" |
| Air Inlet Gender | Female |
| Air Inlet Type | NPT |
| Application | Vehicle Repair |
| Average Cfm @ 15 Sec. Run Time | 6 CFM |
| Bearing Type | Ball |
| Cfm @ Full Load | 25 CFM |
| Collet | 1/4" |
| Collet Size | 1/4", 6 mm |
| Duty | Heavy Duty |
| Duty Cycle | Industrial |
| Exhaust Location | Rear |
| Features | Ergonomic Body, Lightweight, Lock Out Levers |
| Free Speed | 25000 RPM |
| Grinder Orientation | Straight |
| Grinder Type | Straight |
| Grip Style | Barrel Grip |
| Handle Material | Composite |
| Horsepower | 0.4 hp |
| Hp | 2/5 hp |
| Includes | (3) Wrenches, 6 mm Collet, Piped Away Exhaust Kit, Service Clamp Block |
| Kit Contents | (1) Bare Tool |
| Lock-off Switch | Yes |
| Lock-on Switch | Yes |
| Max. Speed | 25000 RPM |
| Min. Hose Size | 3/8" |
| Minimum Speed | 25000 RPM |
| Overall Length | 6 1/2" |
| Power Source | Air Powered |
| Required Pressure | 90 psi |
| Safety Features | Lock-Out Lever |
| Standards | Iso 28927, Iso15744 |
| Switch Location | Bottom |
| Switch Type | Safety Lever |
| Tether Style | Not Tether Capable |
| Throttle | Lever |
| Tool Style | Straight |
| Tool Weight | 1 lbs. |
| Variable Speed | No |
| Vibration Level | 1.8 m/sq. sec. |
Shipping Info:
| Ship weight (kg) | 1.22 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 24.64 |
| HS code | 8467111040 |
| Country of Origin | IN |
Product Details:

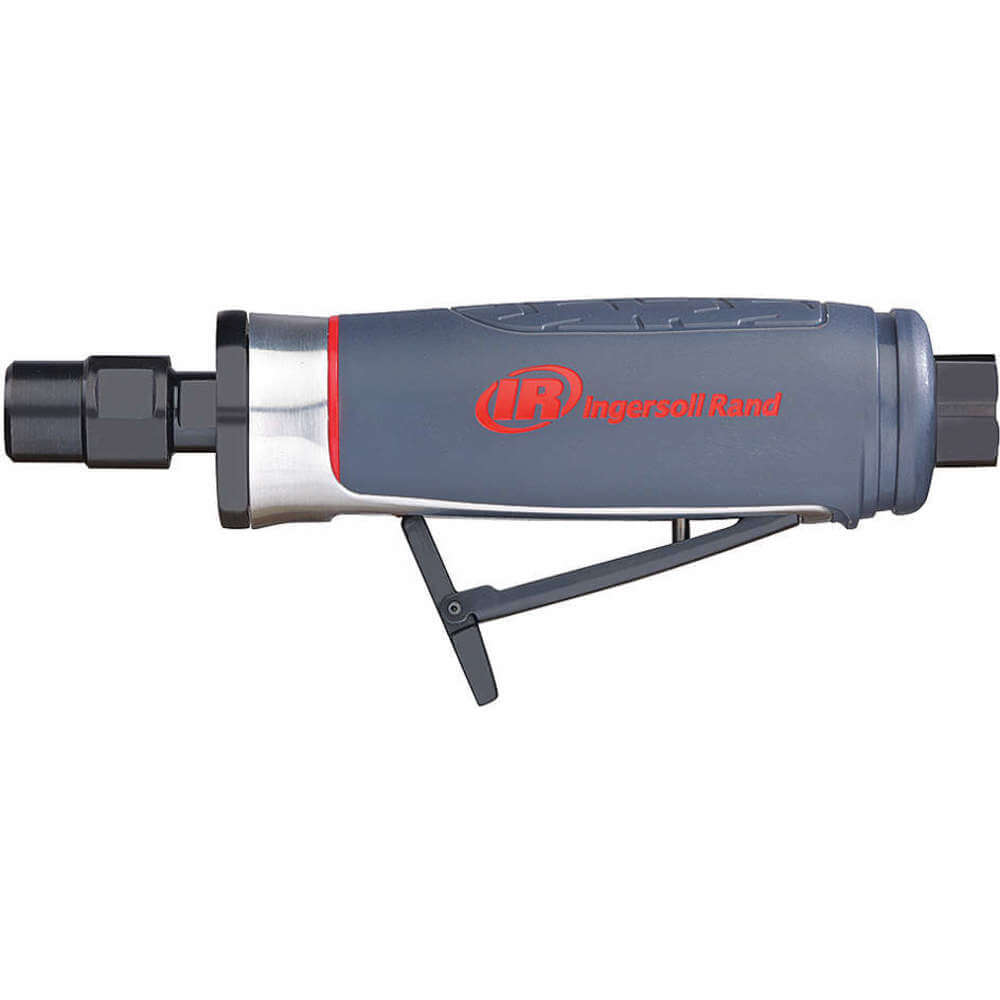

- Straight air die grinder designed to operate on compressed air to fabricate smooth metal surfaces and shape wood / plastic stocks
- Light-weight and low-vibration construction allows continuous-duty workflow without exertion or interruption
- Equipped with a 0.4 HP air motor capable of delivering no-load speeds up to 25000 rpm and a safety lock to prevent accidental start-ups
- Angled and straight configuration facilitates user convenience in constrained spaces
- Ball bearing for reducing rotational / frictional losses and a rear exhaust port to push out the excess air and reduce noise while operation
Product Variants
| Product | Model | Duty | Max. Speed | Overall Length | Collet Size | Hp | Handle Material | Average Cfm @ 15 Sec. Run Time | Free Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G1H350RG4 | Heavy Duty | 35000 RPM | 6 1/8" | 1/4" | 2/5 hp | Composite | 6.3 CFM | 35000 RPM | €1,023.73 | |
|
G1H250RG4 | Heavy Duty | 25000 RPM | 6 1/8" | 1/4" | 2/5 hp | Composite | 5 CFM | 25000 RPM | €903.37 | |
|
G1H200RG4 | Heavy Duty | 20000 RPM | 6 1/8" | 1/4" | 2/5 hp | Composite | 4.8 CFM | 20000 RPM | €775.58 | |
 |
308B | Medium Duty | 25000 RPM | 6 7/8" | 1/4", 6 mm | 1/3 hp | Aluminum | 7 CFM | 25000 RPM | €223.40 | |
 |
330SC4A | Heavy Duty | 30000 RPM | 6 1/2" | 1/4" | - | Composite | 8 CFM | 30000 RPM | €510.54 |
