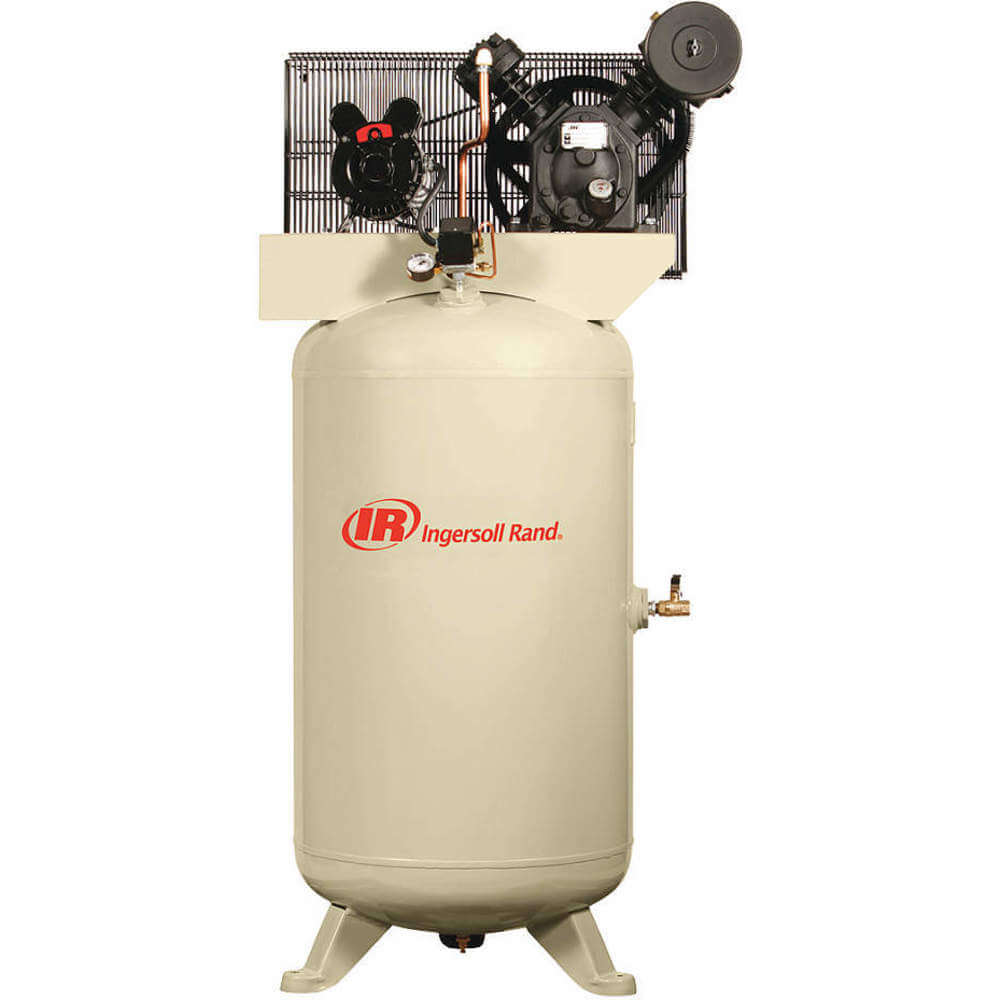

INGERSOLL-RAND 2340N5-V-460/3 Electric Air Compressor 2 Stage 14 Cfm
Get it by Tuesday, Sep 1
5.00% off
€3,477.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Air Compressor |
| (f)npt Outlet | 1/2" |
| Amps | 6.17A , 7.7A |
| Asme Tank | Yes |
| Compressor Type | Tank Mounted |
| Control Type | Pressure Switch |
| Cylinder Material | Cast Iron |
| Dba @ 3 Feet | 85 dBA |
| Dba @ 3 Feet | 85.0 |
| Duty Cycle | Continuous |
| Enclosure Rating | NEMA 1 |
| Enclosure Type | Open Dripproof |
| Finish | Powder Coating |
| Free Air Cfm @ Max. Pressure | 14 CFM |
| Free Air Cfm @ Max. Pressure | 14 |
| Free Air Flow Rate @ Max. Pressure | 14.3 CFM |
| Frequency | 60 Hz |
| Included | Manual Drain Valve, Motor Starter, Pressure Gauge, Pressure Safety Valve |
| Inlet Size | 1/2" |
| Input Voltage | 480V AC |
| Life Expectancy | 15000 hrs. |
| Lubrication Type | Splash Lubricated |
| Max. Operating Pressure | 175 psi |
| Max. Pressure | 175 psi |
| Max. Speed | 1575 RPM |
| Motor Type | Open Dripproof |
| No. Of Stages | 2 |
| Off Pressure Switch Setting | 175 psi |
| Off Pressure Switch Setting | 175 |
| On Pressure Switch Setting | 140 |
| On Pressure Switch Setting | 135 psi |
| Outlet Gender | Female |
| Outlet Size | 1/2" |
| Outlet Type | NPT |
| Output Power | 5 hp |
| Overall Height | 68 1/2" |
| Overall Length | 37.12" |
| Overall Width | 24" |
| Phase | 3 |
| Pump Location | Top Mount |
| Pump Oil Capacity | 1 qt. |
| Pump Oil Capacity | 32 fl. oz. |
| Pump Rpm | 3450 |
| Pump Speed | 3450 RPM |
| Pump Style | Simplex |
| Pump Type | Reciprocating |
| Sound Level | 85 dBA |
| Tank Size | 80 gal. |
| Tank Style | Vertical |
| Tank Type | Vertical |
Shipping Info:
| Ship weight (kg) | 240.3 |
| Ship height (cm) | 173.99 |
| Ship length (cm) | 94.28 |
| Ship width (cm) | 60.96 |
| HS code | 8414801615 |
| Country of Origin | US |
Product Details:
- ASME Tank (Yes)
Product Variants
| Product | Model | Phase | Overall Width | Amps | Free Air Cfm @ Max. Pressure | Overall Height | Pump Oil Capacity | Input Voltage | Tank Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2475N7.5-V-230/3 | 3 | 24" | 22A | 24 CFM | 70" | 41.6 fl. oz. | 240V AC | 80 gal. | €4,967.22 | |
 |
2475N7.5-V-460/3 | 3 | 24" | 11A | 24 CFM | 70" | 41.6 fl. oz. | 480V AC | 80 gal. | €5,115.83 | |
 |
2340L5-V-230/3 | 3 | 20" | 12.3A | 14 CFM | 69" | 32 fl. oz. | 230V AC | - | €3,080.10 | |
|
2340L5-V-460/3 | 3 | 20" | 7.6A | 14 CFM | 69" | 32 fl. oz. | 460V AC | - | €3,058.52 | |
 |
2475N7.5-P-230/3 | 3 | 24" | 22A | 24 CFM | - | 41 oz. | - | 80 gal. | €5,343.43 | |
|
2475N7.5-P-460/3 | 3 | 24" | 9.18A | 24 CFM | 70" | 41.6 fl. oz. | 480V AC | 80 gal. | €5,723.69 | |
 |
2545K10-P-230/3 | 3 | 30" | 24.4A | 35 CFM | 76" | 2.3 qt | 240V AC | 120 gal. | €11,705.12 |
