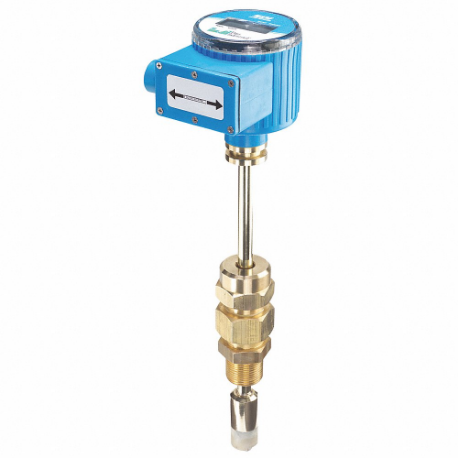

IMPELLER SDI1D2N11-0200 Electronic Flowmeter, 12 Inch To 36 Inch For Pipe Size, Insertion, -4 Deg To 150 Deg F
Item: CR4MUAModel: SDI1D2N11-0200Cross Ref: 49DF27
7 In Stock
Ships within 2 days via
€2,045.60 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electronic Flowmeter |
| Accuracy | -1% to +1% |
| Compatible Flow Material | Water |
| Connection Size | 36" |
| Connection Type | Insertion |
| Display Type | LCD |
| Display Units | Programmable |
| Fitting Type | Insertion |
| Flow | 352-63452 GPM |
| Flow Rate | 1-20 GPM , 352-63452 GPM |
| Flowmeter Type | Paddlewheel |
| Fluid Connection | 36" INSERTION |
| Fluid Temp. | -4°F to +150°F |
| For Pipe Size | 12" to 36" |
| Housing Material | Stainless Steel |
| Included Flow Rate Adjustment Knob | No |
| Included Pressure Gauge | No |
| Included Totalizer | Yes |
| Max. Flow Rate | 20 GPM |
| Max. Frequency | 800 Hz |
| Max. Media Temp. | 150°F |
| Max. Operating Pressure | 1000 psi |
| Max. Viscosity | 32.6 SUS |
| Max. Voltage | 35V DC |
| Media Temp. | -4°F to +150°F |
| Min. Flow Rate | 1 GPM |
| Min. Frequency | Not Applicable |
| Min. Media Temp. | -4°F |
| Mounting Location | Insertion |
| Mounting Orientation | Horizontal |
| O-ring Material | Viton |
| Output Type | 4-20 mA |
| Product Type | Flow Sensor |
| Pulse Rate | Not Applicable |
| Rotor Material | Stainless Steel |
| Seal Material | Viton |
| Sensor Type | Paddle Wheel |
| Shaft Material | Tungsten Carbide |
| Type | Impeller |
| Unit Of Measure | Gallons |
| Wetted Material Grade | Alloy Steel, Brass, Brass , Grade B16, Grade C360 |
Shipping Info:
| Ship weight (kg) | 3.51 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Flow Rate | Connection Size | Connection Type | Min. Flow Rate | Max. Operating Pressure | Max. Viscosity | Max. Media Temp. | Min. Media Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DEFMTR | 26.42 GPM | - | - | - | - | - | 122°F | - | €478.47 | |
 |
SM2001 | 160 GPM | 2" | BSPP | 1.3 GPM | 232 psi | 70 SUS | 158°F | 14°F | €1,736.09 | |
 |
SM9001 | 80 GPM | 2" | BSPP | 1.3 GPM | 232 psi | 70 SUS | 158°F | 14°F | €1,699.86 | |
 |
SM8001 | 26.4 GPM | 1" | BSPP | 0.1 GPM | 232 psi | 70 SUS | - | - | €1,504.85 | |
 |
SM6001 | 6.6 GPM | 1/2" | BSPP | 0.03 GPM | 232 psi | 70 SUS | 158°F | 14°F | €1,257.28 | |
|
SM6004 | 25 LPM | 1/2" | BSPP | 0.03 GPM | 232 psi | 70 SUS | 70°C | -10°C | €1,187.63 | |
 |
SM7004 | 50 LPM | 3/4" | BSPP | 0.02 GPM | 232 psi | 70 SUS | 70°C | -10°C | €1,202.68 |
