RUD CHAIN

See our 843 reviews on

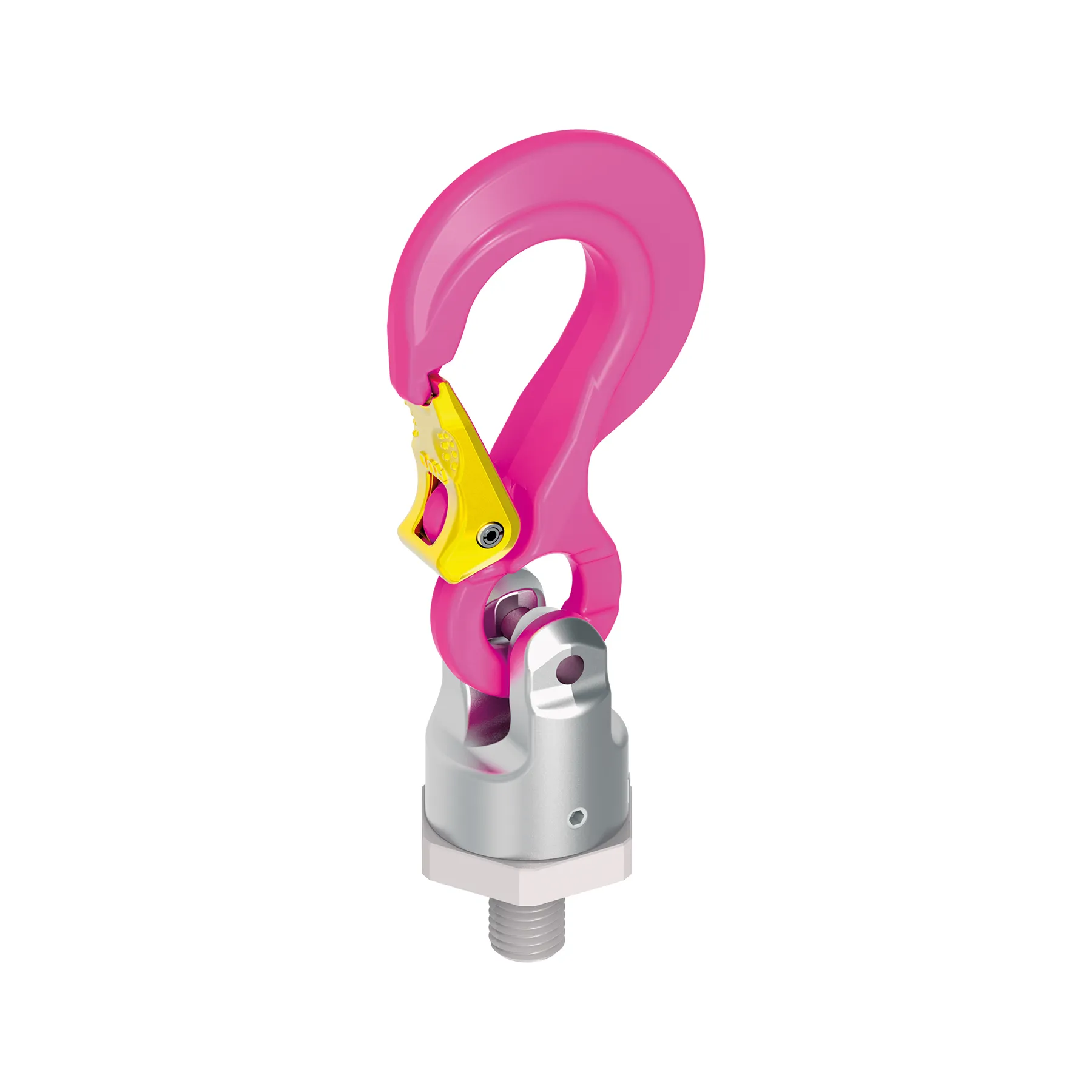

RUD CHAIN PP-S PowerPoint Universal Connections, Inch

Item: AB2KPQ
Model: 7990720
Cross Ref: PP-S 0.63t 1/2 -13UNC
Check Availability
In Stock

Get it by Dec 31, Wednesday

Thread Size
€511.54 /unit (ex. VAT)
Add To Cart
Request Quote

Payment

Delivery

  • Specifications
  • Shipping Information

Specifications

Item Hoist Ring
Bail Dia. 1/2"
Bail Inside Length 3/4"
Bail Inside Width 3/4"
Bail Thickness 1/2"
Color Pink
Finish Powder Coated
Hoist Ring Type Pivot, Swivel
Installation Torque 7.4 lbs.-ft.
Load Capacity 1260 lbs.
Material Steel
Max. Operating Temp. 752°F
Mfr. Series PP-S Series
Min. Operating Temp. -40°F
Minimum Installation Torque 7.4 lbs.-ft.
Mount Type Screw On
Mounting Style Screw On
Operation Lifting
Overall Length 5 3/4"
Overall Width 1 5/8"
Pivot 230°
Pivot Angle 230°
Rotate Angle 360°
Standards Ce Certified, Complies With The Machinery Directives 2006/42/Eg, Dguv Test Oa 1451017
Swivel Angle 360°
System Of Measurement Imperial
Thread Projection 1/2"
Thread Size 1/2"-13
Usable Thread Length 1/2"
Working Load Limit 1260 lbs.

Shipping Information

Height (cm) 5.51
Length (cm) 42.01
Width (cm) 10.01
HS Code 7326908588
Country Of Origin DE
Weight (kg) 0.4
