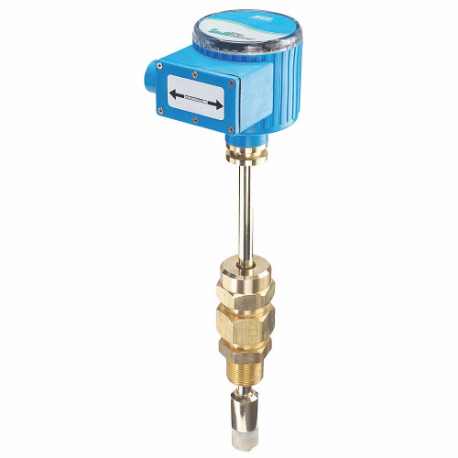

IMPELLER SDI1D2N10-0200 Electronic Flowmeter, 12 Inch To 36 Inch For Pipe Size, Insertion, 14 Deg To 150 Deg F
Item: CR4MTWModel: SDI1D2N10-0200Cross Ref: 49DF28
7 In Stock
Ships within 2 days via
13.00% off
€1,601.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electronic Flowmeter |
| Accuracy | -1% to +1% |
| Compatible Flow Material | Water |
| Connection Size | 36" |
| Connection Type | Insertion |
| Display Type | Not Applicable |
| Fitting Type | Insertion |
| Flow | 352-63452 GPM |
| Flow Rate | 1-20 GPM , 352-63452 GPM |
| Flowmeter Type | Paddlewheel |
| Fluid Connection | 36" INSERTION |
| Fluid Temp. | +14°F to +150°F |
| For Pipe Size | 12" to 36" |
| Housing Material | Stainless Steel |
| Included Flow Rate Adjustment Knob | No |
| Included Pressure Gauge | No |
| Included Totalizer | Yes |
| Max. Flow Rate | 20 GPM |
| Max. Frequency | 800 Hz |
| Max. Media Temp. | 150°F |
| Max. Operating Pressure | 1000 psi |
| Max. Viscosity | 32.6 SUS |
| Max. Voltage | 35V DC |
| Media Temp. | 14°F to 150°F |
| Min. Flow Rate | 1 GPM |
| Min. Frequency | Not Applicable |
| Min. Media Temp. | 14°F |
| Mounting Location | Insertion |
| Mounting Orientation | Horizontal |
| O-ring Material | Viton |
| Output Type | 4-20 mA |
| Product Type | Flow Sensor |
| Pulse Rate | Not Applicable |
| Rotor Material | Stainless Steel |
| Seal Material | Viton |
| Sensor Type | Paddle Wheel |
| Shaft Material | Tungsten Carbide |
| Type | Impeller |
| Unit Of Measure | Gallons |
| Wetted Material Grade | Alloy Steel, Brass, Brass , Grade B16, Grade C360 |
Shipping Info:
| Ship weight (kg) | 3.51 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Flow Rate | Min. Flow Rate | Flow Rate | Flowmeter Type | Max. Media Temp. | Min. Media Temp. | Flow | Mounting Orientation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DEFMTR | 26.42 GPM | 0.26 GPM | 0.26-26.42 GPM | Turbine | 122°F | - | - | Universal | €531.63 | |
 |
SM2001 | 160 GPM | 1.3 GPM | 1.3-160 GPM | Electromagnetic | 158°F | 14°F | 1.3-160 GPM | Universal | €1,697.84 | |
 |
SM9001 | 80 GPM | 1.3 GPM | 1.3-80 GPM | Electromagnetic | 158°F | 14°F | 1.3-80 GPM | Universal | €1,662.40 | |
 |
SM8001 | 26.4 GPM | 0.1 GPM | 0.1-26.4 GPM | Electromagnetic | - | - | 0.1-26.4 GPM | Universal | €1,471.71 | |
 |
SM6001 | 6.6 GPM | 0.03 GPM | 0.03-6.6 GPM | Electromagnetic | 158°F | 14°F | 0.03-6.604 GPM | Universal | €1,232.12 | |
|
SM6004 | 25 LPM | 0.03 GPM | 0.03-25 LPM | Electromagnetic | 70°C | -10°C | 0.1-25 GPM | Universal | €1,161.47 | |
 |
SM7004 | 50 LPM | 0.02 GPM | 0.02-5 LPM | Electromagnetic | 70°C | -10°C | 0.2-50 GPM | Universal | €1,176.17 |
