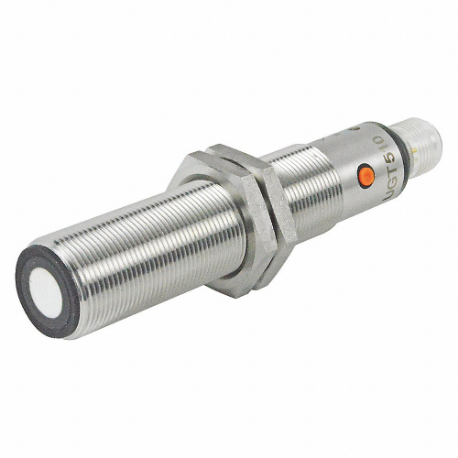

IFM UGT513 Ultrasonic Sensor, M18, DC, 200-2200 mm
Item: CR4MAZModel: UGT513Cross Ref: 62UN11
7 In Stock
Ships within 2 days via
10.00% off
€344.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sensor |
| Analog Output Signal | 4-20 mA |
| Body Finish | Epoxy Glass Ceramic |
| Body Material | Stainless Steel |
| Body Stainless Steel Grade | Grade 316L |
| Display Qty | 1 |
| Features | Io-Link Compatible, Led Status Indicator, M18 Sensor Body, Set Detection Range Via Pushbutton |
| Housing | Threaded Type |
| Ip Rating | IP67 |
| Load Current - Maximum | 100 mA |
| Nominal Sensor Diameter | M18 Threaded |
| Number Of Analogue Outputs | 1 |
| Number Of Digital Outputs | 1 |
| Number Of Pins | 4 |
| Operating Frequency | 200 kHz |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -4°F |
| Output Circuit Contact Form | NO/NC |
| Output Circuit Current - Maximum | 20 mA |
| Output Circuit Current - Minimum | 4 mA |
| Output Circuit Type | PNP |
| Output Circuit Voltage - Maximum | 2.2V DC |
| Overload Protection | Yes |
| Required Master Port Type | A |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Response Time | 400 ms |
| Reverse Polarity Protection | Yes |
| Sensing Distance - Maximum | 220cm |
| Sensing Distance - Minimum | 20cm |
| Sensor Body Style | Cylindrical |
| Sensor Connector Type | M12 |
| Sensor Diameter | 18 mm |
| Sensor Face Orientation | Straight |
| Sensor Height | 98 mm |
| Series | UG ULTRASONIC Series |
| Short-circuit Protection | Yes |
| Sio Mode | Yes |
| Supply Voltage Rating | 10-30V DC |
| Switching Frequency | 2 Hz |
| Teach Function | Yes |
| Temperature Compensation | Yes |
| Tightening Torque | 50 |
| Total Number Of Outputs | 2 |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Response Time | Number Of Digital Outputs | Ip Rating | Operating Frequency | Body Material | Number Of Pins | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |

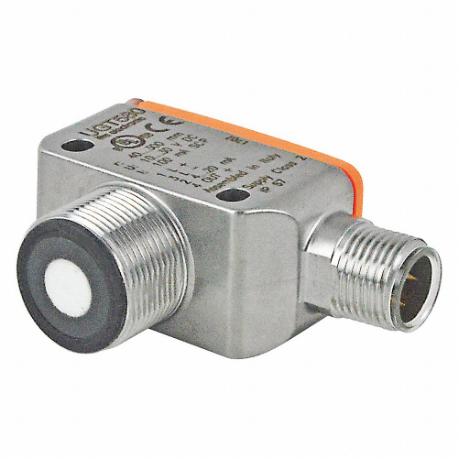

UGT584 | 450 ms | 1 | IP67 | 200 kHz | Stainless Steel | 4 | €319.74 |
