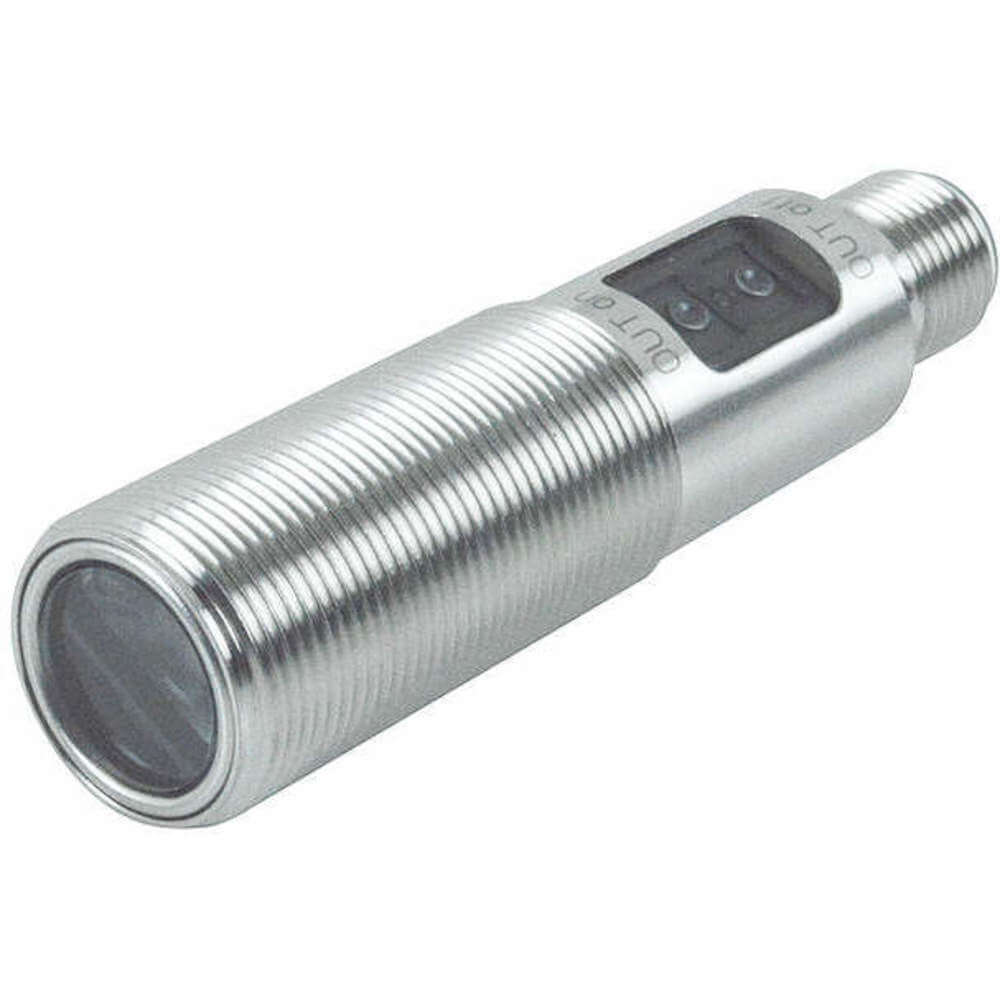

IFM OGT500 Photoelectric Sensor Cylindrical Diffuse
Item: AH8ZXBModel: OGT500Cross Ref: 39DU07
7 In Stock
Ships within 2 days via
10.00% off
€185.56 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cylindrical Photoelectric Sensor |
| Body Material | Stainless Steel |
| Circuit Type | PNP |
| Dc Supply Voltage Rating | 10-36V DC |
| Diameter | 18 mm |
| Diameter - Cylindrical Photoelectric Sensor | 18 mm |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Direct Connector |
| Electronic Lock | Yes |
| Emitted Sensor Light | Red Light |
| Grade | Grade 316L |
| Housing | Threaded Type |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67 |
| Length | 72" |
| Length - Cylindrical Photoelectric Sensor | 72 mm |
| Light Source | LED |
| Light Source | Red LED |
| Light Spot Dimensions Refer To | At Maximum Range |
| Max. Load Amps | 200 mA |
| Max. Load Current | 200mA |
| Max. Sensing Distance | 800mm |
| Max. Sensing Distance | 800 mm |
| Min. Object Size | 66mm Dia. Light Spot |
| Minimum Object Size | 66 mm Dia. Light Spot |
| Nema Rating | IP67 |
| Number Of Pins | 4 |
| Operating Frequency | 2000 Hz |
| Operating Mode | Selectable Light On/Dark On |
| Operating Temp. Range | -25°C to +80°C |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | PNP |
| Output Circuit Type | PNP |
| Overall Height | 72 mm |
| Overload Protection | Yes |
| Power Requirement | 10-36V DC |
| Product Type | Photoelectric Sensor |
| Range Adjustable | Yes |
| Reverse Polarity Protection | Yes |
| Sensing Distance - Minimum | 2 mm |
| Sensing Method | Diffuse |
| Sensing Method - Cylindrical Photoelectric Sensor | Diffuse |
| Sensor Body Style | Cylindrical |
| Sensor Diameter | 18 mm |
| Sensor Face Orientation | Right Angle |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Shape | Cylindrical |
| Short-circuit Protection | Yes |
| Standards | Ce, Culus, Ukca |
| Style | Cylindrical Photoelectric Sensor |
| Supply Voltage | 10-36V DC |
| Supply Voltage Type | Dc Only |
| Switching Frequency | 2 kHz |
| Teach Function | Yes |
| Type Of Light | Red Light |
| Type Of Short-circuit Protection | Pulsed |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 10.16 |
| Country of Origin | DE |
